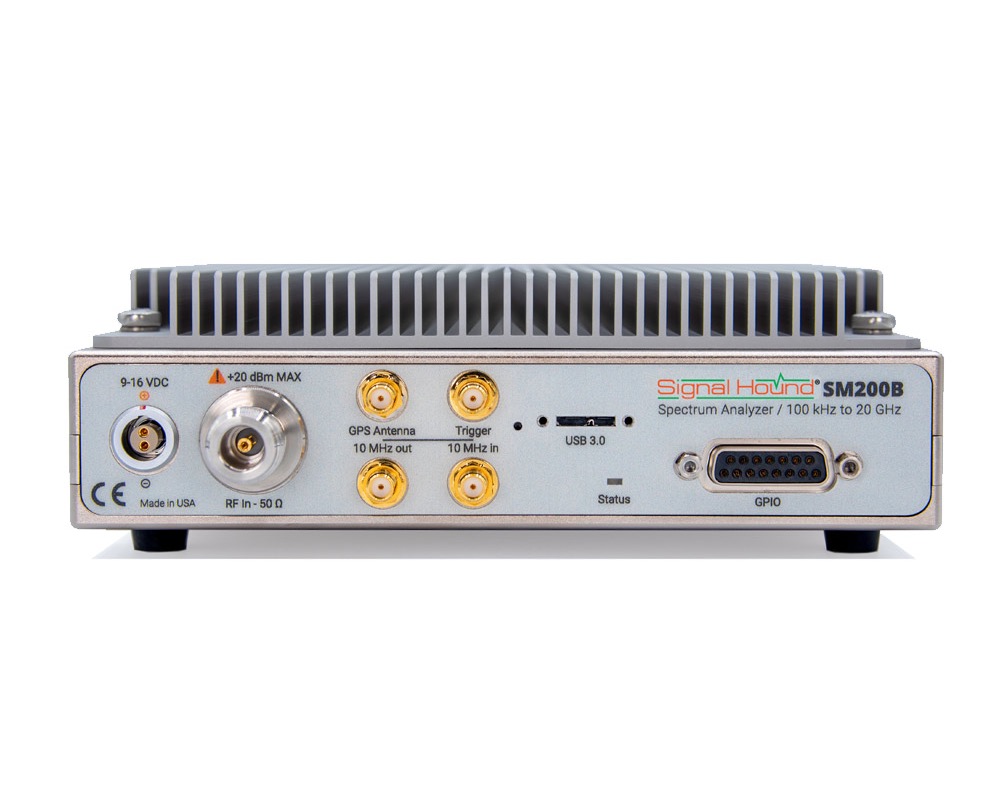

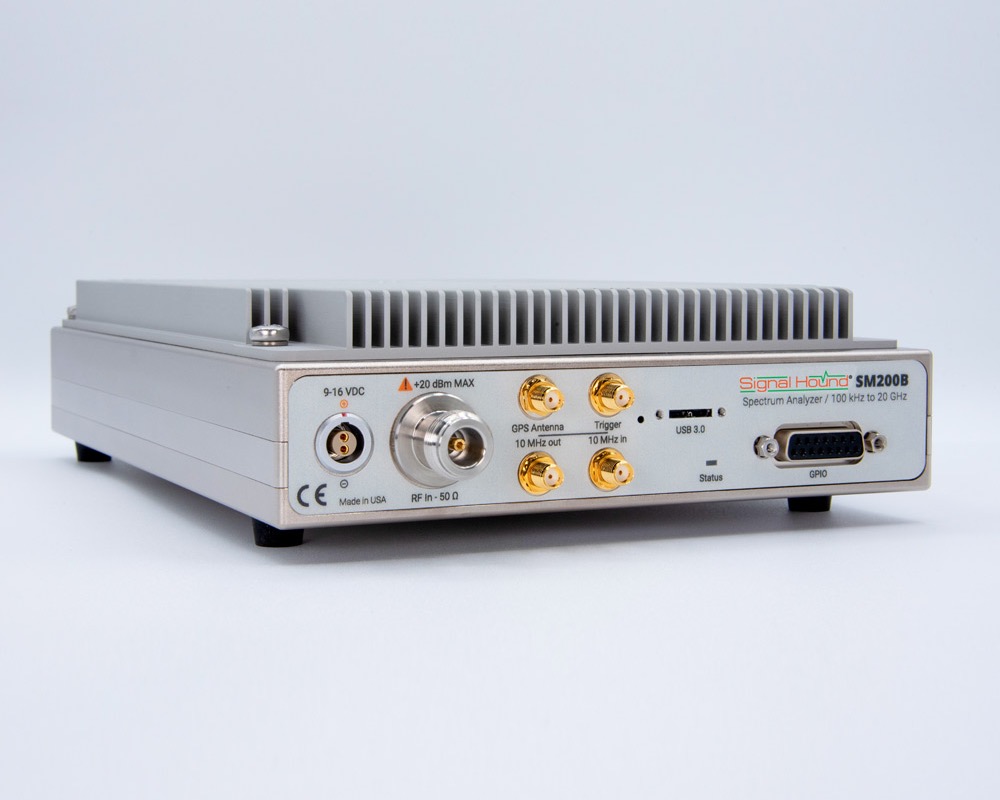

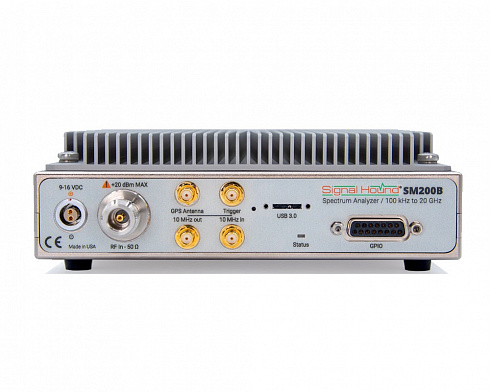

Анализатор спектра реального времени
Signal Hound SM200B
с диапазоном от 100 кГц до 20 ГГц
Signal Hound SM200B
с диапазоном от 100 кГц до 20 ГГц
Подробнее
Описание
SM200B – быстродействующий анализатор спектра реального времени с широким динамическим диапазоном, низким уровнем собственных фазовых шумов и функцией мониторинга спектра. Соединение с компьютером пользователя осуществляется по высокоскоростной шине USB3.0 SuperSpeed. Устройство имеет ширину полосы анализа 160 МГц в реальном времени, 40 МГц – в режиме записи данных, диапазон рабочих частот от 100 кГц до 20 ГГц и скорость сканирования 1 ТГц/с при полосе RBW 30 кГц. Оцифровка происходит со скоростью миллиард выборок в секунду. Анализатор спектра SM200B использует опорный генератор OCXO 100 МГц с очень низкими фазовыми шумами. SM200B имеет высокое значение показателя IP3 и низкий отображаемый средний уровень шумов (DANL), позволяющие пользователю исследовать спектр сигнала с достаточной чувствительностью и без проблем с дополнительными интермодуляционными спектральными составляющими. SM200B имеет встроенный приемник системы GPS для простановки временных меток в анализируемых сигналах.
Характеристики
| Frequency Range | 100 kHz to 20.0 GHz | ||
| RF Input Impedance | 50 Ω: type-N connector | ||
| Calibrated Streaming | I/Q: 5 kHz to 40 MHz of selectable I/Q bandwidth | ||
|
Resolution Bandwidths (RBW) |
0.1 Hz (≤200kHz span) to 3 MHz (any span) using 40 MHz IBW 30 kHz to 10 MHz using 160 MHz IBW |
||
| Timebase Accuracy |
GPS disciplined OCXO remains within ±5 x 10-10 when locked to GPS Standard: holdover of ±5 x 10-9 /day for aging (±2 x 10-8 first day typical) Option 1: holdover of ±1 x 10-8 for temperature over -40°C to 65°C typical |
||
|
System Noise Figure (Typical) |
11 dB over 700 MHz to 2.7 GHz 14 dB from 2.7 GHz to 4.5 GHz 18 dB from 4.5 GHz to 15 GHz |
||
| IP2 |
+64 dBm from 100 kHz to 2 GHz +74 dBm from 2 GHz to 11 GHz +76 dBm from 11 GHz to 15 GHz +60 dBm from 15 GHz to 20 GHz |
||
| IP3 |
+28 dBm from 100 kHz to 4 GHz +23 dBm from 4 GHz to 6 GHz +18 dBm from 6 GHz to 14 GHz +23 dBm from 14 GHz to 20 GHz |
||
|
SSB Phase Noise at 1 GHz Center Frequency |
Offset Frequency 10 Hz 100 Hz 1 kHz 10 kHz 100 kHz 1 MHz |
dBc/Hz -76 -108 -123 -132 -136 -133 |
|
| Sweep Speed |
Speed 1 THz/sec 1 THz/sec 1 THz/sec 160 GHz/sec 18 GHz/sec |
RBW 1 MHz 100 kHz 30 kHz 10 kHz 1 kHz |
|
|
Amplitude Accuracy (+10 dBm to Display Average Noise Level (DANL)) |
100 kHz to 6 GHz ±2 dB +2 dB/–2.6 dB |
6 GHz to 20 GHz ±3 dB +3/–3.6 dB |
RBW filter shape Flat-Top windowing Nuttall windowing |
|
Display Average Noise Level (DANL) |
Input Frequency 100 kHz to 700 MHz 700 MHz to 2.7 GHz 2.7 GHz to 4.5 GHz 4.5 GHz to 8.5 GHz 8.5 GHz to 15 GHz 15 GHz to 20 GHz |
Range dBm/Hz (Typical) –156 dBm –160 dBm –158 dBm –153 dBm –154 dBm –149 dBm |
|
|
Residual Responses REF Level ≤ –20 dBm, 0 dB Attenuation, 50 Ω load on RF input |
Input Frequency 100 kHz to 80 MHz 80 MHz to 15 GHz 15 GHz to 20 GHz |
Range Residual Level –110 dBm –100 dBm –90 dBm |
|
| LO Leakage @ RF Input: |
–82 dBm from 100 kHz to 5 GHz –55 dBm from 5 GHz to 10 GHz –50 dBm from 10 GHz to 18 GHz –47 dBm from 18 GHz to 20 GHz |
||
| Sub-octive Preselector Filters | 20 MHz to 20 GHz | ||
|
Spurious Mizer Responses (any ref level (RL from +10 dBm to –20 dBm, in 5 dB increments, input 10 dB less than RL, RBW≤30kHz, IBW ≤40MHz) |
Input Freq. Range 100 kHz to 6 GHz 6 GHz to 10 GHz 10 GHz to 20 GHz |
Image Reject Off –58 dBc –55 dBc –44 dBc |
Image Reject On –75 dBc (typical) –75 dBc (typical) –75 dBc (typical) |
| Note: Signal ID can be activated and deactivated, by toggling the F3 key on keyboard, to allow low level mixer spurs to be differentiated from RF Input signals. | |||
| System Requirements |
Intel i7, 3rd generation or later with a quad core processor, one USB 3.0 port. Note: RF recording using streaming I/Q bandwidths > 8 MHz requires the computer’s mass storage drive to have at least 250 MB/sec of sustained write speed such as an SSD, RAID-0, or RAID-5. |
||
| Connectivity | Local external computer with Microsoft Windows and a USB 3.0 port is required to operate the SM200B (minimum of Intel 3rd Gen i7 processor or equivalent equipped with SSD for rapid mass data storage during IQ recording). | ||
| GPIO Port | Used for antenna switching and in/out triggering. | ||
| Synchronization | GPS data in each packet with ± 40ns time-stamping. | ||
| Operating Temperature (Ambient) |
Standard: (passive cooling) 32°F to 122°F (0°C to +50°C) Option-1: (active cooling & extended temperature) –40°F to 149°F (–40°C to +65°C) |
||
| FPGA | Intel 10AX027 has 1660 multipliers, provides selectable decimation, 160 MHz ofinstantaneous bandwidth from FFT processing W/ resources to spare for future growth. | ||
| Size and Weight |
Standard: 10.2" x 7.2" x 2.15" (259mm x 183mm x 55mm) passive cooling 7.77 lbs. (3.52 kg) passive cooling plus 0.90 lbs. (0.41 kg) for AC power module and AC power cord. Option-1: 10.2" x 7.2" x 2.80" (259 mm x 183 mm x 71 mm) active cooling 9.13 lbs.(4.14 kg) active cooling plus 1.43 lbs. (0.65 kg) for AC power module and AC power cord. |
||
| Power Consumption | 17 watts (when idling) or ≤32 watts (when sweeping or streaming I/Q) sourced from the AC wall adapter which is included or from an external supply of 9VDC to 16VDC whenusing the Option-12 LEMO Pigtail. | ||
