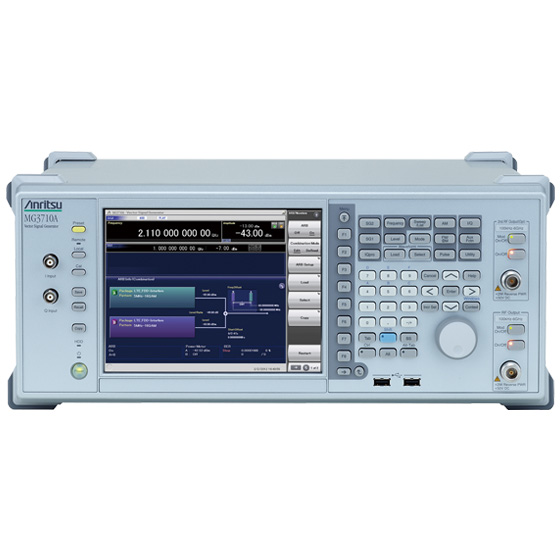

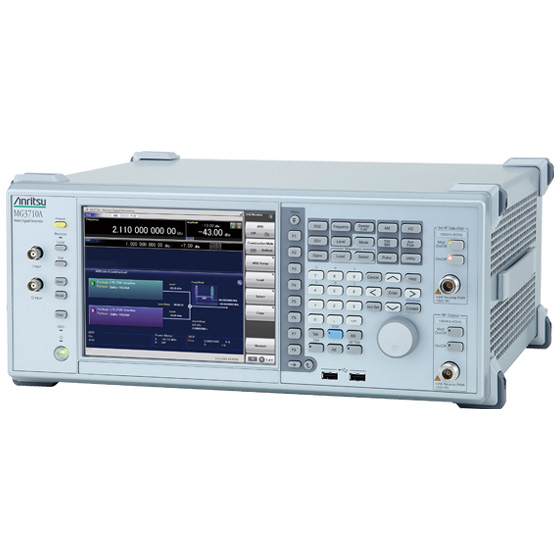

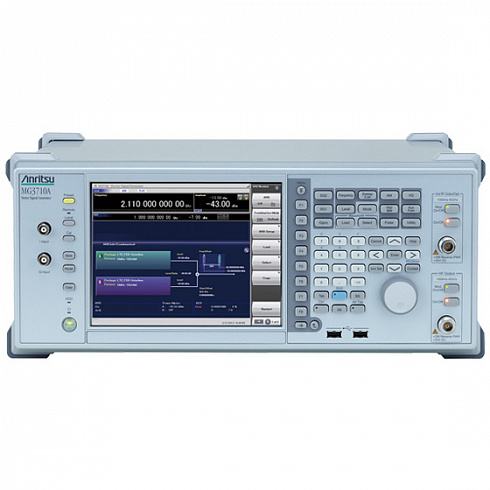

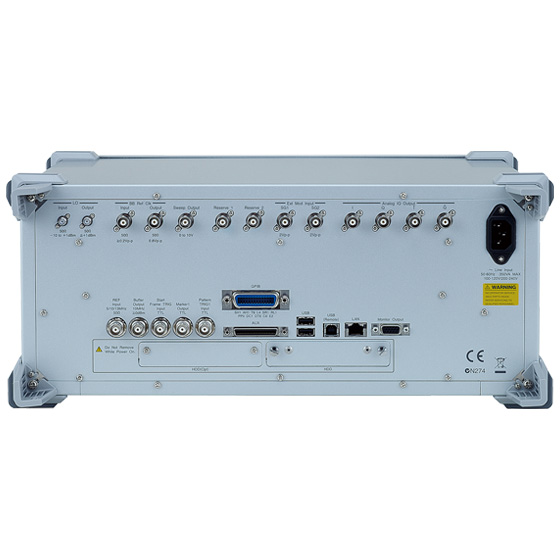

Anritsu MG3710A

Векторный 2-х канальный генератор СВЧ-сигналов Anritsu MG3710A

Подробнее

Описание

Vector Signal Generator supporting frequencies of 100 kHz to 2.7/4/6 GHz

ACLR: -71 dBc (W-CDMA, Test-Model 1, 64DPCH, ≤+5 dBm)

Output level +23 dBm (CW, 400 MHz to 3 GHz)

Switching Time: <600 µs (List/Sweep mode)

Built-in wideband (160 MHz/120 MHz) baseband signal generator

Dual RF (Optional) provides two independent RF outputs

Dual Waveform Memory (Optional) enables two independently modulated signals per RF Output

Generate and output modulation signals of various communication systems such as 5G NR (sub-6 GHz), LTE-Advanced FDD / TDD (Optional) UPDATED

Solution page:

5 GHz Band WLAN Device DFS Tests

The Vector Signal Generator MG3710A is a best-of-class, multi-function, signal generator with excellent RF and baseband performance. The MG3710A features wideband vector modulation and offers built-in baseband waveform generation with large-capacity memory to ensure maximum versatility. It supports all key mobile communications and wireless LAN standards, and it also has the exceptional performance required for emerging and proprietary wireless communications technologies. Dual RF and Dual Waveform options enable a single MG3710A to output up to four independently modulated signals. The MG3710A makes it easy to implement complex test scenarios that would normally require multiple synchronized signal generators, such as:

Wanted + Interference Signals for Receiver Blocking Testing

Wanted + Two CW Tones for Receiver Intermodulation Testing

Wanted + Delayed Signals for Multipath Testing

Multiple Wanted Signals for MIMO Testing

Multiple Wanted Signals for LTE-Advanced Carrier Aggregation Testing

For these multi-signal applications, the MG3710A eliminates the cost of extra signal generators, simplifies equipment setup and calibration, streamlines system operations and speeds measurement times.

The following four types of waveform pattern can be used with the MG3710A

Built-in standard waveform patterns

Optional waveform patterns (sold separately) (MX3700xxA, MX3700xxB NEW)

Waveforms generated by IQproducer waveform generation software (sold separately) (MX3701xxA)

IQ data generated by general-purpose signal-generation software and converted waveform patterns used by MG3710A

■ Main Performance and Specifications

Basic Performance

Frequency Range	100 kHz to 2.7/4/6 GHz (1stRF Opt-032/034/036) 100 kHz to 2.7/4/6 GHz (2ndRF Opt-062/064/066)
High Power Output	+23 dBm (CW, 400 MHz to 3 GHz)
SSB Phase Noise	<-131 dBc/Hz (typ.) (1 GHz, 20 kHz offset, CW)
ACLR	-71 dBc (W-CDMA, Test-Model 1, 64DPCH, ≤+5 dBm)
Switching Speed	<600 µs (frequency/amplitude, List/Sweep mode)

Baseband Performance

RF Band: Built-in,160 MHz*/120 MHz baseband generator
(*: 802.11ac. Only when using MX370111A and MX370111A-002)

Large 64 Msamples waveform memory with optional expansion to 1024 Msampls

Pre-installed standard waveform patterns
LTE (E-TM1.1 to TM3.3), W-CDMA/HSDPA, GSM/EDGE, CDMA2000 1x/1xEV-DO, Bluetooth, GPS, GLONASS, QZSS,
PDC, PHS, Broadcast (ISDB-T/BS/CS/CATV), WLAN (IEEE802.11a/11b/11g), Mobile WiMAX

Signal generation with waveform generation software (IQproducer)
LTE/LTE-Advanced, WLAN 11a/b/g/n/j/p and 11ac, Mobile WiMAX, W-CDMA/HSPA, CDMA2000 1xEV-DO
TD-SCDMA, Fading, Multi-Carrier, DVB-T/H, TDMA

Expansion Options

AWGN Generator [Opt-049/079]
C/N: ≤40 dB

BER Measurement Function [Opt-021]
Input bit rate: 100 bps to 40 Mbps

USB Power Sensor (sold separately)
Supports connection of two USB power sensors max.
♦ Frequency Range: 50 MHz to 6 GHz [MA24106A], 10 MHz to 18 GHz [MA24118A], 10 MHz to 26 GHz [MA24126A] etc.

MIMO Signal Source: Supports local input [Opt-017]
Baseband clock, local and trigger signals can be shared between up to four MG3710A units to output phase coherency signals
synchronized with the signal output timing for configuring an 8x8 MIMO system.

Additional Analog Modulation Input for 1stRF/2ndRF [Opt-050/080]
Opt-050/080 extends to two internal modulation sources (AM/FM/ΦM) and one external modulation source supporting
simultaneous two-signal modulation.

Communications Interfaces

Standard 1000BASE-T, GPIB, and USB interfaces

Built-in SCPI, MG3700A/MS269xA/MS2830A compatibility modes

Технологии

LTE

WCDMA/HSPA/HSPA evolution

TD-SCDMA

Тестирование базовых станций

Bluetooth

WLAN

WiMAX

IoT (Internet of Things)

Комплектация

Шнур питания

Руководство по эксплуатации

CD-ROM с документацией

Характеристики

Frequency Setting Range
1stRF	MG3710A-032 9 kHz to 2.7 GHz MG3710A-034 9 kHz to 4 GHz MG3710A-036 9 kHz to 6 GHz
2ndRF	MG3710A-062 9 kHz to 2.7 GHz MG3710A-064 9 kHz to 4 GHz MG3710A-066 9 kHz to 6 GHz
Switching Speed (List Mode)	Frequency ≤600μs Level ≤600μs
Absolute Level Accuracy (at CW, 18° to 28°C, –110 to +5 dBm)
±0.5 dB (typ.)	(100 kHz ≤ f < 50 MHz)
±0.5 dB	(10 MHz ≤ f ≤ 3 GHz)
±0.7 dB	(3 GHz < f ≤ 4 GHz)
±0.8 dB	(4 GHz < f ≤ 6 GHz)
Harmonics	<–30 dBc
Non-Harmonics	Output level ≤+5 dBm, CW, Frequency offset ≥10 kHz <–62 dBc (100 kHz ≤ f ≤ 187.5 MHz) <–62 dBc (100 kHz ≤ f ≤ 187.5 MHz) <–68 dBc (187.5 MHz < f ≤ 750 MHz) <–62 dBc (750 MHz < f ≤ 1.5 GHz) <–56 dBc (1.5 GHz < f ≤ 3 GHz) <–50 dBc (3 GHz < f ≤ 6 GHz)
Single Sideband Phase Noise (at CW, 20 kHz offset)	<–140 dBc/Hz (nom.) (100 MHz) <–131 dBc/Hz (typ.) (1 GHz) <–125 dBc/Hz (typ.) (2 GHz)
Analog Modulation	Amplitude Modulation Depth: 0 to 100% (Linear) 0 to 10 dB (Log) Modulation Frequency: 0.1 Hz to 50 MHz
Frequency Modulation	Deviation: 0 Hz to 40 MHz Modulation Frequency: 0.1 Hz to 40 MHz, or (50-MHz FM Rate), whichever smaller
Φ-Modulation	Deviation angle: 0 to 160 rad., or (40 MHz/ΦM Rate) rad., whichever smaller
Modulation Frequency:	0.1 Hz to 40 MHz, or (40 MHz/ΦM Deviation), whichever smaller
Pulse Modulation	Modulation Frequency: 0.1 Hz to 10 MHz Modulation Period: 10 ns to 20 s
Dimensions, Weight	177 (H) × 426 (W) × 390 (D) mm
Power Requirements	100 V(ac) to 120 V(ac), 200 V(ac) to 240 V(ac) 50 Hz to 60 Hz

Документы

Anritsu MG3710A Brochure

4.8 Мб

Anritsu MG3710A Configuration Guide

1.3 Мб

Anritsu MG3710A Specification

3 Мб

Anritsu MG3710E MG3710A Configuration Guide

756.4 Кб

Anritsu MX370x MX371x Software Wavefotm Pattern

2.3 Мб

Описание

Опции	Описание
MG3710A-101	Rubidium Reference Oscillator
MG3710A-102	High Stability Reference Oscillator
MG3710A-111	2ndary HDD
MG3710A-117	Universal Input/Output
MG3710A-121	BER Test Function
MG3710A-181	CPU/Windows7 Upgrade Retrofit
MG3710A-118	Analog IQ Input/Output
MG3710A-141	High Power Extension for 1stRF
MG3710A-142	Low Power Extension for 1stRF
MG3710A-143	Reverse Power Protection for 1stRF
MG3710A-145	ARB Memory Upgrade 256 Msample for 1stRF
MG3710A-146	ARB Memory Upgrade 1024 Msample for 1stRF
MG3710A-148	Combination of Baseband Signal for 1stRF
MG3710A-149	AWGN for 1stRF
MG3710A-150	Additional Analog Modulation Input for 1st RF
MG3710A-171	High Power Extension for 2ndRF
MG3710A-172	Low Power Extension for 2ndRF
MG3710A-173	Reverse Power Protection for 2ndRF
MG3710A-175	ARB Memory Upgrade 256 Msample for 2ndRF
MG3710A-176	ARB Memory Upgrade 1024 Msample for 2ndRF
MG3710A-178	Combination of Baseband Signal for 2ndRF
MG3710A-179	AWGN for 2ndRF
MG3710A-180	Additional Analog Modulation Input for 2nd RF
MX370073A	DFS Radar Pattern [For TELEC/FCC]
MX370075A	DFS (ETSI) Waveform Pattern [For ETSI]
MX370084A	ISDB-Tmm Waveform Pattern
MX370101A	HSDPA/HSUPA IQproducer
MX370102A	TDMA IQproducer
MX370103A	CDMA2000 1xEV-DO IQproducer
MX370104A	Multi-carrier IQproducer
MX370105A	Mobile WiMAX IQproducer
MX370106A	DVB-T/H IQproducer
MX370107A	Fading IQproducer
MX370108A	LTE IQproducer
MX370108A-001	LTE-Advanced FDD Option [Requires MX370108A]
MX370110A	LTE TDD IQproducer
MX370110A-001	LTE-Advanced TDD Option [Requires MX370110A]
MX370111A	WLAN IQproducer
MX370111A-002	802.11ac (160 MHz) Option [Requires MX370111A]
MX370112A	TD-SCDMA IQproducer
MG3710A-ES210	2 Years Extended Warranty Service
MG3710A-ES310	3 Years Extended Warranty Service
MG3710A-ES510	5 Years Extended Warranty Service
MG3710A-182	CPU/Windows10 Upgrade Retrofit
MG3710A-271	High Power Extension for 2ndRF Retrofit
MG3710A-276	ARB Memory Upgrade 1024Msample for 2ndRF Retrofit
MG3710A-278	Combination of Baseband Signal for 2ndRF Retrofit
MG3710A-279	AWGN for 2ndRF Retrofit
MG3710A-282	CPU/Windows10 Upgrade Retrofit
MX370073B	DFS Radar Pattern
MX370113A	5G NR TDD sub-6GHz IQproducer
MX370114A	5G NR FDD sub-6GHz IQproducer

Модели

Модели	Описание
MG3710A-032	Vector Signal Generator supporting frequencies of 1stRF 100 кГц - 2.7 ГГц
MG3710A-034	Vector Signal Generator supporting frequencies of 1stRF 100 кГц - 4 ГГц
MG3710A-036	Vector Signal Generator supporting frequencies of 1stRF 100 кГц - 6 ГГц
MG3710A-162	Vector Signal Generator supporting frequencies of 2ndRF 100 кГц - 2.7 ГГц
MG3710A-164	Vector Signal Generator supporting frequencies of 2ndRF 100 кГц - 4 ГГц
MG3710A-166	Vector Signal Generator supporting frequencies of 2ndRF 100 кГц - 6 ГГц
MG3710A	Vector Signal Generator
