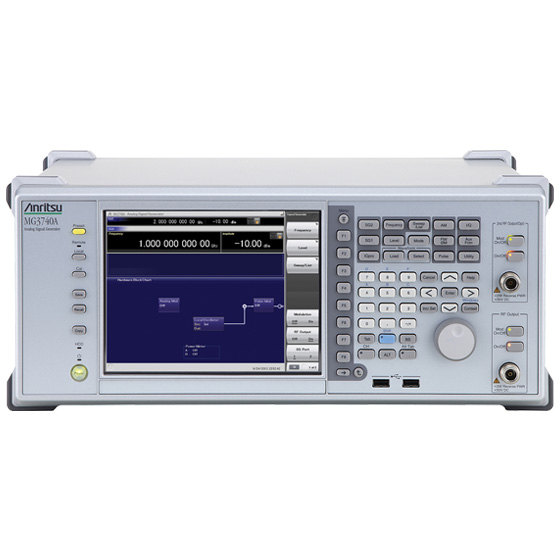

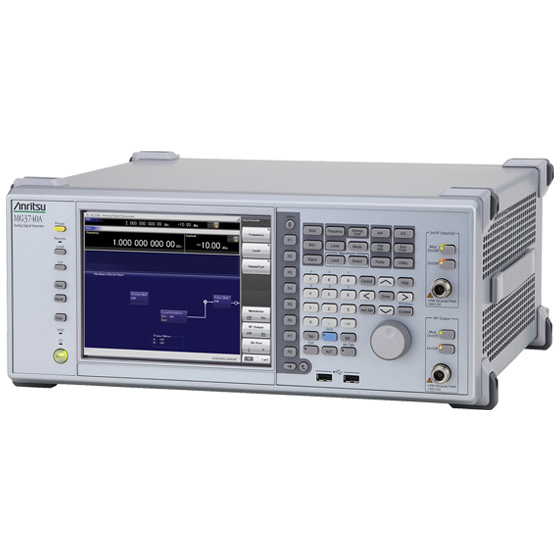

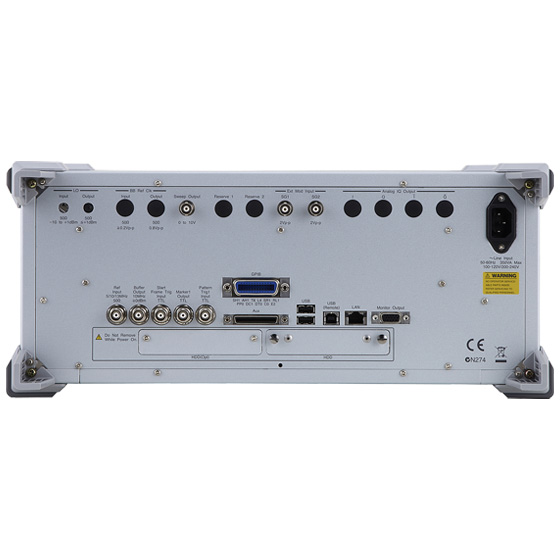

Аналоговый генератор СВЧ-сигналов 2-канальный Anritsu MG3740A
Подробнее
Описание
Генератор сигналов MG3740A - это идеальное решение для применения в качестве источника сигнала высокой чистоты, что часто требуется для тестирования аналоговых радиоприемников. Добавление цифровой модуляции позволяет поддерживать генерацию узкополосных сигналов с цифровой модуляцией. Поддержка сигналов с узкополосной цифровой модуляцией осуществляется на таком же высоком уровне, как и генерация аналоговых непрерывных сигналов и аналоговая модуляция.
Генераторы сигналов MG3740A предоставляет низкий фазовый шум, настраиваемую выходную мощность, спектральную чистоту, скорость свипирования, высокопроизводительную модуляцию, размер, модернизируемость, надежность и потрясающие эксплуатационные характеристики. Эти генераторы легко настраиваются для широкого спектра приложений, от научно-исследовательской деятельности до производства и ремонта.
Возможности генератора сигналов Anritsu MG3740A:
- Быстрая скорость переключения
- Всевозможная аналоговая модуляция
- Высокая выходная мощность
- Легкоконфигурируемый
Basic Performance
| Frequency range |
100 kHz to 2.7/4/6 GHz [1stRF Option] 100 kHz to 2.7/4/6 GHz [2ndRF Option] |
|---|---|
| SSB phase noise |
<-140 dBc/Hz (nom.) (100 MHz, 20 kHz offset, CW) <-131 dBc/Hz (typ.) (1 GHz, 20 kHz offset, CW) |
| Level setting range |
-110 to +17 dBm [Standard] -144 to +17 dBm [Option] |
| High power output | +23 dBm (CW, 400 MHz to 3 GHz) [Option] |
| Switching speed | <600 µs (frequency/amplitude, List/Sweep mode) |
| Built-in AM/FM/ΦM/Pulse modulation function [Standard] | |
Комплектация
Характеристики
| Диапазон частот | от 100 кГц до 2,7 / 4 / 6 ГГц |
|---|---|
| Тип | Настольный |
| Сертификат об утверждении типа СИ | Да |
| Выходная мощность несущей | от -144 до +30 дБм |
| Фазовый шум | -140 дБн/Гц |
Документы
Anritsu MG3740A Спецификация
2.1 Мб
Anritsu MG3740A Brochure
2.8 Мб
Описание
| Опции | Описание |
| MG3740A-001 | Rubidium Reference Oscillator. Remarks: Select when ordering main frame, aging rate: ±1 * 10-10/month |
| MG3740A-002 | High Stability Reference Oscillator. Remarks: Select when ordering main frame, aging rate: ±1 * 10-7/year |
| MG3740A-011 | 2ndary HDD. Remarks: Select when ordering main frame, spare HDD for saving user data without Windows OS |
| MG3740A-017 | Universal Input/Output. Remarks: Select when ordering main frame, Adds BNC connectors for Sweep Output signal (only supports SG1) to rear panel of main frame, includes J1539A AUX Conversion Adapter |
| MG3740A-020 | Digital Modulation. Remarks: Select when ordering main frame, Built-in Digital Modulation function. Digital modulation Performance: - |
| MG3740A-021 | BER Test Function. Remarks: Select when ordering main frame, Built-in BER measurement, Bit Rate: 100 bps to 40 Mbps J1539A AUX Conversion Adapter required for Data/Clock/Enable signal input |
| MG3740A-101 | Rubidium Reference Oscillator Retrofit. Remarks: Retrofitted to shipped MG3740A |
| MG3740A-102 | High Stability Reference Oscillator Retrofit. Remarks: Retrofitted to shipped MG3740A |
| MG3740A-111 | 2ndary HDD Retrofit. Remarks: Retrofitted to shipped MG3740A |
| MG3740A-117 | Universal Input/Output Retrofit. Remarks: Retrofitted to shipped MG3740A |
| MG3740A-120 | Digital Modulation Retrofit. Remarks: Retrofitted to shipped MG3740A |
| MG3740A-121 | BER Test Function Retrofit. Remarks: Retrofitted to shipped MG3740A |
| MG3740A-181 | CPU/Windows7 Upgrade Retrofit. Remarks: Retrofitted to shipped MG3740A This option is for MG3740A units ordered until May 2018. It upgrades the currently installed CPU to a faster CPU and the OS to Windows 7 (WES7). Due to OS license restrictions, this option is not applicable to MG3740A units in which Opt. 313 Removable HDD (sales discontinued) is installed. |
| MG3740A-041 | High Power Extension for 1stRF. Remarks: Select when ordering main frame, increases upper limit of output signal power setting range |
| MG3740A-042 | Low Power Extension for 1stRF. Remarks: Select when ordering main frame, increases lower limit of output signal power setting range |
| MG3740A-043 | Reverse Power Protection for 1stRF. Remarks: Select when ordering main frame, prevents damage caused by reverse input to output connector |
| MG3740A-045 | ARB Memory Upgrade 256 Msample for 1stRF. Remarks: Select when ordering main frame, expands ARB memory capacity. Requires MG3740A-020. |
| MG3740A-048 | Combination of Baseband Signal for 1stRF. Remarks: Select when ordering main frame, adds baseband combine function. Requires MG3740A-020. |
| MG3740A-050 | Additional Analog Modulation Input for 1stRF. Remarks: Select when ordering main frame, Adds BNC connector for inputting external signals to rear panel of mainframe. |
| MG3740A-141 | High Power Extension for 1stRF Retrofit. Remarks: Retrofitted to shipped MG3740A |
| MG3740A-142 | Low Power Extension for 1stRF Retrofit. Remarks: Retrofitted to shipped MG3740A |
| MG3740A-143 | Reverse Power Protection for 1stRF Retrofit. Remarks: Retrofitted to shipped MG3740A |
| MG3740A-145 | ARB Memory Upgrade 256 Msample for 1stRF Retrofit. Remarks: Retrofitted to shipped MG3740A. Requires MG3740A-020/120. |
| MG3740A-148 | Combination of Baseband Signal for 1stRF Retrofit. Remarks: Retrofitted to shipped MG3740A. Requires MG3740A-020/120. |
| MG3740A-150 | Additional Analog Modulation Input for 1stRF Retrofit. Remarks: Retrofitted to shipped MG3740A |
| MG3740A-071 | High Power Extension for 2ndRF. Remarks: Select when ordering main frame, increases upper limit of output signal power setting range |
| MG3740A-072 | Low Power Extension for 2ndRF. Remarks: Select when ordering main frame, increases lower limit of output signal power setting range |
| MG3740A-073 | Reverse Power Protection for 2ndRF. Remarks: Select when ordering main frame, prevents damage caused by reverse input to output connector |
| MG3740A-075 | ARB Memory Upgrade 256 Msample for 2ndRF. Remarks: Select when ordering main frame, expands ARB memory capacity. Requires MG3740A-020. |
| MG3740A-078 | Combination of Baseband Signal for 2ndRF. Remarks: Select when ordering main frame, adds baseband combine function. Requires MG3740A-020. |
| MG3740A-080 | Additional Analog Modulation Input for 2ndRF. Remarks: Select when ordering main frame, Adds BNC connector for inputting external signals to rear panel of mainframe. |
| MG3740A-162 | 2ndRF 100 kHz to 2.7 GHz Retrofit. Remarks: Retrofitted to shipped MG3740A when 2ndRF not installed |
| MG3740A-164 | 2ndRF 100 kHz to 4 GHz Retrofit. Remarks: Retrofitted to shipped MG3740A when 2ndRF not installed |
| MG3740A-166 | 2ndRF 100 kHz to 6 GHz Retrofit. Remarks: Retrofitted to shipped MG3740A when 2ndRF not installed |
| MG3740A-171 | High Power Extension for 2ndRF Retrofit. Remarks: Retrofitted to shipped MG3740A |
| MG3740A-172 | Low Power Extension for 2ndRF Retrofit. Remarks: Retrofitted to shipped MG3740A |
| MG3740A-173 | Reverse Power Protection for 2ndRF Retrofit. Remarks: Retrofitted to shipped MG3740A |
| MG3740A-175 | ARB Memory Upgrade 256 Msample for 2ndRF Retrofit. Remarks: Retrofitted to shipped MG3740A. Requires MG3740A-020/120. |
| MG3740A-178 | Combination of Baseband Signal for 2ndRF Retrofit. Remarks: Retrofitted to shipped MG3740A. Requires MG3740A-020/120. |
| MG3740A-180 | Additional Analog Modulation Input for 2ndRF Retrofit. Remarks: Retrofitted to shipped MG3740A |
| MG3740A-ES210 | 2 Years Extended Warranty Service. |
| MG3740A-ES310 | 3 Years Extended Warranty Service. |
| MG3740A-ES510 | 5 Years Extended Warranty Service. |
| MX370102A | TDMA IQproducer. Remarks: IQproducer software, license for main frame, manual (PDF) |
| MX370107A | Fading IQproducer. Remarks: IQproducer software, license for main frame, manual (PDF) |
| W3580AE | MG3710A/MG3740A Operation Manual (Main Unit). Remarks: Booklet, for MG3710A/MG3740A Main Frame (Operation, Remote Control) |
| W2496AE | MG3710A/MG3740A Operation Manual (IQproducer). Remarks: Booklet, for IQproducer (Operation for Common Parts) |
| W2916AE | MX370102A Operation Manual. Remarks: Booklet, for TDMA IQproducer |
| W2995AE | MX370107A Operation Manual. Remarks: Booklet, for Fading IQproducer |
| Z1572A | Installation Kit. Remarks: Required when retrofitting hardware options or installing IQproducer (MX3701xxA) |
| MA24105A | Inline Peak Power Sensor. Remarks: 350 MHz to 4 GHz, Inline type, with USB A to micro-B Cable |
| MA24106A | USB Power Sensor. Remarks: 50 MHz to 6 GHz, with USB A to mini-B Cable |
| MA24108A | Microwave USB Power Sensor. Remarks: 10 MHz to 8 GHz, with USB A to micro-B Cable |
| MA24118A | Microwave USB Power Sensor. Remarks: 10 MHz to 18 GHz, with USB A to micro-B Cable |
| MA24126A | Microwave USB Power Sensor. Remarks: 10 MHz to 26 GHz, with USB A to micro-B Cable |
| Z0975A | Keyboard (USB) |
| Z0541A | USB Mouse |
Модели
| Модели | Описание |
| MG3740A-032 | 1stRF 100 kHz to 2.7 GHz. Remarks: Select when ordering main frame, select 1stRF frequency range, frequency cannot be changed after installation |
| MG3740A-034 | 1stRF 100 kHz to 4 GHz. Remarks: Select when ordering main frame, select 1stRF frequency range, frequency cannot be changed after installation |
| MG3740A-036 | 1stRF 100 kHz to 6 GHz. Remarks: Select when ordering main frame, select 1stRF frequency range, frequency cannot be changed after installation |
| MG3740A-062/162 | Analog Signal Generator 2ndRF 100 кГц - 2.7 ГГц |
| MG3740A-064/164 | Analog Signal Generator 2ndRF 100 кГц - 4 ГГц |
| MG3740A-066/166 | Analog Signal Generator 2ndRF 100 кГц - 6 ГГц |
| MG3740A | Analog Signal Generator |
