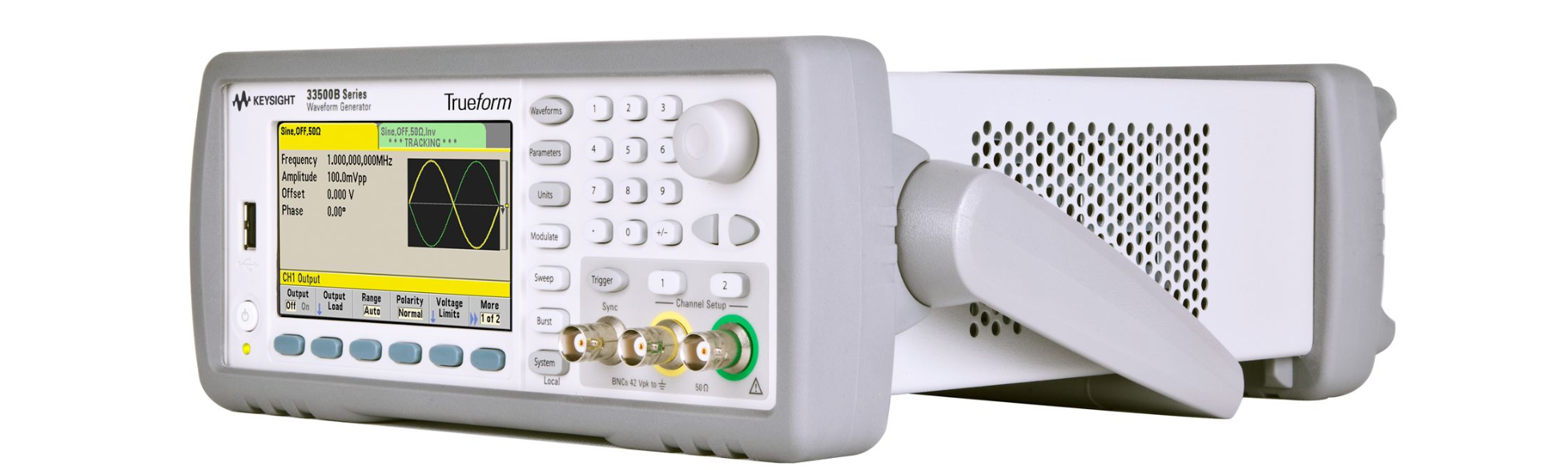

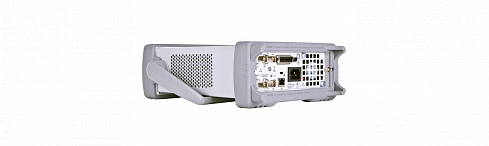

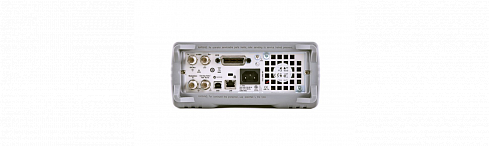

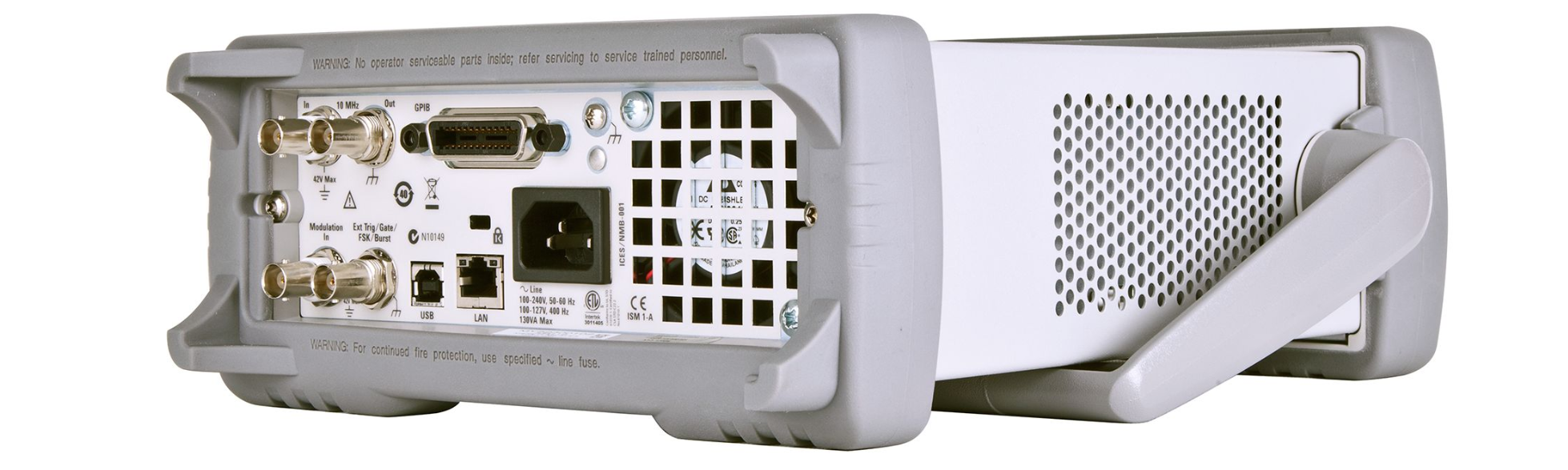

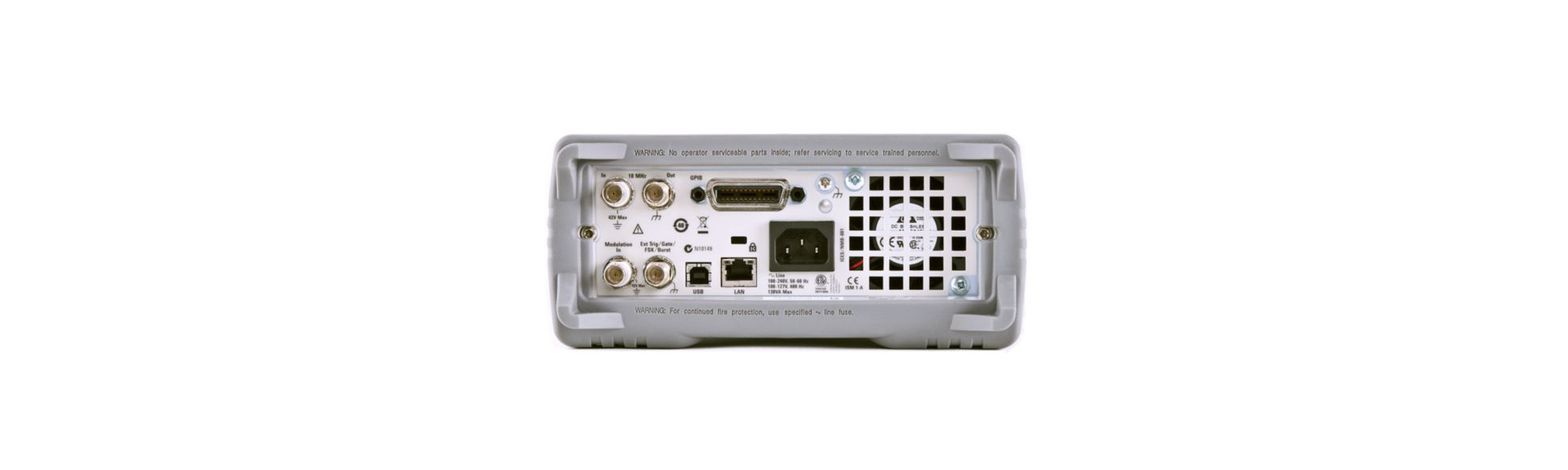

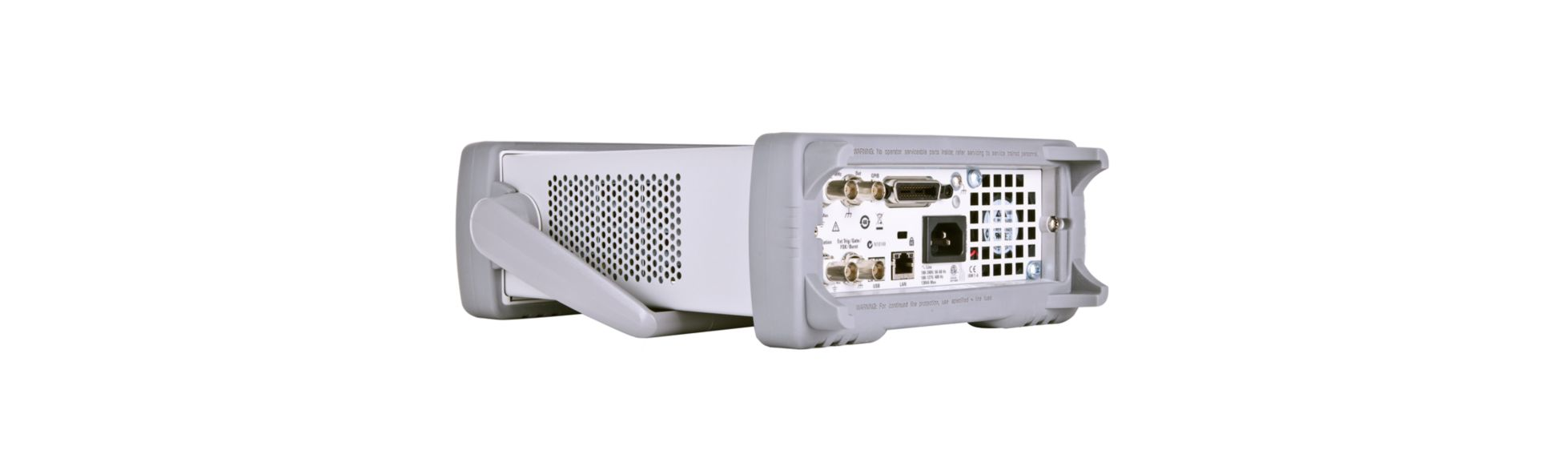

Генераторы сигналов Keysight серии 33500B с возможностью генерации сигналов произвольной формы
Подробнее
Описание
Генераторы серии 33500B с эксклюзивной технологией генерации сигналов Trueform обладают большей функциональностью, точностью и гибкостью, чем традиционные генераторы с прямым цифровым синтезом. Используйте их для ускорения всех этапов процесса разработки.
Доступны восемь новых модернизируемых моделей - 33509B, 33510B, 33511B, 33512B, 33519B, 33520B, 33521B, 33522B - на частотах 20 и 30 МГц, с 1 и 2 каналами с полной набор стандартных функций и дополнительный проигрыватель сигналов I-Q основной полосы частот.
Ключевые особенности
- Превосходная целостность сигнала благодаря технологии Trueform, обеспечивающей высочайшее разрешение и наименьшие искажения
- Возможность выбора необходимой функциональности из восьми новых недорогих моделей с возможностью обновления

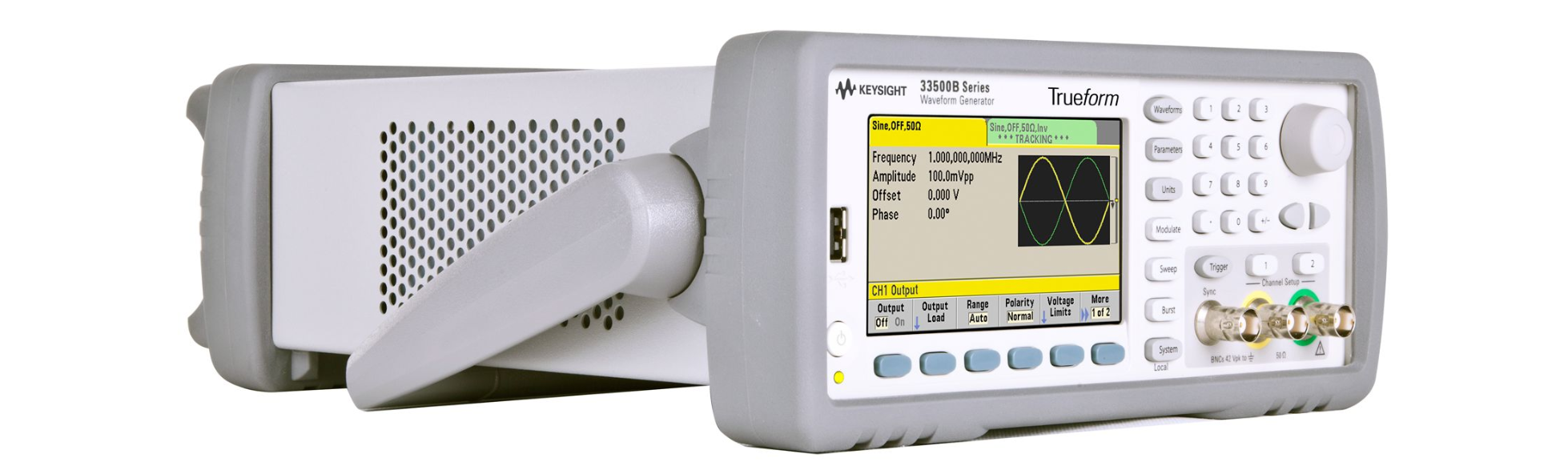

- Превосходный пользовательский интерфейс с интуитивно понятной передней панелью, бесплатное программное обеспечение и локализованные руководства
- Программное обеспечение BenchVue в комплекте
- Синусоидальная и импульсная частота до 30 МГц
- Джиттер: <40 пс
- THD: <0,04%
- Диапазоны амплитуды: от 1 мВ до 10 В (пиковый)
- Частота дискретизации 250 Мвыб / с
- 16-битное разрешение по амплитуде
- 1 MSa / канал памяти, 16 MSa опционально
Характеристики
| Instrument characteristics | |||||||||
| Models & options | |||||||||
| 33509B/11B/19B/21B | 1-channel | ||||||||
| 33510B/12B/20B/22B | 2-channel | ||||||||
| Option MEM | Increases arbitrary waveform memory to 16 MSa/channel* | ||||||||
| Option OCX | OCXO timebase for ultra-high stability | ||||||||
| Option IQP | IQ player (Only available on 33512B and 33522B) | ||||||||
| Waveforms | |||||||||
| Standard | Sine, square, ramp, pulse, triangle, Gaussian noise, PRBS (Pseudorandom Binary Sequence), DC | ||||||||
| Built-in arbitrary* | Cardiac, exponential fall, exponential rise, Gaussian pulse, Haversine, Lorentz, D-Lorentz, negative ramp, sinc | ||||||||
| User-defined arbitrary* | Up to 1 MSa (16 MSa with Option MEM) with multi-segment sequencing | ||||||||
| Operating modes & modulation types | |||||||||
| Operating modes | Continuous, modulate, frequency sweep, burst, output gate | ||||||||
| Modulation types | AM, FM, PM, FSK, BPSK, PWM, Sum (carrier + modulation) | ||||||||
| Waveform characteristics | |||||||||
| Sine | |||||||||
| Frequency range | 1 μHz to 20 MHz or 30 MHz, 1 μHz resolution | ||||||||
|
Amplitude flatness (spec)1, 2 (relative to 1 kHz) |
< 100 kHz: | ± 0.10 dB | |||||||
| 100 kHz to 5 MHz: | ± 0.15 dB | ||||||||
| 5 to 20 MHz: | ± 0.30 dB | ||||||||
| 20 to 30 MHz:** | ± 0.40 dB | ||||||||
| Harmonic distortion (typ) 2, 3 | < 20 kHz: | < -70 dBc | |||||||
| 20 to 100 kHz: | < -65 dBc | ||||||||
| 100 kHz to 1 MHz: | < -50 dBc | ||||||||
| 1 to 20 MHz: | < -40 dBc | ||||||||
| 20 to 30 MHz:** | < -35 dBc | ||||||||
| THD (typ) | 20 Hz to 20 kHz: | < 0.04% | |||||||
| Non-harmonic spurious (typ) 2, 3 |
Standard: < -75 dBc, increasing +20 dB/decade above 2 MHz Option OCX: < -75 dBc, increasing +20 dB/decade above 10 MHz (or < -100 dBm, whichever is greater, below 500 MHz) |
||||||||
| Phase noise (SSB) (typ) | Standard | Option OCX | |||||||
| 1 kHz offset: | -105 | -110 dBc/Hz | |||||||
| 10 kHz offset: | -115 | -125 dBc/Hz | |||||||
| 100 kHz offset: | -125 | -135 dBc/Hz | |||||||
| *Only available on 33511B/12B/21B/22B | |||||||||
| **Only available on 33519B/20B/21B/22B | |||||||||
| NOTE: See page 22 for footnotes 1 through 10 | |||||||||
| Square & pulse | |||||||||
| Frequency range | 1 μHz to 20 MHz or 30 MHz, 1 μHz resolution | ||||||||
| Rise and fall times (nom) | Square: 8.4 ns, fixed Pulse: 8.4 ns to 1 μs, independently variable, 100-ps or 3-digit resolution | ||||||||
| Overshoot (typ) | < 2% | ||||||||
| Duty cycle | 0.01% to 99.99% 8 | ||||||||
| Pulse width | 16 ns minimum, 100-ps resolution | ||||||||
| Jitter (cycle-to-cycle, typ) | < 40 ps rms | ||||||||
| Ramp & triangle | |||||||||
| Frequency range | 1 μHz to 200 kHz, 1 μHz resolution | ||||||||
| Ramp symmetry | 0.0% to 100.0%, 0.1% resolution (0% is negative ramp, 100% is positive ramp, 50% is Triangle) | ||||||||
| Nonlinearity (typ) | < 0.05% from 5% to 95% of the signal amplitude | ||||||||
| Gaussian noise | |||||||||
| Bandwidth (typ) | 1 mHz to 20 MHz or 30 MHz, variable | ||||||||
| Crest factor (nom) | 4,6 | ||||||||
| Repetition period | > 50 years | ||||||||
| Pseudorandom binary sequence (PRBS) | |||||||||
| Bit rate | 1 mbps to 50 Mbps, 1 mbps resolution | ||||||||
| Sequence length | 2m -1, m=7, 9, 11, 15, 20, 23 | ||||||||
| Rise and fall times (nom) | 8.4 ns to 1 μs, variable, 100-ps or 3-digit resolution | ||||||||
| Arbitrary waveform characteristics | |||||||||
| General Waveform length | 8 Sa to 1 MSa per channel (16 MSa with Option OCX) in increments of 1 sample | ||||||||
| Sample rate | 1 μSa∕s to 250 MSa/s, 1 μSa∕s resolution | ||||||||
| Voltage resolution | 16 bits | ||||||||
| Bandwidth (-3 dB, nom) | Filter Off: 40 MHz "Normal" Filter On: 0.27 x (Sample Rate) "Step" Filter On: 0.13 x (Sample Rate) | ||||||||
| Rise and fall time | 0.35 / Bandwidth (10 ns min) with "Normal" or "Step" filter On | ||||||||
| Settling time (typ) | < 200 ns to 0.5% of final value | ||||||||
| Jitter (typ) | Filter Off: < 40 ps rms "Normal" or "Step" filter On: < 5 ps | ||||||||
| IQ Player Characteristics | |||||||||
| Balance Adjust | |||||||||
| Amplitude Gain (channel to channel amplitude balance) | -30% to +30% | ||||||||
| Delta Offset Ch 1 and Ch 2 | ± (5 VDC - Peak AC) into 50 Ω ± (10 VDC - Peak AC) into open circuit | ||||||||
| IQ Signal Skew (adjusts channel to channel skew) | -4.00 ns to +4.00 ns | ||||||||
| Views | |||||||||
| Amplitude vs. Time | |||||||||
| X-Y (constellation diagram) | |||||||||
| Waveform sequencing (Available only on 33511B/12B/21B/22B) | |||||||||
| Operation |
Individual arbitrary waveforms (segments) can be combined into user-defined lists (sequences) to form longer, more complex waveforms. Each sequence step specifies whether to repeat the associated segment a certain number of times, to repeat it indefinitely, to repeat it until a Trigger event occurs, or to stop and wait for a Trigger event. Additionally, the behavior of the Sync output can be specified in each step. To improve throughput, up to 32 sequences totalling up to 1,024 segments can be pre-loaded into volatile memory. |
||||||||
| Segment length | 8 Sa to 1 MSa per channel (16 MSa with Option MEM) in increments of 1 sample | ||||||||
| Sequence length | 1 to 512 steps | ||||||||
| Segment repeat count | 1 to 1x106, or infinite | ||||||||
| Output characteristics | |||||||||
| Isolation | |||||||||
| Outputs | Connector shells for channel output(s), Sync, and Mod In are connected together but isolated from the instrument's chassis. Maximum allowable voltage on isolated connector shells is ±42 Vpk | ||||||||
| Signal output | |||||||||
| Output impedance (nom) | 50 Ω | ||||||||
| On, off, inverted | User-selectable for each channel | ||||||||
| Voltage limit | User-definable VMAX and VMIN limits | ||||||||
| Overload protection | Output turns off automatically when an overload is applied Instrument will tolerate a short-circuit to ground indefinitely | ||||||||
| Amplitude | |||||||||
| Range |
1 mVpp to 10 Vpp into 50 Ω 2 mVpp to 20 Vpp into open circuit |
||||||||
| Resolution | 4 digits | ||||||||
| Units | Vpp, Vrms, or dBm, selectable | ||||||||
| Accuracy 1,2 (spec) | ±1% of setting ±1 mVpp at 1 kHz | ||||||||
| DC offset | |||||||||
| Range 5 | ±(5 VDC - Peak AC) into 50 Ω ±(10 VDC - Peak AC) into open circuit | ||||||||
| Resolution | 4 digits | ||||||||
| Units | VDC | ||||||||
| Accuracy 1,2 (spec) | ±1% of Offset setting ±0.25% of Amplitude setting ±2mV | ||||||||
| Frequency accuracy | |||||||||
| Standard frequency reference (spec) | |||||||||
| 1 year, 23° C ± 5° C | ±1 ppm of setting ± 15 pHz | ||||||||
| 1 year, 0° C to 55° C | ±2 ppm of setting ± 15 pHz | ||||||||
| High-stability frequency reference (spec): Option OCX | |||||||||
| 1 year, 0° C to 55° C | ±0.1 ppm of setting ± 15 pHz | ||||||||
| Modulation types and operating modes | |||||||||
| Carrier | AM | FM | PM | FSK | BPSK | PWM | Sum | Burst | Sweep |
| Sine and Square | • | • | • | • | • | • | • | • | |
| Pulse | • | • | • | • | • | • | • | • | • |
| Triangle and Ramp | • | • | • | • | • | • | • | • | |
| Gaussian Noise | • | • | •a | ||||||
| PRBS | • | • | • | • | • | ||||
| Single ARB* | • | •b | •b | • | • | ||||
| Sequenced ARB* | • | • | |||||||
| a. Gated burst only. b. Applies to sample clock, not whole waveform. | |||||||||
| Modulating signals | |||||||||
| Carrier | Sine | Square | Triangle / Ramp | Noise | PRBS | ARB* | External | ||
| Sine | • | • | • | • | • | • | • | ||
| Square and Pulse | • | • | • | • | • | • | • | ||
| Triangle and Ramp | • | • | • | • | • | • | • | ||
| Gaussian Noise | • | • | • | • | • | • | |||
| PRBS | • | • | • | • | • | • | |||
| ARB* | • | • | • | • | • | • | |||
| * Only applies to 33511B/12B/21B/22B | |||||||||
| Modulation characteristics | |||||||||
| Amplitude modulation (AM) | |||||||||
| Source | Internal or external, or either channel with 2-channel models | ||||||||
| Type | Full-carrier or double-sideband suppressed-carrier | ||||||||
| Depth 1 | 0% to 120%, 0.01% resolution | ||||||||
| Frequency modulation (FM) 7 | |||||||||
| Source | Internal or external, or either channel with 2-channel models | ||||||||
| Deviation | 1 μHz to 15 MHz, 1 μHz resolution | ||||||||
| Phase modulation(PM) | |||||||||
| Source | Internal or external, or either channel with 2-channel models | ||||||||
| Deviation | 0° to 360°, 0.1° resolution | ||||||||
| Frequency shift key modulation (FSK) 7 | |||||||||
| Source | Internal timer or ext trig connector | ||||||||
| Mark & space | Any frequency within the carrier signal's range | ||||||||
| Rate | 0 Hz to 1 MHz | ||||||||
| Binary phase shift key modulation (BPSK) | |||||||||
| Source | Internal timer or ext trig connector | ||||||||
| Phase shift | 0° to 360°, 0.1° resolution | ||||||||
| Rate | 0 Hz to 1 MHz | ||||||||
| Pulse width modulation (PWM) | |||||||||
| Source | Internal or external, or either channel with 2-channel models | ||||||||
| Deviation 8 | 0% to 100% of pulse width, 0.01% resolution | ||||||||
| Additive modulation (Sum) | |||||||||
| Source | Internal or external, or either channel with 2-channel models | ||||||||
| Ratio 6 | 0% to 100% of carrier amplitude, 0.01% resolution | ||||||||
| Burst 9 | |||||||||
| Type | Counted or gated | ||||||||
| Count | 1 to 1x108 cycles, or infinite | ||||||||
| Gated | Produces complete cycles while Ext Trig is asserted | ||||||||
| Start/stop phase 4 | -360° to 360°, 0.1° resolution | ||||||||
| Trigger source | Internal Timer or Ext Trig connector | ||||||||
| Marker | Adjustable to any cycle; indicated by the trailing edge of the Sync pulse | ||||||||
| Sweep 7 | |||||||||
| Type | Linear, Logarithmic, List (up to 128 user-defined frequencies) | ||||||||
| Operation |
Linear and Logarithmic sweeps are characterized by a Sweep time (during which the frequency changes smoothly from Start to Stop), a Hold time (during which the frequency stays at the Stop frequency), and a Return time (during which the frequency changes smoothly from Stop to Start). Returns are always linear. |
||||||||
| Direction | Up (Start freq < Stop freq) or Down (Start freq > Stop freq) | ||||||||
| Start and stop frequencies | Any frequency within the waveform's range | ||||||||
| Sweep time |
Linear: 1 ms to 3600 s, 1 ms resolution; 3601 s to 250,000 s, 1 s resolution Logarithmic: 1 ms to 500 s |
||||||||
| Hold time | 0 s to 3600 s, 1 ms resolution | ||||||||
| Return time | 0 s to 3600 s, 1 ms resolution | ||||||||
| Trigger source 10 | Immediate (continuous), external, single, bus, or timer | ||||||||
| Marker | Adjustable to any frequency between Start and Stop for Linear and Logarithmic types or any frequency in the list for List type; indicated by the trailing edge of the sync pulse | ||||||||
| Internal timer for FSK, BPSK, BURST, and SWEEP | |||||||||
| Range | 1 μs to 8000s, 6-digit or 4 ns resolution | ||||||||
| 2-channel characteristics (Only applies to 33519B/20B/21B/22B) | |||||||||
| Operating modes | Independent, coupled parameter(s), combined (Ch 1 + Ch 2), Equal (Ch 2 = Ch 1), or differential (Ch 2 = -Ch 1) | ||||||||
| Parameter coupling | None, frequency (ratio or difference) and/or amplitude and DC offset | ||||||||
| Relative phase | 0° to 360°, 0.1° resolution | ||||||||
| Skew (typ) | < 200 ps (when performing identical operations) | ||||||||
| Crosstalk (typ) | < -85 dB | ||||||||
| Sync/marker output | |||||||||
| Connector | Front-panel BNC, isolated from chassis | ||||||||
| Functions | Sync, sweep marker, burst marker, or arbitrary waveform marker | ||||||||
| Assignment | Channel 1 or channel 2 | ||||||||
| Polarity | Normal or inverted | ||||||||
| Voltage level (nom) | 3 Vpp into open circuit, 1.5 Vpp into 50 Ω | ||||||||
| Output impedance (nom) | 50 Ω | ||||||||
| Minimum pulse width (nom) | 16 ns | ||||||||
| External trigger/gate | |||||||||
| Connector | Rear-panel BNC, chassis-referenced | ||||||||
| Function | Input or output | ||||||||
| Assignment | Channel 1, channel 2, or both (as input) Channel 1 or channel 2 (as output) | ||||||||
| Polarity | Positive or negative slope | ||||||||
| Voltage level (nom) |
0 V to 0.4 V for low, > 2.3 V for high, 3.5 V maximum (as input) 3 Vpp (nom) into open circuit, 1.5 Vpp (nom) into 50 Ω (as output) |
||||||||
| Impedance (nom) | 10k Ω, DC-coupled (as input) 50 Ω (as output) | ||||||||
| Minimum pulse width (nom) | 16 ns | ||||||||
| Input rate | DC to 1 MHz | ||||||||
| Minimum pulse width | 100 ns (as input) | ||||||||
| Duty cycle (nom) | 50% (as output) | ||||||||
| Trigger delay | 0 s to 1000 s, 4 ns resolution; applies to all trigger events | ||||||||
| Input latency (typ) | < 135 ns with Trigger Delay set to zero | ||||||||
| Input jitter (typ) | < 2.5 ns, rms | ||||||||
| Fanout | ≤ 4 total Keysight 33500B Series waveform generators | ||||||||
| Modulation input | |||||||||
| Connector | Rear-panel BNC, isolated | ||||||||
| Assignment | Channel 1, Channel 2, or both | ||||||||
| Voltage level | ±5 V full-scale | ||||||||
| Input impedance (nom) | 5k Ω | ||||||||
| Bandwidth (-3 dB, typ) | 0 Hz to 100 kHz | ||||||||
| Frequency reference input | |||||||||
| Connector | Rear-panel BNC, isolated from chassis and all other connectors | ||||||||
| Reference selection | Internal, external, or auto | ||||||||
| Frequency range |
Standard: 10 MHz ± 20 Hz Option OCX: 10 MHz ± 1 Hz |
||||||||
| Lock time (typ) | <2 s | ||||||||
| Voltage level | 200 mVpp to 5 Vpp | ||||||||
| Input Impedance (nom) | 1k Ω || 20 pF, AC-coupled | ||||||||
| Frequency reference output | |||||||||
| Connector | Rear-panel BNC, chasis-referenced | ||||||||
| Frequency (nom) | 10 MHz | ||||||||
| Output impedance (nom) | 50 Ω, AC-coupled | ||||||||
| Level (nom) | 0 dBm, 632 mVpp into 50 Ω | ||||||||
| Real-time clock/calendar | |||||||||
| Set and read | Year, month, day, hour, minute, second | ||||||||
| Battery | CR-2032 coin-type, replacable, >5-year life (typ) | ||||||||
| Programming times (meas.) | |||||||||
| Configuration change speed | |||||||||
| LAN (socket) | LAN (VXI-11) | USB 2.0 | GPIB | ||||||
| Change function | 5 ms | 6 ms | 5 ms | 5 ms | |||||
| Change frequency | 2 ms | 3 ms | 2 ms | 3 ms | |||||
| Change amplitude | 20 ms | 20 ms | 19 ms | 22 ms | |||||
| Select user arb (16 k) | 9 ms | 11 ms | 9 ms | 9 ms | |||||
| Arbitrary waveform download speed to volatile | |||||||||
| (binary transfer) | LAN (socket) | LAN (VXI-11) | USB 2.0 | GPIB | |||||
| 4 k sample | 6 ms | 18 ms | 8 ms | 39 ms | |||||
| 1 M sample | 1.3 s | 2.6 s | 13 s | 9.1 s | |||||
| Memory | |||||||||
| Arbitrary waveform and instrument state memory | |||||||||
| Volatile | 1x106 samples per channel or 16x106 samples per channel (Option MEM) 512 sequence steps per channel | ||||||||
| Non-volatile | File sytem file space is limited to 64 MB (~32 MSa of arbitrary waveform records) | ||||||||
| Instrument state | |||||||||
| Store / Recall | User defined instrument states | ||||||||
| Power Off | Power Off state automatically saved | ||||||||
| Power On | Factory default settings or last power off settings | ||||||||
| USB File System | |||||||||
| Front-panel port | USB 2.0 high-speed mass storage (MSC) class device | ||||||||
| Capability | Read or write instrument configuration settings, instrument states and user arbitrary waveform and sequence files. | ||||||||
| Speed | 10 MB/s (nom) | ||||||||
| General characteristics | |||||||||
| Computer interfaces | |||||||||
| LXI- C (rev1.3) | 10/100Base-T Ethernet (Sockets & VXI-11 protocol) USB2.0 (USB-TMC488 protocol) GPIB/IEEE-488.1, IEEE-488.2 | ||||||||
| Web user interface | Remote operation and monitoring | ||||||||
| Programming language | SCPI-1999, IEEE-488.2 Keysight 33210A / 33220A compatibile | ||||||||
| Graphical display | 4.3" Color TFT WQVGA (480x272) with LED backlight | ||||||||
| Mechanical | |||||||||
| Size | 261.1mm W x 103.8mm H x 303.2mm D (with bumpers installed) 212.8mm W x 88.3mm H x 272.3mm D (with bumpers removed) 2U x 1/2 rack width | ||||||||
| Weight (nom) Environmental | 3.3 kg (7.2 lbs) | ||||||||
| Storage temperature | -40"C to 70‘C | ||||||||
| Warm-up time | 1 hour | ||||||||
| Operating environment | EN61010, polution degree 2; indoor locations | ||||||||
| Operating temperature | 0‘C to 55‘C | ||||||||
| Operating humidity | 5% to 80% RH, non-condensing | ||||||||
| Operating altitude | up to 3000 meters | ||||||||
| Regulatory | |||||||||
| Safety | Complies with European Low Voltage Directive and carries the CE-marking. Conforms to UL 61010-1, CSA C22.2 61010-1, and IEC 61010-1:2001 | ||||||||
| EMC |
Complies with European EMC Directive for test and measurement products. - IEC/EN 61326-1 - CISPR Pub 11 Group 1, class A - AS/NZS CISPR 11 - ICES/NMB-001 Complies with Australian standard and carries C-Tick mark This ISM device complies with Canadian ICES-001. Cet appareil ISM est conforme a la norme NMB-001 du Canada |
||||||||
| Acoustic Noise (nom) | SPL 35 dB(A) | ||||||||
| Line power | |||||||||
| Voltage | 100 V - 240 V 50/60 Hz -5%, +10% 100 V - 120 V 400 Hz ±10% | ||||||||
| Power consumption (typ) | < 45 W, < 130 VA | ||||||||
| Definitions | |||||||||
| Specification (spec) | |||||||||
|
The warranted performance of a calibrated instrument that has been stored for a minimum of 2 hours within the operating temperature range of 0° C - 55° C and after a 45-minute warm up period. All specifications include measurement uncertainty and were created in compliance with ISO-17025 methods. Data published in this document are specifications (spec) only where specifically indicated. |
|||||||||
| Typical (typ) | |||||||||
|
The characteristic performance, which 80% or more of manufactured instruments will meet. This data is not warranted, does not include measurement uncertainty, and is valid only at room temperature (approximately 23°C). |
|||||||||
| Nominal (nom) | |||||||||
|
The mean or average characteristic performance, or the value of an attribute that is determined by design such as a connector type, physical dimension, or operating speed. This data is not warranted and is measured at room temperature (approximately 23°C). |
|||||||||
| Measured (meas) | |||||||||
|
An attribute measured during development for purposes of communicating the expected performance. This data is not warranted and is measured at room temperature (approximately 23°C). |
|||||||||
| Accuracy | |||||||||
|
Represents the traceable accuracy of a specified parameter. Includes measurement error and timebase error, and calibration source uncertainty. Random measuremet errors are combined using the root-sum-square method and are multiplied by M for the desired Confidence Level. Syatematic errors are added linearly and include time skew errors, trigger timing errors, and timebase errors as appropriate for each measurement type. |
|||||||||
| Confidence Level | |||||||||
Документы
Описание
| Опции | Описание |
| 335xxB-MEM | Увеличение глубины памяти до 16 Мвыб/канал (только для моделей с генератором сигналов произвольной формы) |
| 335xxB-OCX | Термостатированный кварцевый генератор |
| 335xxB-SEC | Функции безопасности, соответствующие NISPOM |
Модели
| Модели | Описание |
| 33509B | Генератор сигналов, 20 МГц, 1 канал |
| 33510B | Генератор сигналов, 20 МГц, 2 канала |
| 33511B | Генератор сигналов, 20 МГц, 1 канал, функция генерации сигналов произвольной формы |
| 33512B | Генератор сигналов, 20 МГц, 2 канала, функция генерации сигналов произвольной формы |
| 33519B | Генератор сигналов, 30 МГц, 1 канал |
| 33520B | Генератор сигналов, 30 МГц, 2 канала |
| 33521B | Генератор сигналов, 30 МГц, 1 канал, функция генерации сигналов произвольной формы |
| 33522B | Генератор сигналов, 30 МГц, 2 канала, функция генерации сигналов произвольной формы |
