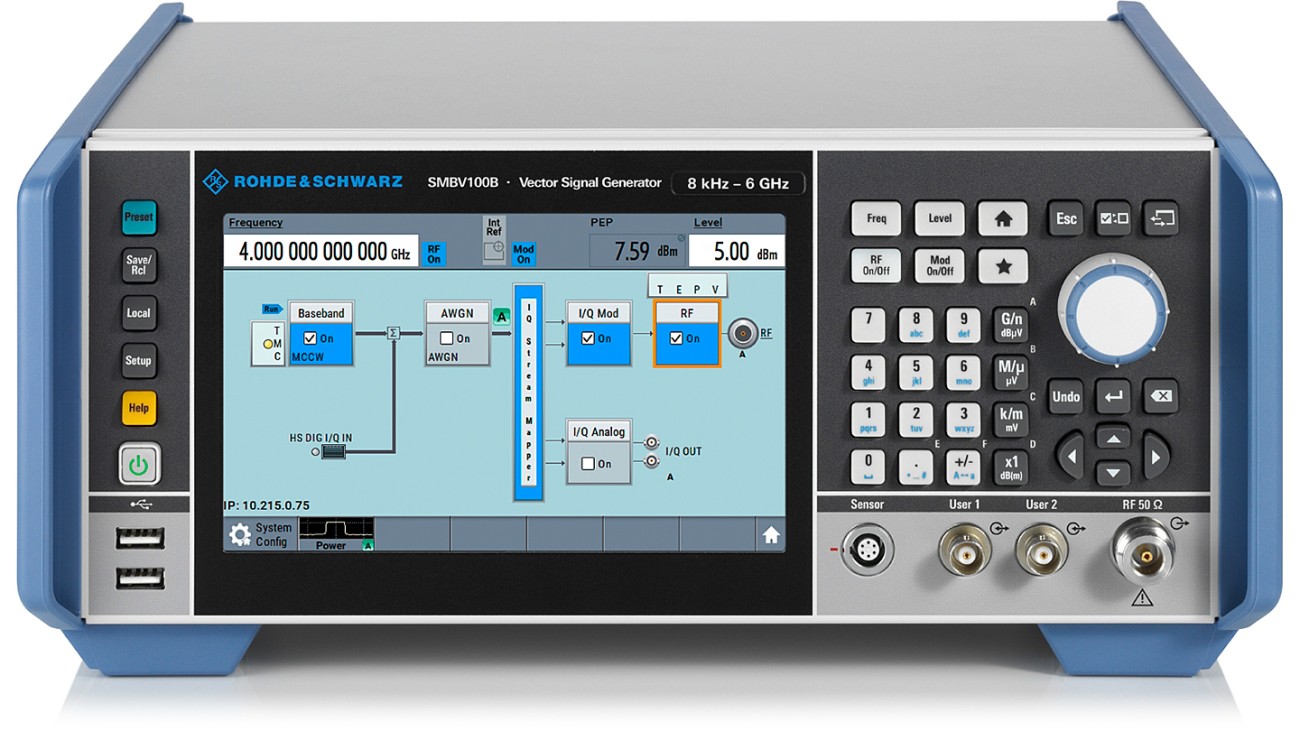

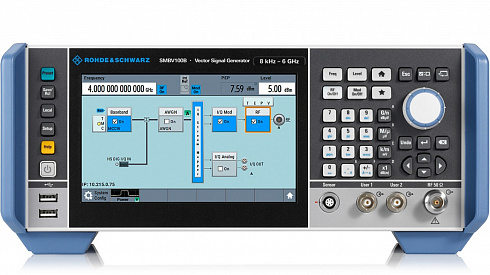

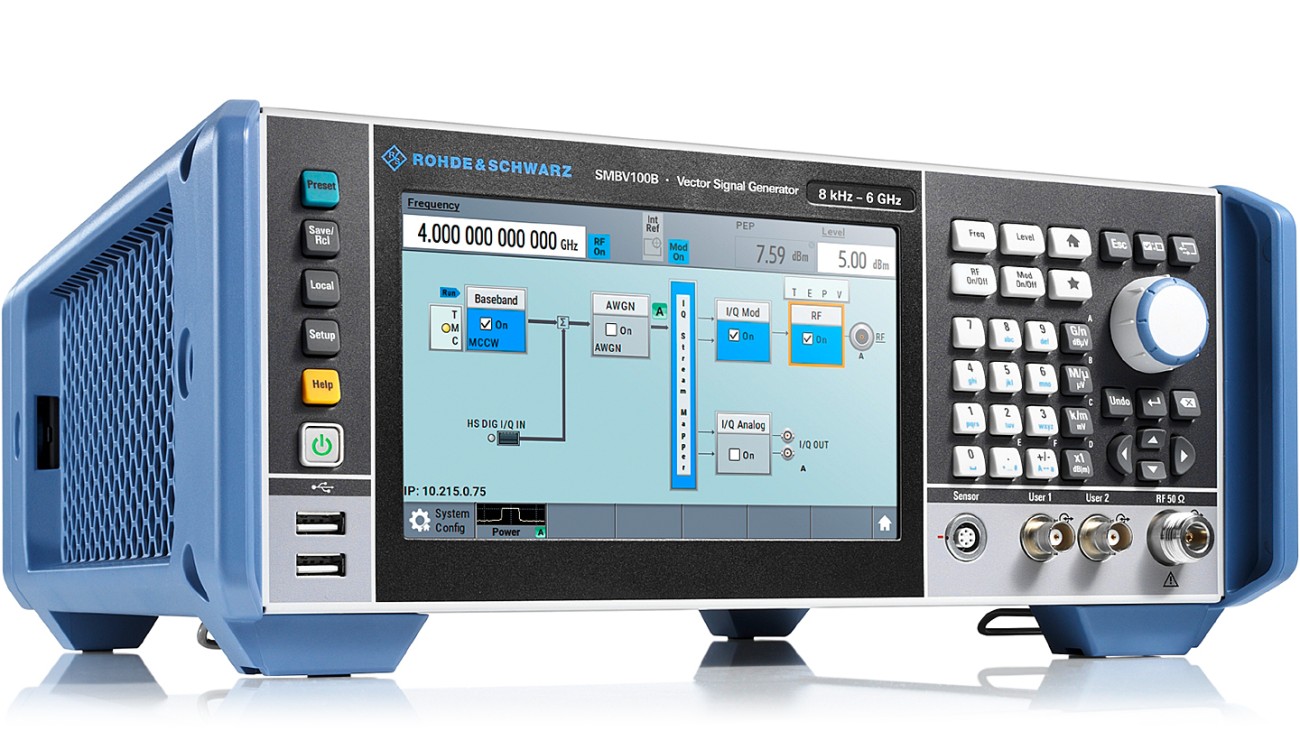

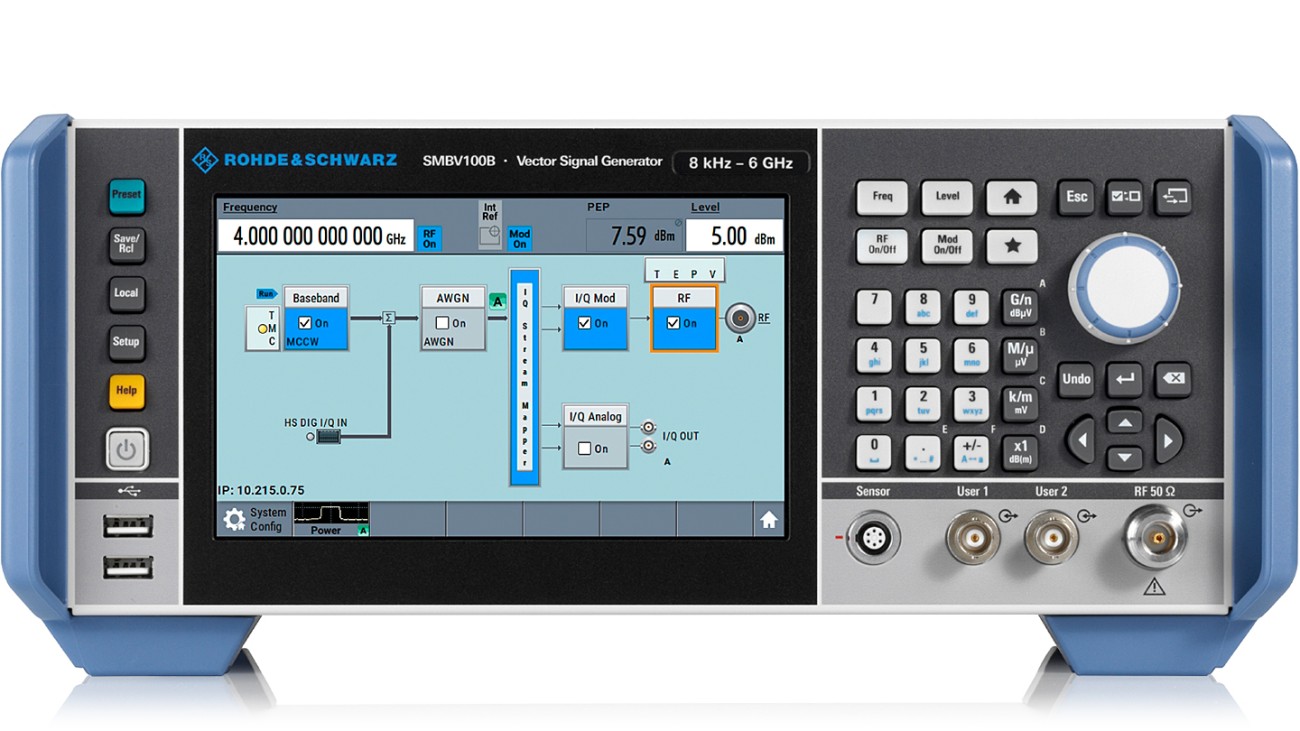

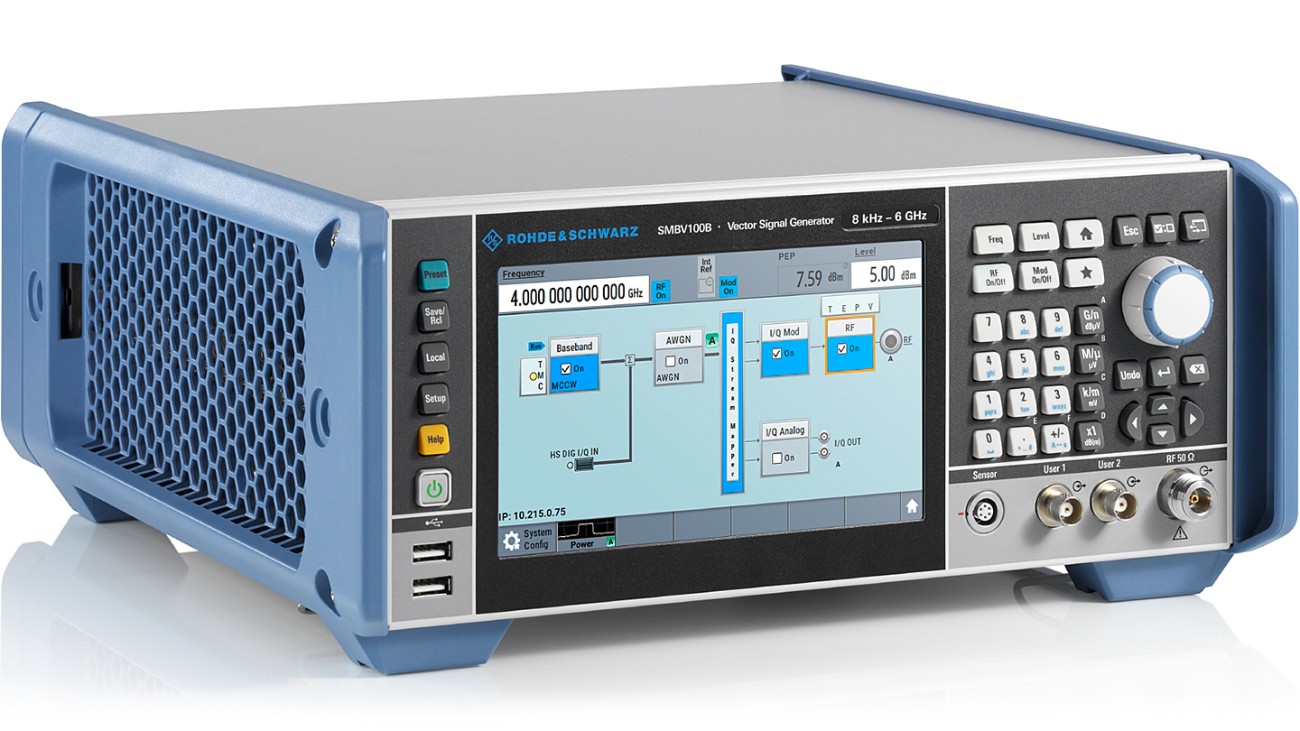

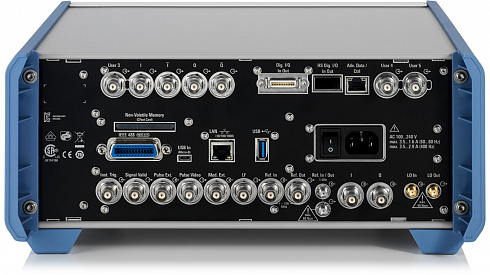

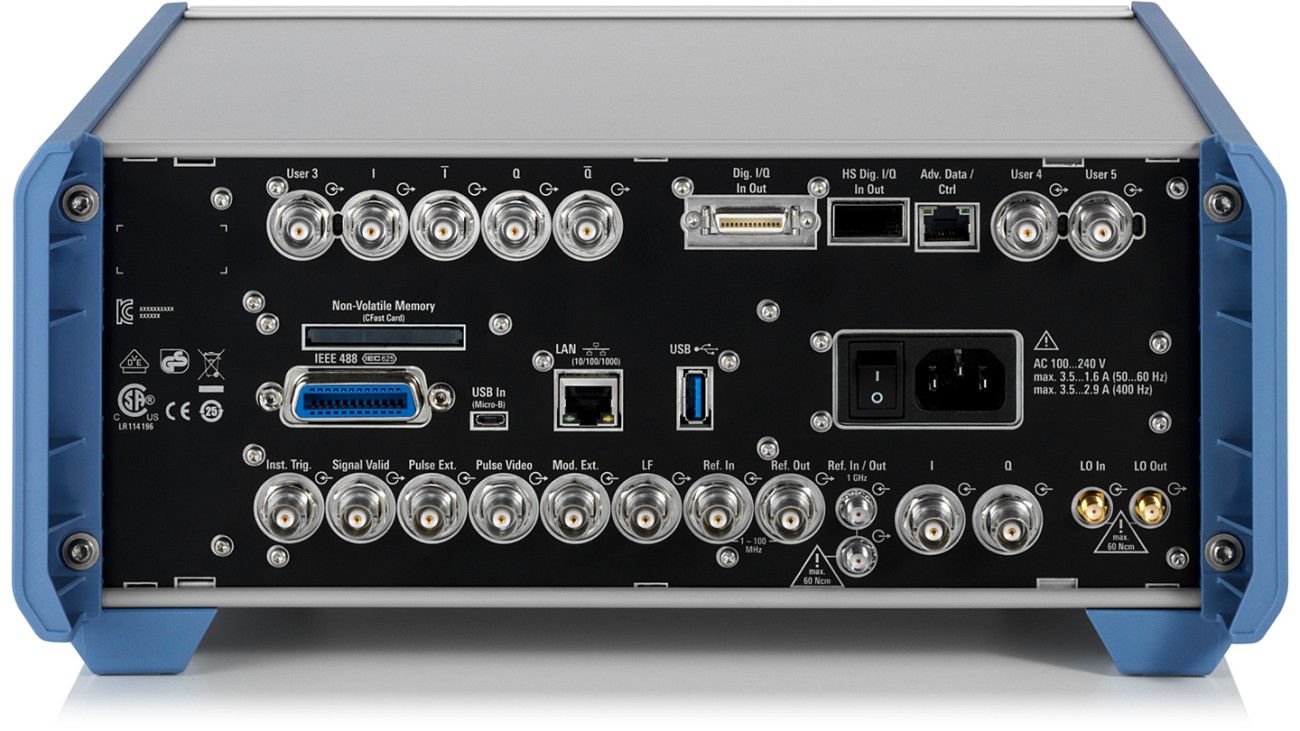

Векторный генератор сигналов Rohde&Schwarz SMBV100B с диапазоном частот от 8 кГц до 6 ГГц
Подробнее
Описание
Современный векторный генератор сигналов R&S®SMBV100B задает новые стандарты в своем классе. Сверхвысокая выходная мощность, полностью откалиброванная генерация широкополосных сигналов и интуитивно-понятное управление с помощью сенсорного экрана делают генератор R&S®SMBV100B идеальным устройством для решения прикладных задач любого вида.
Генератор SMBV100B всегда соответствует актуальным спецификациям основных стандартов цифровой связи — 5G NR, LTE и WLAN; это предпочтительное решение для испытаний приемников и определения характеристик компонентов.
При оснащении генератора R&S®SMBV100B опциями ГНСС он превращается в надежный полнофункциональный имитатор ГНСС. Расширенные возможности имитации дают возможность выполнять реалистичные, сложные и воспроизводимые сценарии ГНСС в контролируемых условиях.
Ключевые факты:
- Диапазон частот: от 8 кГц до 3 ГГц или 6 ГГц
- Сверхвысокая выходная мощность до +34 дБмВт
- Полоса модуляции 500 МГц с превосходной точностью
- Генерация сигналов всех основных стандартов цифровой связи, включая 5G NR, LTE и WLAN
- Имитатор ГНСС с GPS, ГЛОНАСС, Galileo, BeiDou и QZSS/SBAS
Характеристики
| Specifications in brief | ||
| Frequency range | R&S®SMBVB-B103 | |
| CW mode | 8 kHz to 3 GHz | |
| I/Q mode | 1 MHz to 3 GHz | |
| R&S®SMBVB-B103 and R&S®SMBVBKB106 | ||
| CW mode | 8 kHz to 6 GHz | |
| I/Q mode | 1 MHz to 6 GHz | |
| Level range | peak envelope power (PEP) | |
| R&S®SMBVB-B103/KB106 standard | ||
| 1 MHz < f ≤ 6 GHz | –127 dBm to +18 dBm | |
| with R&S®SMBVB-K31 option | ||
| 1 MHz < f ≤ 4 GHz | –127 dBm to +21 dBm | |
| 4 GHz < f ≤ 6 GHz | –127 dBm to +20 dBm | |
| with R&S®SMBVB-K31 and R&S®SMBVB-B32 options | ||
| 10 MHz < f ≤ 6 GHz | –127 dBm to +25 dBm | |
| Spectral purity | ||
| SSB phase noise | f = 1 GHz, 20 kHz offset, 1 Hz measurement bandwidth | < –126 dBc, –132 dBc (typ.) |
| Harmonics | 1 MHz < f ≤ 6 GHz, level ≤ 13 dBm | < –30 dBc |
| Nonharmonics | f = 1 GHz, level > +10 dBm, offset > 10 kHz | < –76 dBc |
| Analog modulation | supported analog modulation modes | |
| with R&S®SMBVB-K720 option | AM, FM, φM | |
| with R&S®SMBVB-K22 option | pulse modulation | |
| I/Q modulation | ||
| RF modulation bandwidth | with internal baseband I/Q, I/Q wideband on | |
| 1 MHz < f ≤ 1000 MHz | ±25 % of carrier frequency | |
| f > 1000 MHz | ±250 MHz | |
| with external I/Q inputs, I/Q wideband on | ||
| 1 MHz ≤ f ≤ 4 GHz | ±25 % of carrier frequency | |
| f > 4 GHz | ±1 GHz | |
|
Modulation frequency response in specified RF modulation bandwidth |
with internal baseband I/Q, I/Q wideband on, optimization mode: high quality | < 1.0 dB, < 0.3 dB (meas.) |
| I/Q baseband generator | ||
| Signal bandwidth | standard | 120 MHz |
| with R&S®SMBVB-K523 option | 240 MHz | |
| with R&S®SMBVB-K523 and R&S®SMBVB-K524 options | 500 MHz | |
| ARB memory depth | standard | 64 Msample |
| with R&S®SMBVB-K511 option | 512 Msample | |
| with R&S®SMBVB-K511 and R&S®SMBVB-K512 options | 1 Gsample | |
| with R&S®SMBVB-K511, R&S®SMBVB-K512 and R&S®SMBVB-K513 options | 2 Gsample | |
| Digital standards | 5G NR, cellular IoT, LTE Release 8 to 15, 3GPP FDD HSPA/HSPA+, GSM, WLAN IEEE 802.11a/b/g/n/j/p/ac/ax/be, AWGN and more | |
|
External R&S®Pulse Sequencer software or R&S®Pulse Sequencer (DFS) software |
pulse sequencing, enhanced pulse sequencing, direction finding, DFS signal generation | |
| GNSS and avionics | GPS, Galileo, GLONASS, BeiDou, GBAS, ILS, VOR, DME | |
Документы
Описание
| Опции | Описание |
| R&S SMBVB-B1 | OCXO reference oscillator |
| R&S SMBVB-B1H | High performance OCXO reference oscillator |
| R&S SMBVB-B3 | 1 GHz reference |
| R&S SMBVB-K704 | Flexible reference input from 1 MHz to 100 MHz |
| R&S SMBVB-K31 | High output power |
| R&S SMBVB-B32 | Ultra high output power |
| R&S SMBVB-K90 | Phase coherence |
| R&S SMBVB-K22 | Pulse modulator |
| R&S SMBVB-K23 | Pulse generator |
| R&S SMBVB-K24 | Multifunction generator |
| R&S SMBVB-K720 | AM/FM/mM |
| R&S SMBVB-K17 | Differential analog I/Q outputs |
| R&S SMBVB-K511 | ARB memory extension to 512 Msample |
| R&S SMBVB-K512 | ARB memory extension to 1 GSample |
| R&S SMBVB-K513 | ARB memory extension to 2 Gsample |
| R&S SMBVB-K520 | Baseband realtime extension |
| R&S SMBVB-K523 | Baseband extension to 240 MHz RF bandwidth |
| R&S SMBVB-K524 | Baseband extension to 500 MHz RF bandwidth |
| R&S SMBVB-K62 | Additive White Gaussian Noise (AWGN) |
| R&S SMBVB-K80 | Bit error rate tester |
| R&S SMBVB-K540 | Envelope tracking |
| R&S SMBVB-K541 | AM/AM, AM/pM predistortion |
| R&S SMBVB-K544 | User-defined frequency response correction |
| R&S SMBVB-K40 | GSM/EDGE |
| R&S SMBVB-K41 | EDGE Evolution |
| R&S SMBVB-K42 | 3GPP FDD |
| R&S SMBVB-K46 | CDMA2000® |
| R&S SMBVB-K47 | 1xEV-DO |
| R&S SMBVB-K50 | TD-SCDMA |
| R&S SMBVB-K51 | TD-SCDMA enhanced BS/MS tests |
| R&S SMBVB-K54 | IEEE 802.11 (a/b/g/n/j/p) |
| R&S SMBVB-K55 | EUTRA/LTE |
| R&S SMBVB-K60 | Bluetooth® EDR |
| R&S SMBVB-K61 | Multicarrier CW signal generation |
| R&S SMBVB-K83 | 3GPP FDD HSPA/HSPA+, enhanced BS/MS tests |
| R&S SMBVB-K84 | EUTRA/LTE Release 9 and enhanced features |
| R&S SMBVB-K85 | EUTRA/LTE Release 10 (LTE advanced) |
| R&S SMBVB-K86 | IEEE 802.11ac |
| R&S SMBVB-K87 | 1xEV-DO Rev. B |
| R&S SMBVB-K89 | NFC A/B/F |
| R&S SMBVB-K112 | LTE Release 11 and enhanced features |
| R&S SMBVB-K113 | LTE Release 12 |
| R&S SMBVB-K114 | OFDM signal generation |
| R&S SMBVB-K115 | Cellular IoT |
| R&S SMBVB-K117 | Bluetooth® 5.0 |
| R&S SMBVB-K119 | LTE Release 13 and 14 |
| R&S SMBVB-K131 | LORA |
| R&S SMBVB-K142 | IEEE 802.11ax |
| R&S SMBVB-K143 | Cellular IoT enhancements |
| R&S SMBVB-K144 | 5G NR |
| R&S SMBVB-K240 | GSM/EDGE |
| R&S SMBVB-K241 | EDGE Evolution |
| R&S SMBVB-K242 | 3GPP FDD |
| R&S SMBVB-K244 | GPS |
| R&S SMBVB-K246 | CDMA2000® |
| R&S SMBVB-K247 | 1xEV-DO Rev A |
| R&S SMBVB-K250 | TD-SCDMA |
| R&S SMBVB-K251 | TD-SCDMA enhanced BS/MS tests |
| R&S SMBVB-K252 | DVB-H |
| R&S SMBVB-K253 | DAB/T-DMB |
| R&S SMBVB-K254 | 802.11a/b/g/n |
| R&S SMBVB-K255 | EUTRA/LTE |
| R&S SMBVB-K260 | Bluetooth® EDR |
| R&S SMBVB-K261 | Multicarrier CW signal generation |
| R&S SMBVB-K262 | Additive White Gaussian Noise (AWGN) |
| R&S SMBVB-K266 | Galileo |
| R&S SMBVB-K283 | 3GPP FDD HSPA/HSPA+, enhanced BS/MS tests |
| R&S SMBVB-K284 | EUTRA/LTE Release 9 and enhanced features |
| R&S SMBVB-K285 | EUTRA/LTE Release 10 (LTE advanced) |
| R&S SMBVB-K286 | IEEE 802.11ac |
| R&S SMBVB-K287 | 1xEV-DO Rev. B |
| R&S SMBVB-K289 | NFC A/B/F |
| R&S SMBVB-K294 | Glonass 1 satellite |
| R&S SMBVB-K298 | Modernized GPS |
| R&S SMBVB-K407 | Beidou |
| R&S SMBVB-K412 | LTE Release 11 and enhanced features |
| R&S SMBVB-K413 | EUTRA/LTE Release 12 |
| R&S SMBVB-K414 | OFDM signal generation |
| R&S SMBVB-K415 | Cellular IoT |
| R&S SMBVB-K416 | DVB-S2/DVB-S2X |
| R&S SMBVB-K417 | Bluetooth® 5.0 |
| R&S SMBVB-K418 | Verizon 5GTF signals |
| R&S SMBVB-K419 | LTE Release 13 and 14 |
| R&S SMBVB-K431 | LORA |
| R&S SMBVB-K442 | IEEE 802.11ax |
| R&S SMBVB-K443 | Cellular IoT enhancements |
| R&S SMBVB-K444 | 5G NR |
| R&S SMBVB-K200 | 50 waveform |
| R&S SMBVB-K300 | Pulse sequencing |
| R&S SMBVB-K301 | Enhanced pulse sequencing |
| R&S SMBVB-K308 | DF |
| R&S SMBVB-K350 | DFS signal generation |
| R&S SMBVB-K44 | GPS |
| R&S SMBVB-K66 | Galileo |
| R&S SMBVB-K94 | Glonass |
| R&S SMBVB-K98 | Modernized GPS |
| R&S SMBVB-K106 | SBAS/QZSS |
| R&S SMBVB-K107 | BeiDou |
| R&S SMBVB-K108 | GNSS real world simulation |
| R&S SMBVB-K109 | GNSS realtime interface |
| R&S SMBVB-K133 | Single-satellite GNSS |
| R&S SMBVB-K134 | Upgrade to dual-frequency GNSS |
| R&S SMBVB-K135 | Upgrade to triple-frequency GNSS |
| R&S SMBVB-K136 | Add 6 GNSS channels |
| R&S SMBVB-K137 | Add 12 GNSS channels |
| R&S SMBVB-K111 | GBAS |
| R&S SMBVB-K151 | ILS |
| R&S SMBVB-K152 | VOR |
| R&S SMBVB-K153 | DME |
| R&S SMBVB-K360 | eraGlonass test suite |
| R&S SMBVB-K361 | eCall test suite |
| R&S SMBVB-B80 | Removable mass storage |
| R&S SMBVB-B81 | Rear panel connector for RF path |
| R&S SMBVB-Z10 | Spare CFAST card |
| R&S ZZA-KNA33 | 19" rack adapter |
| R&S TS-USB1 | USB serial adapter for RS-232 remote control |
| R&S DCV-2 | Documentation of calibration values |
| R&S ACASMBV100 | R&S®SMBV100B accredited calibration (ISO 17025, ISO 9000) |
Модели
| Модели | Описание |
| R&S SMBVB-B103 | 8 kHz to 3 GHz |
| R&S SMBVBKB106 | Frequency extension to 6 GHz |
