Портативный мониторинговый приемник Rohde&Schwarz PR100 с диапазоном частот от 9 кГц до 7,5 ГГц
Замена: Rohde&Schwarz PR200
Замена: Rohde&Schwarz PR200
Подробнее
Описание

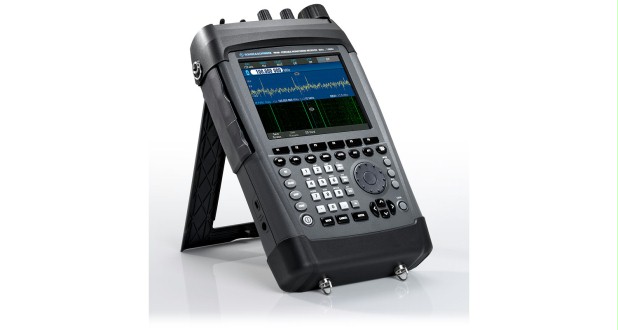

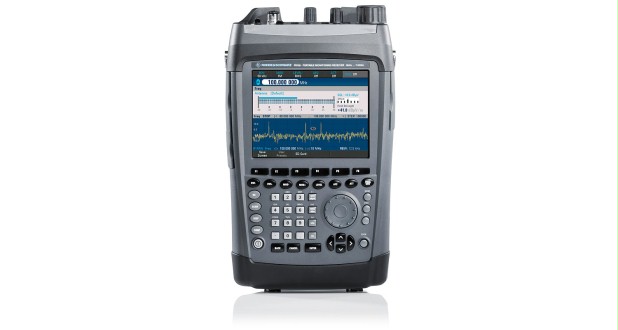

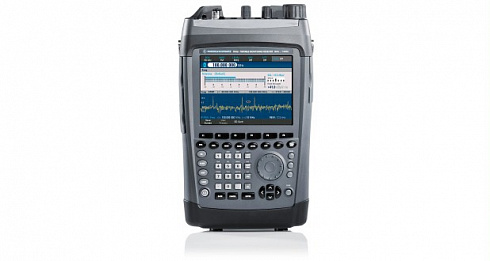

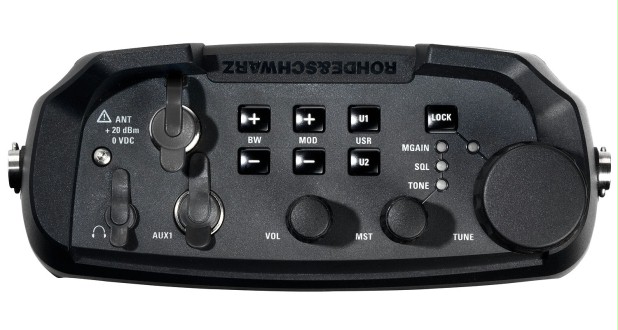

Портативный приемник R&S®PR100 был специально разработан для радиомониторинга в полевых условиях. Функции приемника и концепция управления оптимизированы для задач мониторинга. Кроме того, устройство может использоваться для решения ряда других задач.
Модель R&S®PR100 работает в широком диапазоне частот от 9 кГц до 7,5 ГГц. Используется ли приемник для мониторинга радиопередач, обнаружения или пеленгации миниатюрных передатчиков, приемник всегда сочетает высокую мобильность с максимальной простотой применения.

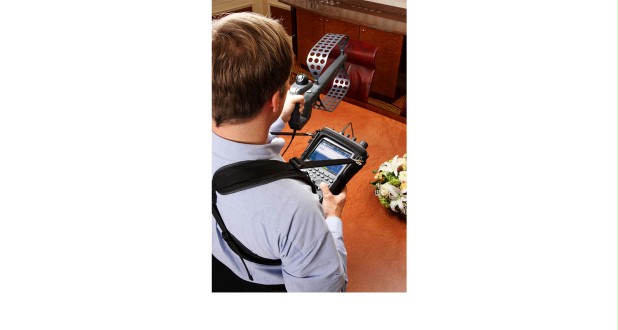

Приемник вместе с активной приемной антенной R&S®HE300 образуют компактную приемную систему. Приемник также может использоваться в сочетании с другими антеннами, например, с широкополосными всенаправленными антеннами.
Характеристики
| RF data | ||
| Frequency range | 9 kHz to 7.5 GHz | |
| RF input | ||
| Impedance | 50 Ω | |
| Preselection | 9 kHz to 30 MHz | 30 MHz lowpass filter |
| 20 MHz to 1.5 GHz | tuned bandpass filters | |
| 1.5 GHz to 7.5 GHz | highpass/lowpass filter combination | |
| IF data | ||
| IF spectrum display range |
1 kHz to 10 MHz, 1/2/5/10/20/50/100/200/500 kHz, 1/2/5/10 MHz |
|
| Display modes | normal (clear/write), average, max. hold, min. hold | |
| IF demodulation bandwidths | 15 filters (specified values indicate 3 dB bandwidth) |
150/300/600 Hz, 1.5/2.4/6/9/15/30/50/120/150/ 250/300/500 kHz |
| Demodulation modes | all demodulation bandwidths | AM, FM, PULSE, I/Q |
| demodulation bandwidth ≤ 9 kHz | LSB | |
| demodulation bandwidth ≤ 15 kHz | ISB | |
| demodulation bandwidth ≤ 9 kHz | CW | |
| Scan modes | ||
| Frequency scan (FScan) | start and stop frequency, step width | user-selectable |
| scan speed | up to 200 channels/s | |
| Memory scan (MScan) | memory locations | 1024, user-programmable |
| scan speed | up to 150 channels/s | |
| Panorama scan (PScan) | start and stop frequency | user-selectable |
| resolution bandwidths (bin widths) |
125/250/500/625 Hz, 1.25/2.5/3.125/6.25/12.5/25/50/100 kHz |
|
| scan speed (RBW = 100 kHz, measurement time = 500 μs, IF spectrum = normal, clear/write, display mode = IF spectrum) | up to 2 GHz/s | |
| DF mode | ||
| Frequency range | 20 MHz to 6 GHz | |
| DF method | 20 MHz to 173 MHz | Watson-Watt |
| 173 MHz to 6 GHz | correlative interferometer | |
| Display resolution | selectable | 0.1° or 1° |
Документы
Rohde and Schwarz PR100 Brochure
14.9 Мб
Описание
| Опции | Описание |
| R&S® PR100-PS | Panorama Scan RF scan, high-speed FFT scan across user-selectable scan range, selectable spectral resolution (bin width) |
| R&S® PR100-IR | Internal Recording recording of measured data in the receiver (64 Mbyte RAM) or on SD card, recording of audio data in WAV format (replay using Windows Media Player, for example), recording of I/Q data, spectra and spectrogram (waterfall) data, R&S®PR100-Control software for viewing measured data on customer PC |
| R&S® PR100-RC | Remote Control remote control of receiver via LAN interface (SCPI protocol); transfer of measured data via LAN interface; transfer of demodulated I/Q data (up to 500 kHz bandwidth) via LAN interface; R&S®PR100-Control software (for remote control, data recording and data playback via PC) |
| R&S® PR100-ETM R&S® PR100-FS | Externally Triggered Measurements an external sensor (not supplied with the receiver) triggers a measurement in the R&S®PR100; the sensor is connected via the AUX interface 1) Field Strength Measurement the field strength is calculated using antenna factors stored in the receiver; the receiver displays the field strength directly in dBpV/m |
| R&S® PR100-FP | SHF Frequency Processing for downconverter antennas the downconverter unit of the R&S®HF907DC antenna is connected to the receiver via a control cable; the receiver recalculates the downconverted signals to display them with their original frequencies up to 18 GHz and with the sidebands in their original positions, thus relieving the user from having to convert signals subsequently (antenna and downconverter not supplied with the R&S®PR100-FP option) |
| R&S® PR100-GPS | GPS Software Interface for data stream processing of external GPS module (GPS module not included in scope of delivery) |
| R&S® PR100-DF | Direction Finder Upgrade Kit adds accurate direction finding functionality to the R&S®PR100 receiver (DF antennas and cable set not included) |
| R&S® PR100-PC | Polychrome Spectrum Display adds a color-coded spectrum display to indicate the relative signal occupancy |
| R&S® PR100-BP | Battery Pack 6-cell lithium-ion battery, charging cradle, plug-in power supply |
| R&S® PR100-SC | Suitcase Kit hard-shell transit case with headphones and telescopic antenna and extra space for accessories |
| R&S® HA-Z202 | Vehicle Adapter |
| R&S® HA-Z206 | Lithium-Ion Battery Pack, 6 Ah |
| R&S® HA-Z222 | Carrying Holster chest strap and rainproof cover |
| R&S® HA-Z220 | Carrying Bag soft carrying bag |
| R&S® HA-Z240 | GPS Receiver external GPS receiver for the R&S®PR100 |
| R&S® HE400 | Handheld Directional Antenna (antenna handle) |
| R&S® HE400HF | HF Antenna Module, 8.3 kHz to 30 MHz |
| R&S® HE400VHF | VHF Antenna Module, 20 MHz to 200 MHz |
| R&S® HE400UWB | UWB Antenna Module, 30 MHz to 6 GHz |
| R&S® HE400LP | Log-Periodic Antenna Module, 450 MHz to 8 GHz |
| R&S® HE400CEL | Cellular Antenna Module, 700 MHz to 2500 MHz |
| R&S® HE400-K | Cable Set for R&S®HE400 and R&S®PR100 or R&S®FSH |
| R&S® HE400Z1 | Transport Case for R&S®HE400 |
| R&S® HE400Z2 | Transport Bag (small) for R&S®HE400 (recommended for one or two antenna modules) |
| R&S® HE400Z3 | Transport Bag (large) for R&S®HE400 (recommended for three or four antenna modules) |
| R&S® HE400Z4 | Tripod for R&S®HE400 |
| R&S® HF907DC | SHF Directional Antenna with Downconverter |
| R&S® HF907DC-K1 | Cable Set |
| R&S® ADD107 | Compact VHF/UHF DF Antenna |
| R&S® ADD207 | Compact UHF/SHF DF Antenna |
| R&S® ADD307 | Collapsible VHF/UHF DF Antenna |
| R&S® ADD17XZ3 | Vehicle Adapter with Magnet Mount |
| R&S® ADD17XZ5 | Cable Set with Converter |
| R&S® ADD17XZ6 | Wooden Tripod |
| R&S® ADD17XZ7 | Tripod Bag for R&S®ADD17XZ6 |
| R&S® ADD17XZ8 | DF Antenna Backpack, for R&S®DDF007, R&S®ADD107 or R&S®ADD207, R&S®ADD17XZ5 and R&S®ADD17XZ3 |
| R&S® ADD17XZ9 | Antenna Cable with Converter for R&S®ADD307, length: 5 m |
| R&S® EXTCABLRF | Extender Cable RF for R&S®DDF007 and R&S®PR100-DF |
| R&S® EXTCABLCTL | Extender Cable Control for R&S®DDF007 and R&S®PR100-DF |
| R&S® EXTCABLSET | Extender Cable Set for R&S®DDF007 and R&S®PR100-DF |
| R&S® HA-Z202 | Vehicle Adapter |
| R&S® HA-Z206 | Lithium-Ion Battery Pack, 6 Ah |
| R&S® HA-Z222 | Carrying Holster chest strap and rainproof cover |
| R&S® HA-Z220 | Carrying Bag soft carrying bag |
| R&S® HA-Z240 | GPS Receiver external GPS receiver for the R&S®PR100 |
