Активный пробник Keysight 41800A с диапазоном частот от 5 Гц до 500 МГц
Подробнее
Описание

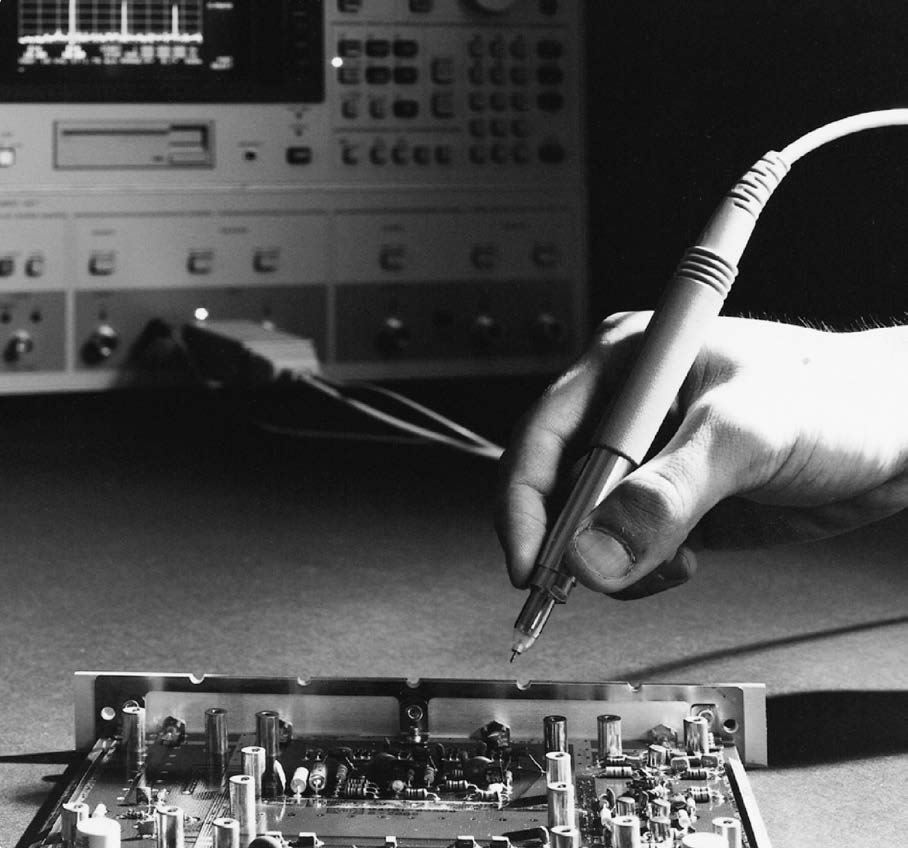

Активный пробник Keysight 41800A с высоким входным импедансом и частотным диапазоном от 5 Гц до 500 МГц является полезным инструментом для анализа сигналов в схемах с помощью анализаторов цепей и анализаторов спектра.
Характеристики
| (Terminated with Keysight part number 11880-60001 type-N adapter) | |
| Bandwidth: | 5 Hz to 500 MHz |
| Probe gain: | 0 dB ± 0.5 dB @ 50 MHz |
| Input R, C (typical): | 100 kW, 3 pF (probe alone) 1 MW, 1 pF (with 10:1, 100:1 divider) |
| Frequency response relative to 50 MHz: | +1/-2 dB @ < 50 Hz ±1 dB @ 50 Hz to 200 MHz +1.5/-2 dB @ > 200 MHz |
| Average noise level (typical): | 10 nV/ Hz @ > 300 kHz +3 dB/Oct @ <300 kHz |
| 2nd harmonic distortion (typical): | < -50 dBc @ -20 dBm (250 MHz) input |
| 3rd order intermodulation distortion (typical): | < -70 dBc @ -26 dBm two signals input (400 MHz, 400.5 MHz) |
| 1 dB gain compression: | > +3 dBm input @ 500 MHz |
| Maximum allowable input (DC + AC): | ±40 V |
| Output connector: | 50 W type-N male |
| Power: | +15 V/85 mA, -12.6 V/65 mA |
| Weight: | 0.3 kg (probe alone) 2 kg (including accesssories) |
| Length: | Approximatly 1.2 m |
| Operating temperature humidity: | 0 °C to 55 °C, RH < 95% (40 °C) |
| Accessories furnished: | Type BNC male adapter, 10:1, 100:1 dividers, Hook tip, 2.5 inch ground lead, 30 mil, 12 mil spare probe tips, spanner tip assembly, probe tip nut driver, operating note, carrying case |
