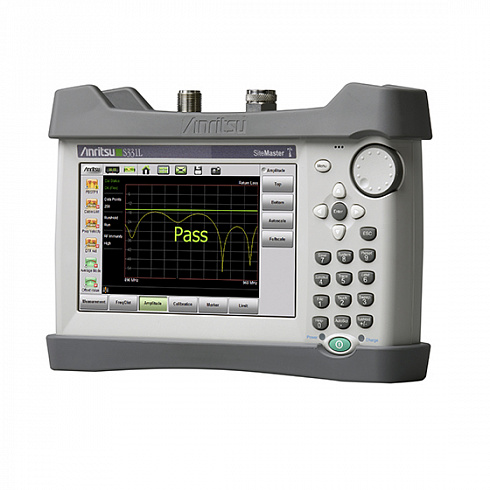

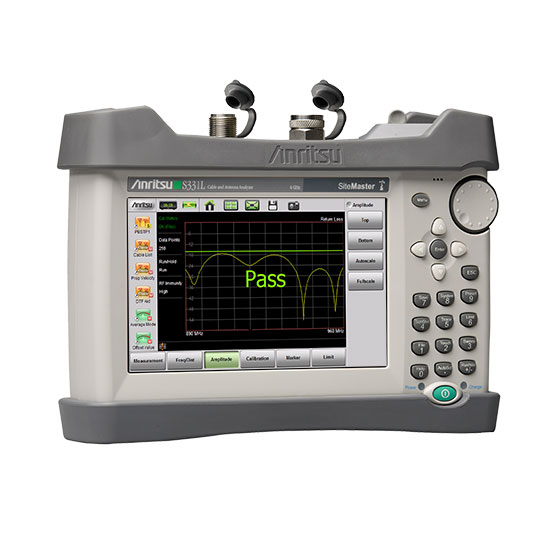

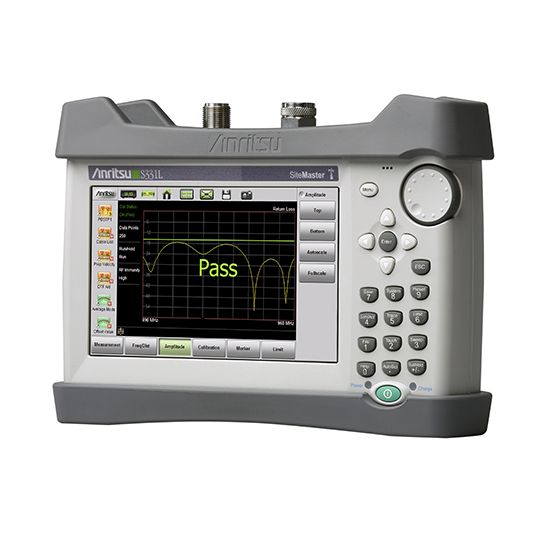

Anritsu Site Master S331L – сочетающий в себе все необходимые функции однопортовый анализатор антенн и линий в диапазоне от 2МГц до 4ГГц, штатный встроенный модуль InstaCal™ и измеритель мощности
Подробнее
Описание
- от 2 МГц до 4 ГГц Портативный анализатор антенн и линий, ударо-, пыле- и брызгозащитный
- Более 8 часов непрерывной работы от аккумуляторной батареи
- Стандартно встроенный модуль InstaCal™ и Измеритель Мощности
- FlexCal™ Калибровка сохраняется при изменении частотного диапазона
- Классический Режим (подобно прибору S331D) и Продвинутый Режим (подобно прибору S331E)
- Встроенная Помощь
- 800 x 480 7” TFT сенсорный экран и USB порты
- Внутренняя память >1000 файлов с быстрым просмотром сохраненных трасс
- Стандартное в отрасли расширение файлов *.dat , совместимость с программными продуктами Line Sweep Tools (LST) и HHST
- Стандартная гарантия – 3 года (гарантийный срок на батареи составляет 1 год)
Характеристики
| Measurements | |||||
| Measurements | VSWR Return Loss Cable Loss (One Port) Distance-to-Fault (DTF) Return Loss Distance-to-Fault (DTF) VSWR Smith Chart 50 Q/ 75 Q (Advanced Mode Only) 1-Port Phase (Advanced Mode Only) Transmission with External Sensor (Advanced Mode Only) | ||||
| Setup Parameters-Classic Mode | |||||
| Measurement Display | Single Display with independent markers | ||||
| Frequency | F1/F2 | ||||
| DTF | D1/D2, DTF Aid, Cable Loss, Propagation Velocity, Cable type | ||||
| Windowing | Rectangular, Normal Side Lobe, Low Side Lobe, Minimum Side Lobe | ||||
| Amplitude | Top, Bottom Auto Scale, Full Scale | ||||
| Sweep | Data Points, Run/Hold, Single/Continuous, RF Immunity (High/Low), RF Power in Hold (On/Off), Trace | ||||
| Data Points | 130, 259, 517, 1033, 2065 | ||||
| Markers | Markers 1 to 6 (On/Off), Delta Markers 2 to 4 (Ref M1), Marker to Peak/Valley, Marker Table, Marker 5 (Peak/Valley between M1 & M2), Marker 6 (Peak/Valley between M3 & M4), Independent Markers for Frequency and Distance Measurements | ||||
| Traces | Copy Trace To Memory, Trace Display, Trace Math [Trace - Memory, Trace + Memory, (Trace + Memory)/2] | ||||
| Limit Line | On/Off, Edit Value, Limit Alarm, Pass/Fail On/Off, Limit Preset | ||||
| Calibration | Start Calibration, Cal Info, Cal Correction (On/Off), Cal Method (OSL, InstaCal™), Cal Type (Standard, FlexCal™) | ||||
| Save/Recall | Setups, Measurements, Screen Shots | ||||
| Setup Parameters-Advanced Mode | |||||
| Measurement Display | Single/Dual Display with independent markers | ||||
| Frequency | Start Frequency (F1), Stop Frequency (F2) | ||||
| DTF | Start Distance (D1), Stop Distance (D2), Units m/ft, DTF Aid, Cable List, Cable Loss, Propagation Velocity | ||||
| Windowing | Rectangular, Normal Side Lobe, Low Side Lobe, Minimum Side Lobe | ||||
| Amplitude | Top, Bottom, Auto Scale, Full Scale | ||||
| Sweep | Data Points, Run/Hold, Single/Continuous, RF Immunity (High/Low), RF Power in Hold (On/Off) | ||||
| Data Points | 130, 259, 517, 1033, 2065 | ||||
| Markers | Markers 1 to 8 (On/Off), Delta Markers 2 to 8 (Ref M1), Marker Tracking (On/Off), Marker to Peak/Valley, Marker Table, Marker 5 & 7 (Peak/Valley between M1 & M2), Marker 6 & 8 (Peak/Valley between M3 & M4), Independent Markers for Frequency and Distance Measurements | ||||
| Traces | Copy Trace to Memory, Trace Display, Trace Math [Trace - Memory, Trace + Memory, (Trace + Memory)/2] | ||||
| Limit Line | Active Limit (Upper/Lower), Limit State (On/Off), Move Active Limit, Edit Segments (42 upper and 42 lower segments maximum), Limit Alarm, Pass/Fail On/Off, Limit Preset | ||||
| Calibration | Start Calibration, Cal Info, Cal Correction (On/Off), Cal Method (OSL, InstaCal™, Transmission, OSL + Transmission), Cal Type (Standard, FlexCal™) | ||||
| Save/Recall | Setups, Measurements, Screen Shots | ||||
| Frequency | |||||
| Frequency Range | 2 MHz to 4 GHz | ||||
| Frequency Accuracy | ± 5 ppm @ 23°C ± 3°C | ||||
| Frequency Resolution | 1 kHz | ||||
| Power | |||||
| Output Power | -3 dBm, typical | ||||
| Interference Immunity | |||||
| On-Channel | +17 dBm outside calibrated sweep range | ||||
| On-Frequency | +13 dBm within calibrated sweep range | ||||
| Measurement Speed | |||||
| Return Loss | < 1.50 ms/data point, RF immunity low, typical | ||||
| Distance-to-Fault | < 1.75 ms/data point, RF immunity low, typical | ||||
| Return Loss | |||||
| Measurement Range | 0 to 60 dB | ||||
| Resolution | 0.01 dB | ||||
| VSWR | |||||
| Measurement Range | 1 to 65 | ||||
| Resolution | 0.01 | ||||
| Cable Loss | |||||
| Measurement Range | 0 to 30dB | ||||
| Resolution | 0.01 dB | ||||
| Distance-to-Fault | |||||
| Vertical Range Return Loss | 0 to 60 dB | ||||
| Vertical Range VSWR | 1 to 65 | ||||
| Fault Resolution (meters) | (1.5 x 108 x vp)/AF (vp = propagation velocity, ∆F is F2 - F1 in Hz) | ||||
| Horizontal Range (meters) | 0 to (Data Points - 1) x Fault Resolution, to maximum of 1500 meters (4921 ft) | ||||
| 1-Port Phase (Advanced Mode Only) | |||||
| Measurement Display Range | -450° to +450° | ||||
| Resolution | 0.01° | ||||
| Smith Chart (Advanced Mode Only) | |||||
| Impedance | 50 Ω, 75 Ω | ||||
| Resolution | 0.01 | ||||
| Transmission Ext Sensor (Advanced Mode Only) | |||||
| Measurement Display Range | -100dB to +100dB | ||||
| Resolution | 0.01dB | ||||
| Measurement Accuracy (at 23°C ± 3 °C) | |||||
| Corrected Directivity |
≥ 38 dB, InstaCal™ calibration ≥ 42 dB, OSL calibration (OSLN50A-8, OSLNF50A-8, OSLN50-1, OSLNF50-1) |
||||
Internal Power Meter |
|||||
| Frequency | Measurement Frequency (for Cal Factor) | ||||
| Amplitude | Max Value, Min Value, Offset Value, Relative On/Off, Units dBm/Watts, Auto Scale, Fullscale | ||||
| Calibration | Zero On/Off | ||||
| Average | Running Average, Max Hold (On/Off), Run/Hold, Average Mode (Continuous/Single) | ||||
| Limits | Limit (On/Off), Upper Value, Lower Value | ||||
| Frequency Range | 50 MHz to 4 GHz | ||||
| Display Range | -100 dBm to +100 dBm | ||||
| Offset Range | Max ± 100 dB, user settable value | ||||
| Measurement Range | -33 dBm to +20 dBm | ||||
| VSWR | 1.5:1 typical | ||||
| Maximum Power | +27 dBm, ± 45 VDC (damage level) | ||||
| Connector | Type N(m), 50 П | ||||
| Accuracy | ± 0.7 dB (0dBm, 1GHz CW, @ 23°C ± 3°C) | ||||
| Frequency Response and Linearity | Additional ± 0.8 dB (± 0.5 dB typical) | ||||
| Temperature Effect | Additional ± 0.02 dB per 1°C change (typical) | ||||
High Accuracy Power Meter(requires external USB Power Sensor) |
|||||
| Amplitude | Maximum, Minimum, Offset, Relative On/Off, Units, Auto Scale | ||||
| Average | # of Running Averages, Max Hold | ||||
| Zero/Cal | Zero On/Off, Cal Factor (Center Frequency, Signal Standard) | ||||
| Limits | Limit On/Off, Limit Upper/Lower | ||||
| Power Sensor Model | MA24105A | MA24106A | MA24108A/18A/26A | MA24208A/18A | MA24330A/40A/50A |
| Description | Inline High PowerSensor | High Accuracy RF Power Sensor | Microwave USB PowerSensor | Microwave Universal USB PowerSensor | Microwave CW USB PowerSensor |
| Frequency Range | 350MHz to 4GHz | 50MHz to 6GHz | 10MHz to 8/18/26GHz | 10MHz to 8/18 GHz | 10MHz to 33/40/50 GHz |
| Connector | Type N(f), 50 Ω | Type N(m), 50 Ω | Type N(m), 50 Ω (8/18GHz) Type K(m), 50 Ω (26GHz) | Type N(m), 50 Ω | Type K(m), 50 Ω (33/40 GHz) Type V(m), 50 Ω (50GHz) |
| Dynamic Range | +3 dBm to +51.76 dBm (2mW to 150W) | -40 dBm to +23 dBm (0.1 pW to 200 mW) | -40 dBm to +20 dBm (0.1 pW to 100mW) | -60dBm to +20dBm (1 nW to 100mW) | -70dBm to +20dBm (0.1 nW to 100 mW) |
| Measurand | True-RMS | True-RMS | True-RMS, Slot Power, Burst Average Power | True-RMS, Slot Power, Burst AveragePower | AveragePower |
| Measurement Uncertainty | ± 0.17 dBa | ±0.16dBb | ±0.18dBc | ±0.17dBd | ±0.17dBe |
| Data sheet | 11410-00621 | 11410-00424 | 11410-00504 | 11410-00841 | 11410-00906 |
| (for complete specifications) | |||||
| Notes: |
a. Expanded uncertainty with K=2 for power measurements of a CW signal greater than +20 dBm with a matched load. Measurement results referenced to the input side of the sensor. b. Total RSS measurement uncertainty (0 °C to 50 °C) for power measurements of a CW signal greater than -20 dBm with zero mismatch errors. c. Expanded uncertainty with K=2 for power measurements of a CW signal greater than -20dBm with zero mismatch errors. d. Power uncertainty expressed with two sigma confidence level for CW measurement after zero operation. Includes calibration factor and linearity over temperature uncertainties, but not the effects of mismatch, zero set and drift, or noise. e. Includes linearity over temperature uncertainties, but not the effects of calibration factor, mismatch, zero set and drift, and noise. |
||||
Video Inspection Probe(Requires external USB Video Inspection Probe, sold separately) |
|||||
| Setup Parameters | |||||
| Probe Models | G0306A or G0306B 400X USB Visual Inspection Probe | ||||
| Tip Type (included with G0306A) | SC_APC_F:, SC_PC_F:, LC_PC_F:, FC_PC_F:, 2.5APC_M:, 2.5PC_M:, 1.25PC_M: | ||||
| Test Profile (IEC 61300-3-35) | SM PC >45:, SM APC:, SM PC >25:, MM PC 62.5:, MM PC 50.0: | ||||
| Auto Analyze | On/Off | ||||
| Auto Filename | On/Off | ||||
| Auto Filename Settings | Location, File Prefix, Start Number, Include Date | ||||
| Measurement Parameters | |||||
| Live | View Live Image | ||||
| Captured | Capture Image for Analysis | ||||
| Analyze | Analyze Image | ||||
| Results Table | Auto/Off | ||||
| Overlay | On/Off | ||||
| Zoom Control Help | Displays instruction for image Zoom feature | ||||
| Save/Recall Parameters | |||||
| Save | Measurement (*.vipi), VIP Image (*.png), Screen Shot (.png) | ||||
| Recall | Measurement (*.vipi), VIP Image (*.png), Screen Shot (.png) | ||||
| File Management | Rename, Create Folder, Copy, Paste, Delete | ||||
| Report Parameters | |||||
| Header Settings | Customer, Project, Operator, Notes, Include Logo | ||||
| Generate Report | Generates pdf report with options to include multiple *.vipi files | ||||
General Specifications |
|||||
| Setup Parameters System Info | Status, Battery | ||||
| System Setups | Date/Time, Language, Display/Audio | ||||
| Date/Time | Time and Date Settings, Time Zone Settings | ||||
| Language | English, French, German, Italian, Spanish, Russian, Portuguese, Japanese, Korean, Chinese | ||||
| Display/Audio | Brightness, Color Schemes, Screen Shot Settings, Volume | ||||
| Connectivity | GPS, Ethernet Configuration (DHCP/Static) | ||||
| Diagnostics | Self Test | ||||
| Preset | Preset, Reset, Upd ate Firmware | ||||
| Reset | Factory Reset, Delete All User Files, Delete Custom Files, Master Reset | ||||
| File | Save, Recall, File Management | ||||
| Save | Measurement (*.dat), Setup (*.stp), Screen Shot (*.png) | ||||
| Recall | Recall, Create Folder, Copy, Paste, Delete | ||||
| File Management | Rename, Create Folder, Copy, Paste, Delete | ||||
| Navigation | Top, Bottom, Page Up, Page Down | ||||
| Help Menu | System Info, FAQ, User Guide | ||||
| Internal Trace/Setup Memory | > 1000 files (files may be traces, setups, screen shots, or any combination) | ||||
| External Trace/Setup Memory | Limited only by size of USB Flash drive | ||||

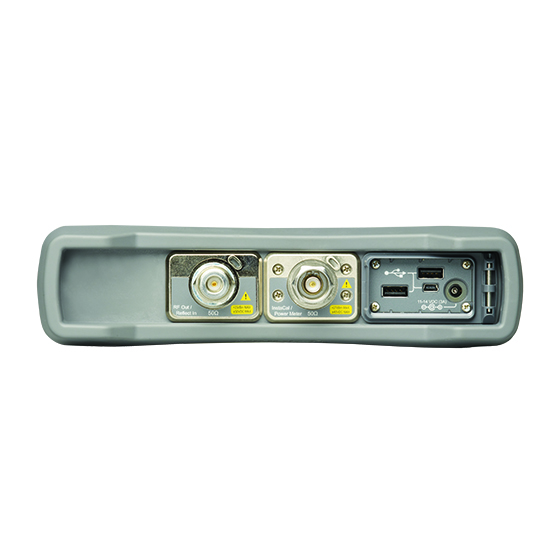

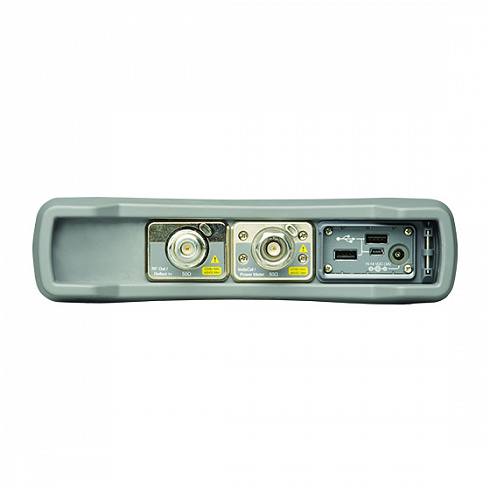

| Connectors | |||||
| RF Out/Reflect In | Type N, female, 50 Ω, Maximum Input +42 dBm, ± 50 VDC | ||||
| InstaCal™/Power Meter | Type N, male, 50 Ω, Maximum Input +27 dBm, ± 45 VDC (Damage Level) | ||||
| External Power | 5.5 mm barrel connector, 11 to 14 VDC, < 3.0A | ||||
| USB Ports | USB 2.0 Type A (two ports) | ||||
| USB Interface | Type mini-B, Connect to PC for data transfer | ||||
| Display | |||||
| Type | TFT Resistive Touch Screen | ||||
| Size | 7.0 in daylight viewable color LCD | ||||
| Resolution | 800 x 480 | ||||
| Pixel Defects | No more than five defective pixels (99.9986% good pixels) | ||||
| GPS Connectivity (external GPS USB module sold separately) | |||||
| GPS Time/Location Indicator | Time, Latitude, Longitude and Altitude in GPS dialog (current or last known location) Time, Latitude, Longitude and Altitude with trace storage (current or last known location) | ||||
| Setup | Clear Data, Synchronize system time to GPS | ||||
| Battery | |||||
| Type | Li-Ion | ||||
| Battery Operation | > 8.0 Hours typical (70 % brightness setting, continuous usage) | ||||
| Standby | 7 days typical (With fully charged battery. Actual time will vary depending on battery charge level) | ||||
| Regulatory Compliance | |||||
| European Union | EMC 2014/30/EU, EN 61326:2013, CISPR 11/EN 55011, IEC/EN 61000-4-2/3/4/5/6/8/11 Low Voltage Directive 2014/35/EU Safety EN 61010-1:2010 RoHS Directive 2011/65/EU applies to instruments with CE marking placed on the market after July 22, 2017 | ||||
| Australia and New Zealand | RCM AS/NZS 4417:2012 | ||||
| South Korea | KCC-REM-A21-0004 | ||||
| Environmental | MIL-PRF-28800F Class 2 | ||||
| Operating Temperature Range | -10 °C to 55 °C | ||||
| Storage Temperature Range | -51 °C to 71 °C | ||||
| Maximum Relative Humidity | 95% RH at 30 °C, non-condensing | ||||
| Vibration, Sinusoidal | 5 Hz to 55 Hz | ||||
| Vibration, Random | 10 Hz to 500 Hz | ||||
| Half Sine Shock | 30 gn | ||||
| Altitude | 4600 meters, operating and non-operating | ||||
| Explosive Atmosphere | MIL-PRF-28800F Section 4.5.6.3 MIL-STD-810G, Method 511.5, Procedure 1 | ||||
| Size and Weight | |||||
| Size | 250 mm x 177mm x 61mm (10.0in x 7.1 in x 2.4in) | ||||
| Weight | < 2.0 kg (4.4lb), including battery | ||||

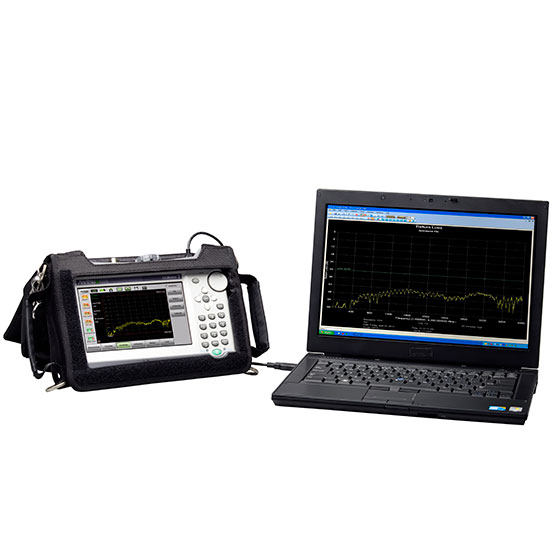

Anritsu Tool Box and Line Sweep Tools(for your pc) |
|||||
| Line Sweep Tools (LST) is a free PC based program that increases productivity for people who deal with numerous Cable and Antenna traces every day. LST is the next generation of Anritsu's familiar Handheld Software Tools (HHST) and shares its uncomplicated user interface, giving a new face to the term “ease of use.” | |||||
| Cable Editor1 | Instrument Cable Lists may be retrieved fr om the instrument, modified as required, and uploaded back into instrument. | ||||
| Distance to Fault2 (DTF) | Easily convert Return Loss or VSWR traces to Distance to Fault traces with one button press. | ||||
| Measurement Calculator | Provides quick conversion between commonly used measurement units such as VSWR, RL, and others. | ||||
| Signal Standard Editor1 | Signal Standard Lists may be retrieved fr om the instrument, modified as required, and uploaded back into instrument. | ||||
| Naming Grid | A naming grid function makes changing file names, trace titles, and trace subtitles from field values to those required by contract simple and quick. Once the naming grid is populated with user defined file name segments, a few simple button presses will then fill out the file, title, and sub-title names. Quickly applied to multiple traces, the naming grid can save time, increase efficiency and accuracy. | ||||
| Presets | Presets make applying markers and a lim it line to similar traces quick and easy. They only need to be se t once, and recorded. After this, applying them to a similar trace requires only one button push. This speeds up trace processing and makes providing consistent marker and lim it line settings easy. | ||||
| Report Generator | The report generator creates a professional PDF or HTML based report. Reports may include GPS3 location, power level3, company logo4, instrument and calibration status along with a display of all open traces. It also may contain additional information such as addresses and phone numbers. | ||||
| Capture | Plots to Screen, Database, *.dat, *.jpg | ||||
| Connect | To PC using USB, Ethernet, Serial | ||||
| Download/Upload1 | Lists/measurements and live traces to PC for storage and analysis. | ||||
| Supported File Types | Input: *.dat, *.vna, *.mna, *.pim, *.tm Output: *.dat, *.vna, *.pim, *.tm, *.csv, *.bmp, *.jpg, *.png | ||||
easyTest Tools(for your rc) |
|||||
| Instrument Mode | |||||
| Cable & Antenna Analyzer Mode | |||||
| Commands | |||||
| Display Image | Allows putting a custom image on the instrument screen | ||||
| Recall Setup | Places the instrument into a known state | ||||
| Prompt | Displays instructional messages on the instrument screen | ||||
| Save | Allows automatic or manual saving of traces | ||||
| Connectivity | |||||
| Connections | USB cable or USB memory stick | ||||
Документы
Anritsu S331L Brochure
13.9 Мб
Описание
| Опции | Описание |
| S331L-ES510 | Гарантия |
| S331L-ES513 | Гарантия с калибровкой в соотвествии Z540 |
| S331L-0098 | Стандартная калибровка в соответствии с ISO/IEC 17025:2005 |
| S331L-0099 | Премиум калибровка в соответствии с ISO/IEC 17025:2005 + тестовые данные |
| MA24105A | Направленный измеритель мощности, USB-интерфейс, 350 МГц - 4 ГГц, +3 дБм - +51,76 дБм |
| MA24106A | Измеритель мощности нагрузочного типа, 50 МГц - 6 ГГц, +23 дБм - -40 дБм |
| MA24108A | СВЧ USB Измеритель мощности нагрузочного типа, 10 МГц - 8 ГГц, +20 дБм - -40дБм |
| MA24118A | СВЧ USB Измеритель мощности нагрузочного типа, 10 МГц - 18 ГГц, +20 дБм - -40дБм |
| MA24126A | Микроволновый USB Измеритель мощности10 МГц - 26 ГГц, +20 дБм - -40дБм |
| MA24208A | Микроволновый USB Измеритель мощности 10 МГц - 8 ГГц, +20 дБм - -60дБм |
| MA24218A | Микроволновый USB Измеритель мощности 10 МГц - 18 ГГц, +20 дБм - -60дБм |
| MA24330A | Микроволновый CW USB Измеритель мощности 10 МГц - 33 ГГц, +20 дБм - -70дБм |
| MA24340A | Микроволновый CW USB Измеритель мощности 10 МГц - 40 ГГц, +20 дБм - -70дБм |
| MA24350A | Микроволновый CW USB Измеритель мощности 10 МГц - 50 ГГц, +20 дБм - -70дБм |
| SC8268 | USB-преобразователь коэффициента передачи, K(m), 1 МГц - 40 ГГц, +10 дБм - -50 дБм |
| MA25100A | Индикатор РЧ-мощности |
| OSLN50A-8 | Прецизионный ХХ/КЗ/Нагрузка, N(m), 42 дБ, 0 - 8.0 ГГц, 50 O |
| OSLNF50A-8 | Прецизионный ХХ/КЗ/Нагрузка, N(f), 42 дБ, 0 - 8.0 ГГц, 50 O |
| SM/PL-1 | Прецизионная Нагрузка, N(m), 42 дБ, 0 - 6.0 ГГц |
| SM/PLNF-1 | Прецизионная Нагрузка, N(f), 42 дБ, 0 - 6.0 ГГц |
Модели
| Модели | Описание |
| S331L | Анализатор антенн и фидерных линий Site Master™ с диапазоном частот от 2 МГц до 4 ГГц |
