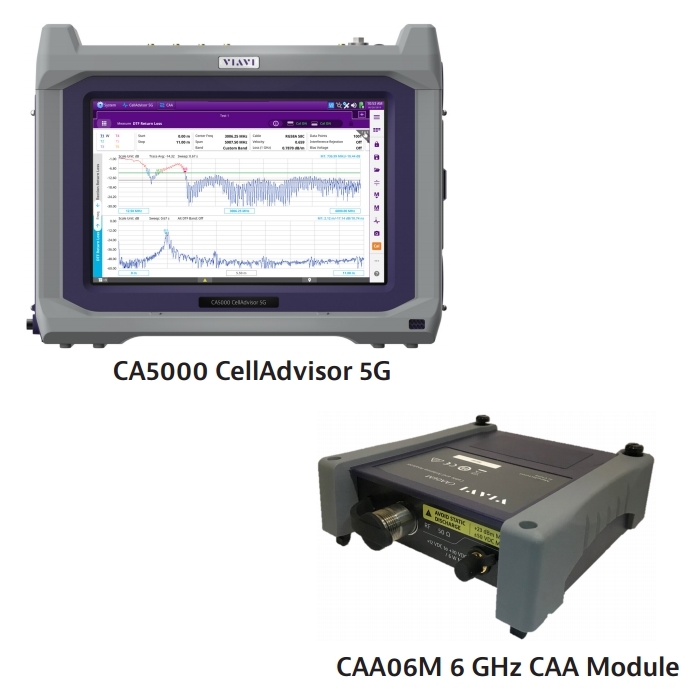

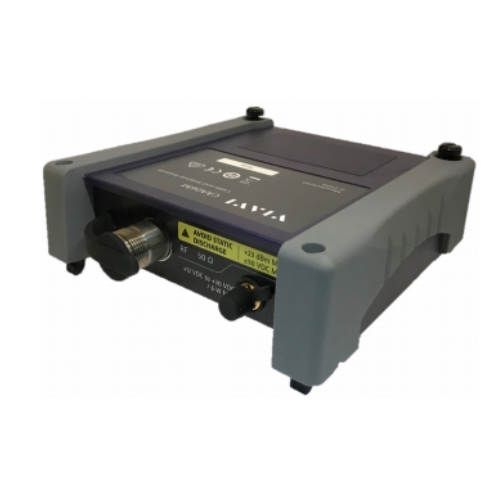

Модуль VIAVI CAA06M анализатора VIAVI CA5000 для тестирования инфраструктуры сотовой связи
Подробнее
Описание
Большинство проблем в мобильных сетях возникает в инфраструктуре базовой станции, состоящей из антенной системы, кабелей и разъемов. Очень важно иметь оптимальный инструмент для правильного обслуживания или установки сотовых станций. Анализатор Viavi CAA06M - оптимальное решение для тестирования инфраструктуры сотовой связи благодаря простоте использования и богатой функциональности. Анализатор CAA06M имеет все функции измерения, необходимые для точной проверки линии передачи и антенной системы объекта, от отражений сигнала (КСВН или обратные потери) до функции измерения DTF (расстояние до места повреждения).
Характеристики
| Frequency | |
| Frequency range | 12.5 MHz to 6 GHz |
| Frequency resolution | 1 kHz |
| Frequency accuracy | ±2.5 ppm @25°C |
| Aging per year | ±1 ppm |
| Data points | |
| 126, 251, 501, 1001, 2001 | |
| Measurement bandwidth | |
| 10 kHz | |
| Measurement accuracy after OSL calibration | |
| Corrected directivity | > 42 dB |
| Reflection uncertainty | ±(0.3 + |20log (1 + 10-EP/20)|) typical EP = directivity – measured return loss |
| Measurement Accuracy after EZ-Cal calibration | |
| Corrected directivity | > 38 dB (≤ 4 GHz) > 33 dB (> 4 GHz) |
| Reflection uncertainty | ±(0.3 + |20log (1 + 10-EP/20)|) typical (≤ 4 GHz) ±(1 + |20log (1 + 10-EP/20)|) typical (> 4 GHz) EP = directivity – measured return loss |
| Output power | |
| High | 0 dBm nominal |
| Low | -30 dBm nominal |
| Maximum input level | |
| Average continuous power | 23 dBm nominal |
| DC voltage | ±50 V DC |
| Interference immunity | |
| On channel | 15 dBm @ ≥ 1.3 MHz |
| On frequency | 15 dBm within 100 kHz |
Документы
Viavi CAA06M Specification
424.3 Кб
Описание
Модели
| Модель | Описание |
| CAA06MA | CAA06M 6 GHz cable and antenna analyzer module - Requires CA5000-DMC for CA5000 CellAdvisor 5G users - Auto detectable by main instrument when mounted to dual module carrier |
| CAA06MB | CAA06M 6 GHz cable and antenna analyzer module with bias power and external bias-tee - Required CA5000-DMC for CA5000 CellAdvisor 5G users - Includes G700050653 external bias-tee device and cable - Auto detectable by main instrument when mounted to dual module carrier |
| CA5000-DMC | Dual Module Carrier with Dummy Module for CellAdvisor 5G - Includes C10-DMC and C2K-EMPTYMOD |
| CAA06M-CR | CAA module calibration report |
| Опции | Описание |
| CA5000-S005 | 2 Port transmission measurement |
| CA5000-S006 | RF CW source |
| JD78050507 | Dual port Type-N 6 GHz calibration kit - Includes JD78050509 Y-calibration kit (1), G700050530 RF Cable (2), and G700050575 RF Adapter (2) |
| JD78050508 | Dual port DIN 6 GHz calibration kit - Includes JD78050510 Y-calibration kit (1), G710050536 RF Cable (2), and G700050572 RF Adapter (2) |
| JD78050509 | Y-Calibration kit, Type-N(m), DC to 6 GHz, 50 W - Included in JD78050507 |
| JD78050510 | Y-Calibration kit, DIN(m), DC to 6 GHz, 50 W - Included in JD78050508 |
| JD70050509 | EZ-Cal kit, Type-N(m), DC to 6 GHz, 50 W |
| G700050530 | RF cable DC to 8 GHz Type-N(m) to Type-N(m), 1.0 m - Included in JD78050507 |
| G700050531 | RF cable DC to 8 GHz Type-N(m) to Type-N(f), 1.5 m |
| G700050532 | RF cable DC to 8 GHz Type-N(m) to Type-N(f), 3.0 m |
| G710050536 | RF cable DC to 6 GHz Type-N(m) to DIN(f), 1.5 m - Included in JD78050508 |
| G700050540 | Phase-stable RF cable w grip DC to 6 GHz Type-N(m) to Type-N(f), 1.5 m |
| G700050541 | Phase-stable RF cable w grip DC to 6 GHz Type-N(m) to DIN(f), 1.5 m |
| G700050571 | Adapter Type-N(m) to DIN(f), DC to 7.5 GHz, 50 W |
| G700050572 | Adapter DIN(m) to DIN(m), DC to 7.5 GHz, 50 W -Included in JD78050508 |
| G700050573 | Adapter Type-N(m) to SMA(f) DC to 18 GHz, 50 W |
| G700050574 | Adapter Type-N(m) to BNC(f), DC to 4 GHz, 50 W |
| G700050575 | Adapter Type-N(f) to Type-N(f), DC to 18 GHz 50 W - Included in JD78050507 |
| G700050576 | Adapter Type-N(m) to DIN(m), DC to 7.5 GHz, 50 W |
| G700050577 | Adapter Type-N(f) to DIN(f), DC to 7.5 GHz, 50 W |
| G700050578 | Adapter Type-N(f) to DIN(m), DC to 7.5 GHz, 50 W |
| G700050579 | Adapter DIN(f) to DIN(f), DC to 7.5 GHz, 50 W |
| G700050580 | Adapter Type-N(m) to Type-N(m), DC to 11 GHz 50 W |
| G700050581 | Adapter N(m) to QMA(f), DC to 6.0 GHz, 50 W |
| G700050582 | Adapter N(m) to QMA(m), DC to 6.0 GHz, 50 W |
| G700050583 | Adapter N(m) to 4.1/9.5 MINI DIN(f), DC to 6.0 GHz, 50 W |
| G700050584 | Adapter N(m) to 4.1/9.5 MINI DIN(m), DC to 6.0 GHz, 50 W |
| G700050585 | Adapter N(m) to 4.3-10(f), DC to 6.0 GHz, 50 W |
| G700050586 | Adapter N(m) to 4.3-10(m), DC to 6.0 GHz, 50 W |
| G700050587 | Adapter N(f) to SMA(f), DC to 18 GHz, 50 W |
| G710050581 | Attenuator 40 dB, 100 W, DC to 4 GHz (unidirectional) |
| G700050653 | Bias-Tee, N(m), N(f), BNC(f), 2.5 to 6000 MHz, 1W with 250 mm BNC(f) to SMA(m) Cable - Included in CAA06MB |
