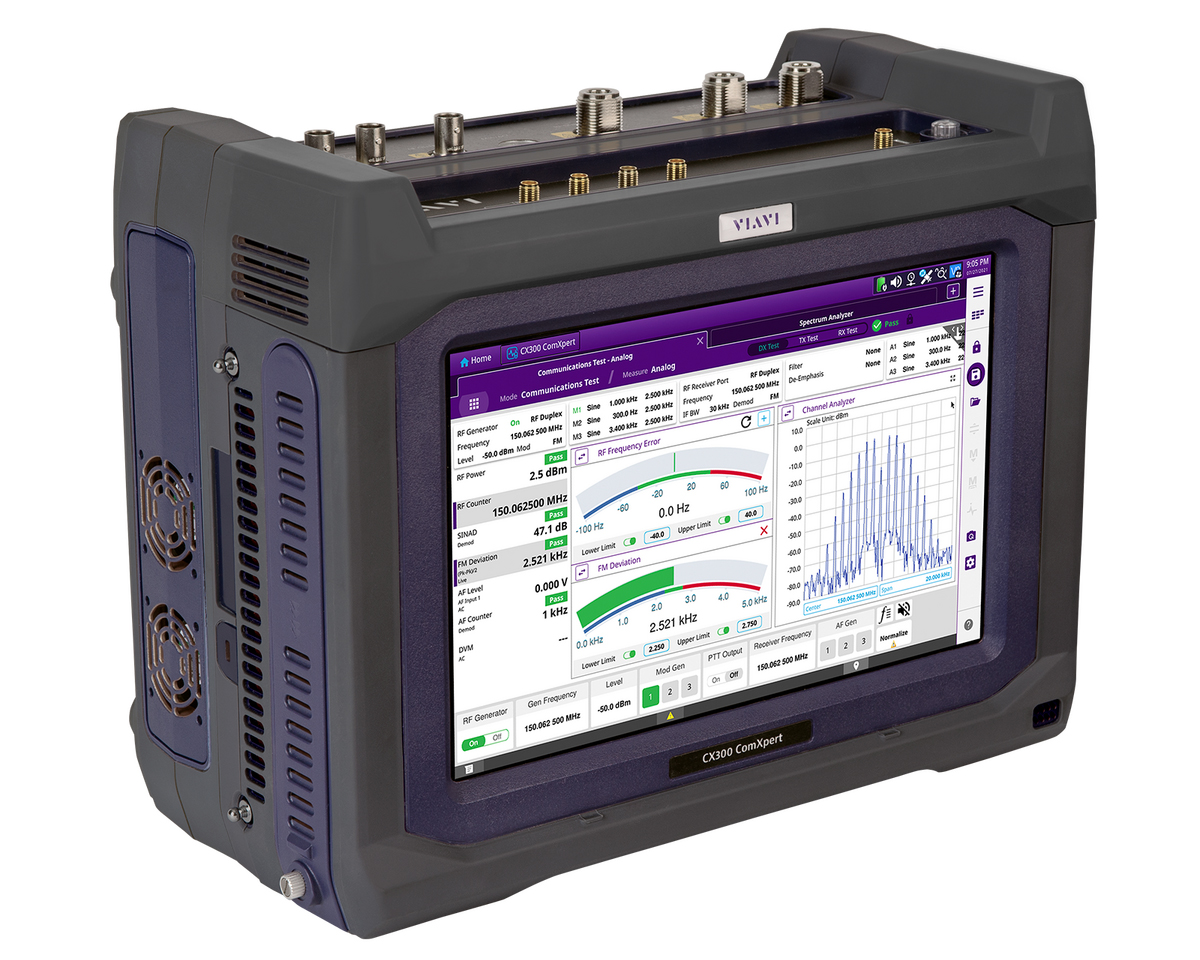

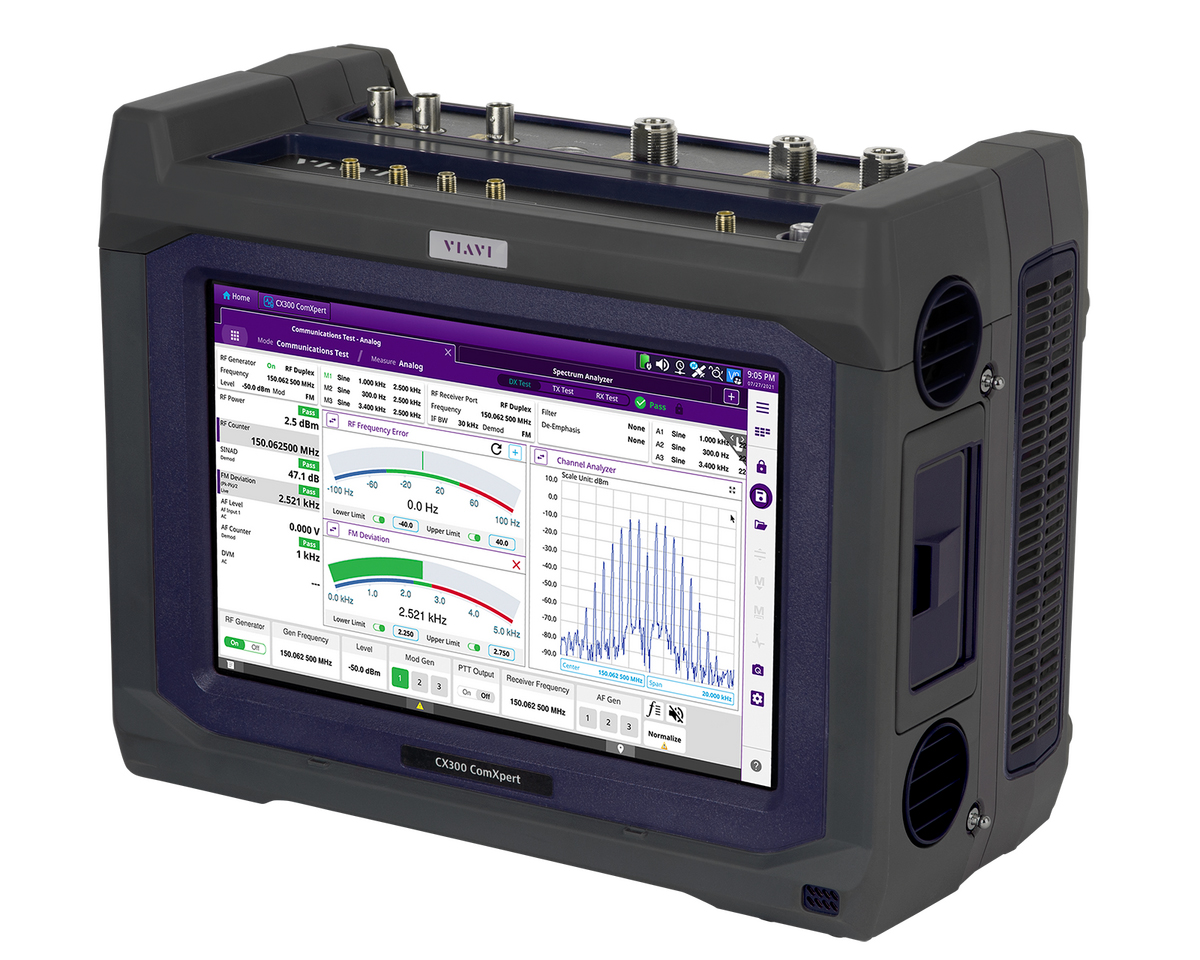

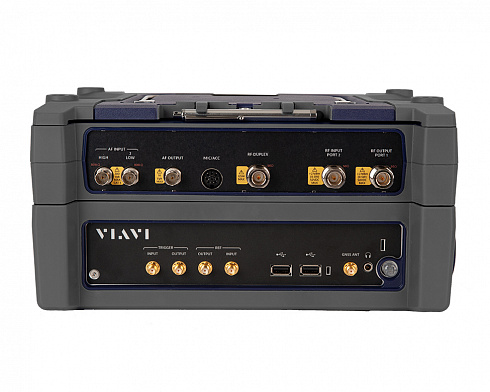

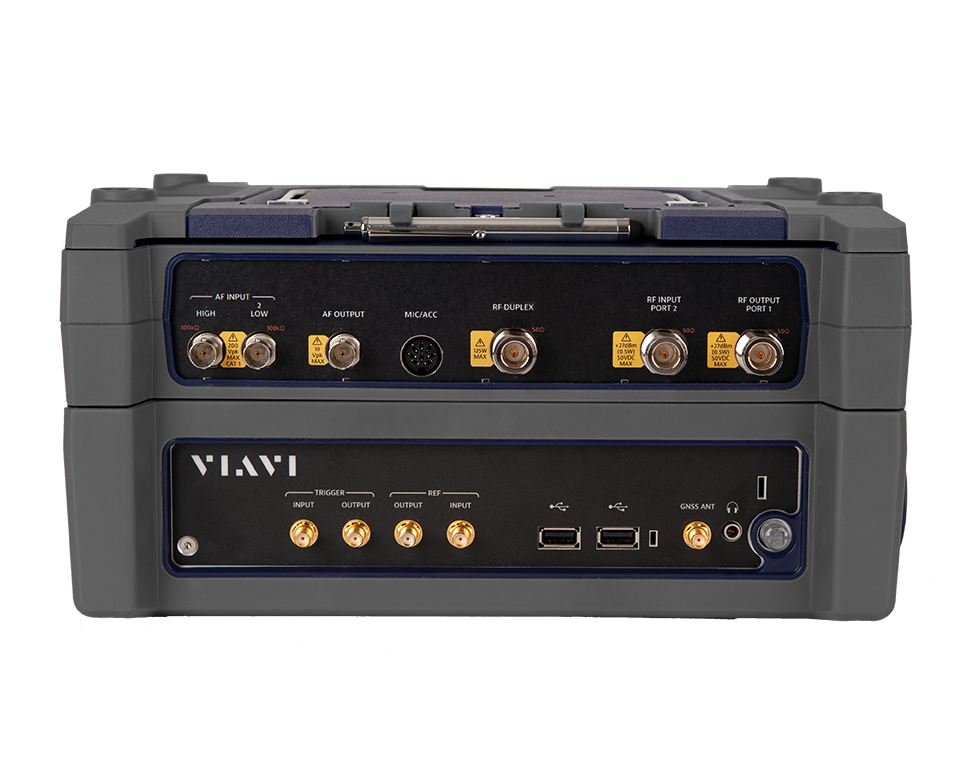

Комплексное решение для тестирования систем связи VIAVI CX300 ComXpert
Подробнее
Описание
VIAVI CX300 ComXpert — это комплексное решение для тестирования систем радиосвязи и простой в использовании инструмент, помогающий современным радиотехникам решать самые сложные задачи. Компактный размер и прочный форм-фактор делают CX 300 единственным в своем роде портативным прибором, обеспечивающим возможность получения технических характеристик в полевых условиях на уровне лаборатории. Испытайте совершенно новый уровень тестирования систем радиосвязи с помощью платформы CX300.

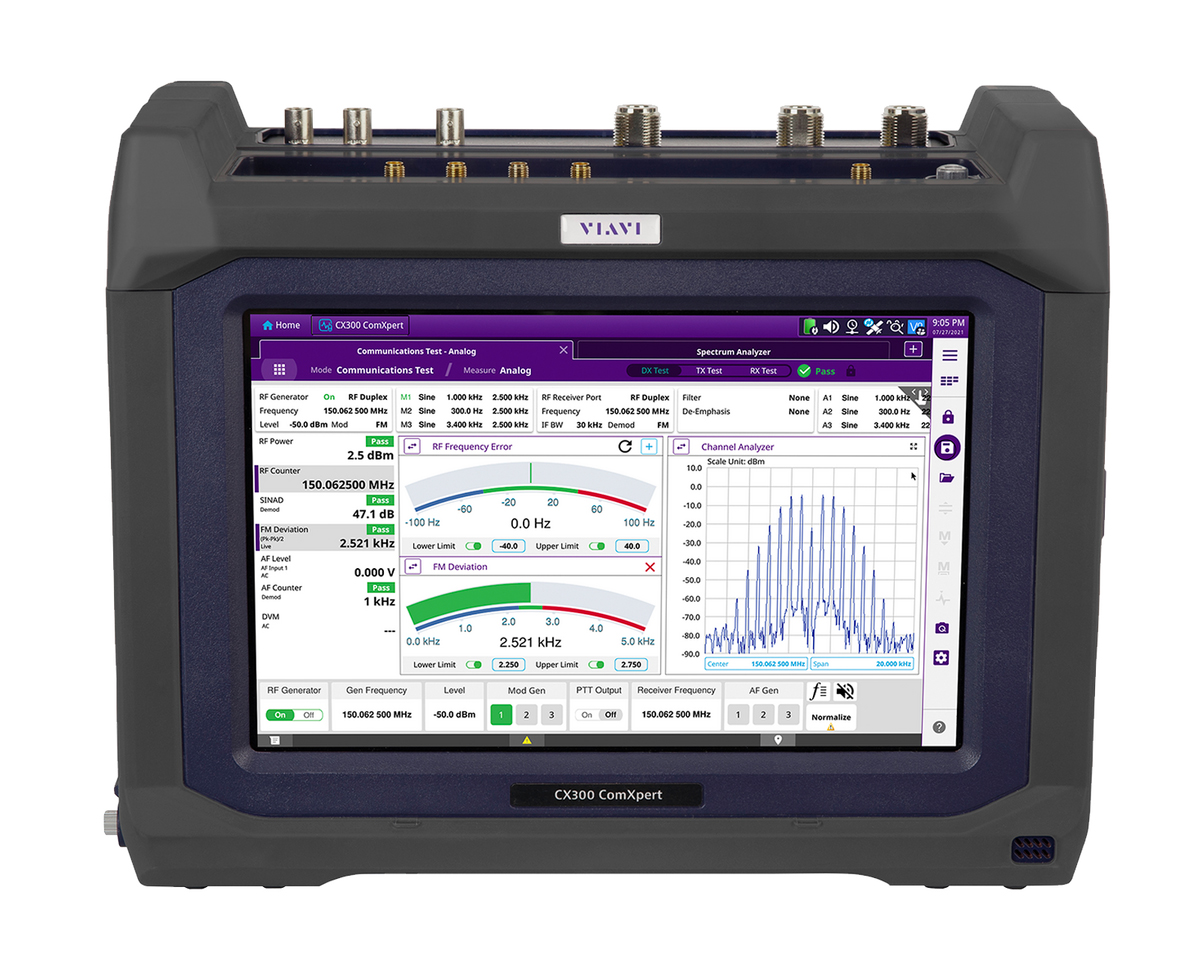

Платформа VIAVI CX 300 оснащена большим цветным сенсорным экраном с инновационным пользовательским интерфейсом. Несколько вкладок обеспечивают возможность мгновенно переключаться между режимами тестирования без необходимости изменения настроек. А напоминающий браузер интерфейс позволяет переключаться между тестами одним нажатием кнопки.
Интерфейс также имеет набор цветовой кодировки для результатов тестирования. И обеспечивает полное тестирование как аналоговых, так и цифровых сетей. Индивидуальные и общие флажки "пройдено/не пройдено" еще больше упрощают получение результатов тестирования — "годен/не годен".
Пакет приложений VIAVI для автоматизации и центровки тестирований является одной из опций для CX300. Нашим приложениям доверяют производители радиоаппаратуры и сервисные центры по всему миру.Приложения помогают выполнять быстрые, воспроизводимые контрольно-измерительные испытания и настройку в соответствии со спецификациями технического обслуживания конкретного OEM-производителя.
Легко сохраняйте результаты ручных и автоматизированных тестирований и получайте доступ к ним с помощью VIAVI StrataSync StrataSync —облачное решение, которое позволит управлять измерительными приборами, отслеживать их состояние, собирать и анализировать результаты из любой точки мира. Использование беспроводной технологии в CX300 позволит снизить рабочую нагрузку загружая результаты тестирований в облако или обновляя программное обеспечение платформы до последней версии.
Характеристики
| General | |
| Display | |
| Size | 10 in (25.4 cm) |
| Timebase | |
| Accuracy | 0.02 ppm (0°C to 50°C) |
| Aging | ±1 ppm/year |
| Warm-up time | 3 minutes: within ±0.01 ppm |
| Accuracy with GPS |
±25 ppb (GPS Lock) ±50 ppb (Hold over 72 hours) |
| External Reference | 10 MHz |
| RF Generator | |
| Frequency | |
| Range |
100 kHz to 3GHz (Standard) 3 GHz to 6 GHz (CX300-F6GHz) |
| Resolution | 1 Hz |
| Accuracy | Same as timebase |
| Output Level | |
| RF Duplex Port Range | -140 dBm to -30 dBm (10 MHz to 1 GHz); -37 dBm for AM and Complex modulation |
| RF Output Port Range | -130 dBm to +17 dBm (10 MHz to 1 GHz); +10 dBm for AM and Complex modulation |
| Resolution | 0.1 dB |
| Accuracy |
±1.0 dB (output level >-120 dBm, 1 MHz to 6 GHz) ±2.0 dB (output level >-130 dBm, 1 MHz to 6 GHz) ±1.0 dB typical |
| Bandwidth | 100 MHz |
| VSWR | |
| RF Duplex Port | <1.1 (1 MHz to 1 GHz); <1.2 (1 GHz to 6 GHz) |
| RF Output Port | <1.4 (1 MHz to 1 GHz); <1.5 (1 GHz to 6 GHz) |
| Spectral Purity | |
| Phase Noise |
-112 dBc/Hz at 10 kHz offset at 500 MHz -110 dBc/Hz at 10 kHz offset at 1000 MHz |
| Harmonics | -35 dBc |
| Non- Harmonics | -45 dBc |
| Residual AM | <0.1% rms |
| Residual FM | <3 Hz rms 300 Hz to 3 kHz |
| Analog Modulation | |
| Modulation | |
| Modes | AM, FM, PM, SSB |
| Frequency Range | 20 Hz to 20 kHz |
| Distortion | <1% THD |
| AM | |
| Range | 0% to 100% |
| Resolution | 0.1% |
| Accuracy (internal source) | <±5% of settings |
| FM | |
| Range | 0 Hz to 100 kHz |
| Resolution | 1 Hz |
| Accuracy (internal source) | <±2.5% of setting with frequency response of ±0.5 dB 20 Hz to 10 kHz |
| PM | |
| Range | 0 rad to 6.3 rad |
| Resolution | 0.1 rad |
| Accuracy | <±2.5% of setting with frequency response of ±0.5 dB 20 Hz to 10 kHz |
| SSB | |
| Modulation frequency | 30 Hz to 20 kHz |
| Carrier suppression | >70 dB |
| Sideband suppression | >60 dB |
| Internal Modulation Sources | |
| Number of sources | 3 |
| Sources | |
| Waveforms | Sine, Square, DTMF, CTCSS, DCS, Two-Tone, Tone Remote, Tone Sequential |
| Sine Wave | |
| Range | 20 Hz to 20 kHz |
| Resolution | 0.1 Hz |
| Square Wave | |
| Range | 20 Hz to 20 kHz |
| CTCSS tone | Tone 1 (67) to Tone 50 (254.1) Hz |
| Distortion | THD <1.0% |
| Frequency Response | Level flatness <0.5 dB 20 Hz to 10 kHz |
| RF Receiver | |
| Frequency | |
| Range |
9 kHz to 3 GHz (Standard) 3 GHz to 6 GHz (CX300-F6GHz) |
| Maximum Input Level | |
| RF Input Port Maximum Input Level |
+27 dBm (500 mW) max preamp and frequency >1 MHz |
| +13 dBm (20 mW) max preamp on or frequency <1 MHz | |
| RF Duplex Port Maximum Input Level | +47 dBm (50 Watts) continuous, +<35°C |
| +51 dBm (125 Watts) Cyclical (Max “ON” of 30 sec and Min “OFF” for 90 sec) for power levels >50 Watts | |
| Shutdown | Alarm sounds (no auto shutdown) |
| VSWR | |
| RF Duplex Port | <1.2 (100 kHz to 1 GHz) |
| RF Input Port | <1.6 (100 kHz to 1 GHz) with 10 dB input attenuation |
| Harmonic Response | |
| Spurious Response |
Input related <-65 dBc typical Non-input related <-95 dBm typical |
| Phase Noise |
-112 dBc/Hz at 10 kHz offset at 500 MHz -110 dBc/Hz at 10 kHz offset at 1000 MHz |
| Dynamic Range | 2/3 * (TOI-DANL) = 109 dB |
| TOI | +20 dBm (0 atten), >+1 dBm (preamp), 1 MHz to 1 GHz |
| DANL | 1 Hz RBW @ 1 GHz; <-144 dBm (0 atten), <-162 dBm (preamp) |
| Sensitivity | |
| Analog | 10 dB SINAD, <-105 dBm with preamp (300 Hz to 3 kHz audio filter, 2.5 kHz FM deviation, 12.5 kHz IF BW) |
| Bandwidth | 100 MHz (wideband VSA), 8 MHz (narrowband) |
| RF Bandpass Filter (IF Filters) | 5 kHz, 6.25 kHz, 8.33 kHz, 10 kHz, 12.5 kHz, 25 kHz, 30 kHz, 100 kHz, 300 kHz |
| Power Meter | |
| Frequency | |
| Range |
100 kHz to 3 GHz (Standard) 3 GHz to 6 GHz (CX300-F6GHz) |
| Measurement Modes | RMS, average RMS, minimum, maximum |
| Bandwidth | 5 kHz, 6.25 kHz, 8.33 kHz, 10 kHz, 12.5 kHz, 25 kHz, 30 kHz, 100 kHz, and 300 kHz |
| Level | |
| RF Duplex Port | -20 dBm to +51 dBm |
| RF Input Port | -60 dBm to +10 dBm |
| Accuracy | |
| RF Duplex Port | ±0.4 dB (1 MHz to 1 GHz); ±0.6 dB (1 GHz to 6 GHz) |
| RF Input Port | ±0.8 dB (1 MHz to 1 GHz), ±0.9 dB (1 GHz to 6 GHz) |
| RF Error Meter | |
| Frequency | |
| Range |
100 kHz to 3 GHz (Standard) 3 GHz to 6 GHz (CX300-F6GHz) |
| Resolution | 1 Hz |
| Accuracy | Frequency Reference |
| Input Level Range | |
| RF Duplex Port | -20 dBm to 51 dBm |
| RF Input Port | -60 dBm to +17 dBm (-80 dBm to -20 dBm w/ pre-amp) |
| Analog Demodulation Measurements | |
| FM | |
| Modes | RMS, RMS*√2, +PK, -PK, ±PK/2 |
| Measurement Range | 0 Hz to 75 kHz |
| Accuracy |
±1.0% for rate >1.5 kHz and <3 kHz ±2.0% otherwise |
| FM Distortion |
±0.5% for rate <3 kHz ±1.0% otherwise |
| Residual FM | <3 Hz (300 Hz to 3 kHz) and frequency <1 GHz |
| AF Frequency Range | 10 Hz to 20 kHz |
| AM | |
| Modes | RMS, RMS*√2, +PK, -PK, ±PK/2 |
| Measurement Range | 0% to 100% |
| Accuracy | ±1.0% for rate >1.5 kHz and <3 kHz ±2% |
| AM Distortion |
±0.5% for rate <3 kHz ±1.0% otherwise |
| AF Frequency Range | 10 Hz to 20 kHz |
| Residual AM | <0.1% (300 Hz to 3 kHz) |
| PM | |
| Range | 0 radians to 6.3 radians |
| Resolution |
0.01 rad for <5 rad 0.1 rad for >5 rad |
| Accuracy | ±2.0%, ±1.0% (rate 1.5 kHz to 3 kHz) |
| SSB | |
| Modes | SSB-USB, SSB-LSB |
| Measurement Range | Frequency error, Power (RMS), Power (PEP) |
| Audio and Demodulation Meters | |
| Distortion Meter | |
| Frequency Range | 50 Hz to 10 kHz |
| Measurement Range | 0% to 100% |
| Accuracy | <3% of reading +0.1% distortion, 1% to 20% |
| SINAD Meter | |
| Frequency Range | 50 Hz to 10 kHz |
| Measurement Range | 0 dB to 63 dB |
| Accuracy | <±1 dB |
| S/N Meter | |
| Frequency Range | 50 Hz to 10 kHz |
| Measurement Range | 0 dB to 63 dB |
| Accuracy | <1 dB |
| AF Counter | |
| Frequency Range | 50 Hz to 10 kHz |
| Accuracy | Timebase ±1 Hz |
| AF Tones Analyzer | |
| Modes | DTMF, DCS, CTCSS, Two-Tone, Tone Sequential, Tone Remote |
| Audio Level Meter | |
| Input Impedance | 100 kΩ, 600 Ω |
| Level | |
| Range | 0 Vrms to 30 Vrms |
| Audio Analyzer | |
| Frequency Range | DC to 100 kHz |
| Frequency Resolutions | 0.8 Hz to 2.4 Hz RBW |
| FFT Windows | Flat top, rectangular, Hamming, Hann, Blackman- Harris |
| Level | |
| Range | 50 mVrms to 30 Vrms |
| Accuracy | ±5% (Audio) ±1% (DC) |
| Audio Filters | |
| Lowpass | 300 Hz, 3 kHz, 3.4 kHz, 5 kHz, 15 kHz, 20 kHz |
| Highpass | 20 Hz, 50 Hz, 300 Hz |
| Other | C-MSG, CCITT, A-Weighted, C-Weighted |
| De-emphasis | 75 µs, 750 µs |
| FFT / Channel Analyzer | |
| Span | 2 kHz to 8 MHz |
| IF Bandwidth | 10 MHz |
| RBW | 1 Hz to 50 kHz |
| Detector | Normal, positive peak, negative peak, sample, average (RMS) |
| Accuracy |
RF Duplex Port: ±0.7 dB (1 MHz to 1 GHz), ±1 dB (1 GHz to 6 GHz) for level >-10 dBm RF Input Port: ±1.0 dB (1 MHz to 1 GHz), ±1.1 dB (1 GHz to 6 GHz) for level >-50 dBm |
| Spectrum Analyzer | |
| Frequency Range |
9 kHz to 3 GHz (Standard) 3 GHz to 6 GHz (CX300-F6GHz) |
| RBW Range | 100 Hz to 5 MHz |
| Span Range | 0 Hz to (9 kHz to max frequency of each band) |
| VBW Range | 100 Hz to 5 MHz |
| Sweep Time Range | 0.4 ms to 1000 s |
| Spurious Free Dynamic Range | >80 dB |
| Display Range | 1 dB/div to 20 dB/div with 10 divisions |
| Trigger | Free run, external |
| DANL | <-142 dBm (0 atten), <-162 dBm (preamp) |
| Zero Span Analyzer | |
| Sweep Time | |
| Range | 24 µs to 200 s |
| Tracking Generator | |
| Output Ports | RF Output Port, RF Duplex Port |
| Level | |
| Range | Same as RF Generator |
| Accuracy | Same as RF Generator |
| I/Q Recorder | |
| Sample | |
| Length | 4 Msamples |
| Rate | Variable to support up to 100 MHz of analog bandwidth |
| Trigger | |
| Trigger Source | Free run |
| AF Generator | |
| Output | |
| Impedance | <4 Ω |
| Max Output Current | 100 mA |
| Frequency | |
| Range | 0 Hz to 100 kHz |
| Resolution | 0.1 Hz |
| Accuracy | Timebase |
| Level | |
| Range | 0 Vpk to ±8 Vpk into 600 Ω |
| Accuracy | ±2% (level >=200 mV and frequency from 20 Hz to 20 kHz) |
| Distortion | |
| THD+N | <-75 dB for frequency 1 kHz and level 1 Vrms |
| AF Composite Signals | Sine, Square, DTMF, DCS, Two-Tone, Tone Remote, Tone Sequential |
| Oscilloscope | |
| Display | |
| Traces | 2 |
| Markers | 6 |
| Horizontal | |
| Sweep per div | 20 µs to 1 s/div |
| Accuracy | <2% |
| Vertical | |
| Range | 0.1 mV/div to 20 V/div |
| Accuracy | <5% |
| Bandwidth | 100 kHz |
| Input Range | 20 mV to 30 Vrms (42.4 Vpk) |
| Coupling | AC, DC |
| Input Impedance |
300 Ω, 600 Ω, 100 kΩ single ended, ±1% shunted by <300 pF 200 kΩ differential, ±8% |
| Trigger | |
| Modes | Single, Normal, Automatic, Free run |
| Digital | |
| Modes | P25, P25 Phase 2 |
| P25 Measurements | |
| Accuracy | |
| Modulation Fidelity | <5% of reading (2.5% to 12%) |
| Symbol Deviation | ±1% |
| Frequency Error | Timebase ±0.5 Hz |
| Symbol Rate Error | Timebase ±0.1 ppm |
Документы
VIAVI CX300 ComXpert Flyer
753.4 Кб
Описание
| Опции | Описание |
| CX300-F6GHZ | 6 GHz Frequency Extension |
| CX300-DP25P1 | P25 Conventional (Phase 1) |
| CX300-DP25P2 | P25 Phase II |
| CX300-TPHXL | Harris XL Series |
| CX300-TPHP25 | Harris P25 Series (P7300, M7300, P5500, XG-75) |
| CX300-TPKV | Kenwood Viking Series |
| CX300-TPMA | Motorola APX Series |
| CX300-TPMA25 | Motorola ASTRO 25 XTS / XTL Series |
| CX300-TPTPM | Tait P25 Series (Test Only) |
| CX300-DDMR | DMR Test Option |
| CX300-DDMRR | DMR Repeater (Requires DMR) |
| CX300-SCAA | Cable and Antenna Analysis (DTF / VSWR / IL / RL) |
| CX300-SPSB | External Power Sensor Support, BirdRF 501xD |
| CX300-SVIP | VIP Tool |
| CX300-SVNA | Vector Network Analyzer (2-port, 1-path) Includes: CX300-SCAA |
| Аксессуары | Описание |
| CX300-AANT1 | Antenna Kit, 1 GHz |
| CX300-ABAT | Internal Battery, 98 Watt-Hour, Lithium-Ion |
| CX300-ACBL | RF Cable for AutoAlignment |
| CX300-ACH | Carrying Case, Hard Transit |
| CX300-ACS | Carrying Case, Soft |
| CX300-ABATC | External Battery Charger |
| CX300-ACB | Carrying Case, Backpack |
| CX300-ACS10 | 10 Amp Current Shunt 0.01 Ohm |
| CX300-ADC | Power Adapter, Automotive DC / DC (Cigarette Lighter) |
| CX300-AGPS | GNSS / GPS SMA Mount Antenna |
| CX300-AMIC | Microphone |
| 20327 | Adapter, N(m) to BNC(f) (Qty 3) |
| 82556 | Attenuator (6 dB / 150 W), 1.5 GHz |
| 140227 | Attenuator (40 dB / 2 W), 18 GHz, Type N |
| 22124982 | Side Strap (Qty 2) |
| 22132331 | Stylus |
| 22136776 | Front Cover |
| 22141588 | Shoulder Strap |
| 22152084 | Desktop Stand |
Модели
| Модели | Описание |
| CX300 | CX300 ComXpert Communications Test Set (3 GHz) |
