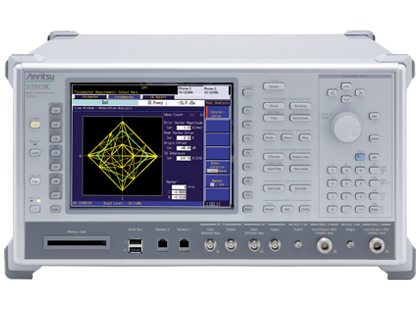

Anritsu MT8820C - тестер, поддерживающий анализ протоколов в диапазоне 30 МГц - 2.7 ГГц (FDD/TDD DL CA, LTE FDD/TDD, W-CDMA/HSPA/HSPA Evolution/DC-HSPA/4C-HSDPA, CDMA2000 1X/1xEV-DO, TD-SCDMA/TD-HSPA/TD-HSDPA Evolution, GSM/GPRS/EGPRS, и PHS/ADVANCED PHS).
Измерительное оборудование Anritsu MT8820C позволяет осуществлять множество различных операций, таких как: контроль фазовой синхронизации, стресс-тест, контроль разряда аккумуляторов LTE терминалов, мониторинг надежности телефонных соединений и стабильности передачи данных.
Кроме того, время предварительных настроек существенно снижено, благодаря интуитивному и легкому в эксплуатации графическому интерфейсу и программному комплексу, позволяющему осуществлять дистанционное управление прибором.
| Frequency Range | 30 MHz to 2.7 GHz(3.4 GHz to 3.8 GHz Option) |
| Interface |
MAIN: RF In/Out (Standard 1 port, max. 2 ports) AUX: RF Out (Standard 1 port, max. 2 ports) |
| System |
- LTE-Advanced DL CA, LTE(FDD/TDD) - WCDMA (HSDPA/HSUPA/HSPA Evolution/DC-HSPA/4C-HSDPA) - GSM (GSM/GPRS/EGPRS) - TD-SCDMA (HSDPA/HSUPA/HSDPA Evolution) - PHS (Advanced PHS) |
| Remote Control | GPIB, Ethernet |
| Опции | Описание |
| MT8820C-017 | Extended RF Hardware |
| MT8820C-001 | W-CDMA Measurement Hardware |
| MT8820C-002 | TDMA Measurement Hardware |
| MT8820C-007 | TD-SCDMA Measurement Hardware |
| MT8820C-008 | LTE Measurement Hardware |
| MT8820C-011 | Audio Board |
| MT8820C-012 | Parallel Phone Measurement Hardware |
| MT8820C-018 | Extended RF 3.4 GHz to 3.8 GHz (requires MT8820C-017, MT8820C-119, or MT8820C-120) |
| MX882000C | W-CDMA Measurement Software (requires MT8820C-001 and MX88205xC) |
| MX882000C-001 | W-CDMA Voice Codec (requires MT8820C-011 and MX882000C) |
| MX882000C-011 | HSDPA Measurement Software (requires MT8820C-001, MX882000C, and MX882050C) |
| MX882000C-013 | HSDPA High Data Rate (requires MT8820C-001, MX882000C, MX882000C-011, and MX882050C) |
| MX882000C-021 | HSUPA Measurement Software (requires MT8820C-001, MX882000C, MX882000C-011, and MX882050C) |
| MX882000C-031 | HSPA Evolution Measurement Software (requires MT8820C-001, MX882000C, MX882000C-011, MX882000C-021, and MX882050C) |
| MX882000C-032 | DC-HSDPA Measurement Software (requires MT8820C-001 (2 sets), MT8820C-012, MX882000C, MX882000C-011, MX882000C-021, MX882000C-031, MX882010C, and MX882050C) |
| MX882000C-033 | DC-HSUPA Measurement Software (requires MT8820C-001 (2 sets), MT8820C-012, MX882000C, MX882000C-011, MX882000C-021, MX882000C-031, MX882000C-032, MX882010C, MX882050C) |
| MX882000C-034 | 4C-HSDPA Measurement Software (requires MT8820C-001 (2 sets), MT8820C-012, MX882000C, MX882000C-011, MX882000C-021, MX882000C-031, MX882000C-032, MX882010C, MX882050C) |
| MX882001C | GSM Measurement Software (requires MT8820C-002) |
| MX882001C-001 | GSM Voice Codec (requires MT8820C-011 and MX882001C) |
| MX882001C-002 | GSM External Packet Data (requires MX882001C) |
| MX882001C-011 | EGPRS Measurement Software (requires MX882001C) |
| MX882001C-041 | GSM High-speed Adjustment (requires MX882001C) |
| MX882005C | PHS Measurement Software (requires MT8820C-002) |
| MX882005C-011 | Advanced PHS Measurement Software (requires MX882005C) |
| MX882007C | TD-SCDMA Measurement Software (requires MT8820C-001 and MT8820C-007) |
| MX882007C-001 | TD-SCDMA Voice Codec (requires MT8820C-011 and MX882007C) |
| MX882007C-003 | TD-SCDMA Video Phone Test (requires MX882007C) |
| MX882007C-011 | TD-SCDMA HSDPA Measurement Software (requires MT8820C-001, MT8820C-007, and MX882007C) |
| MX882007C-012 | TD-SCDMA HSDPA Evolution Measurement Software (requires MT8820C-001, MT8820C-007, MX882007C, MX882007C-011) |
| MX882007C-021 | TD-SCDMA HSUPA Measurement Software (requires MT8820C-001, MT8820C-007, MX882007C, MX882007C-011) |
| Модели | Описание |
| MT8820C | Radio Communication Analyzer |
