Имитатор синфазных помех

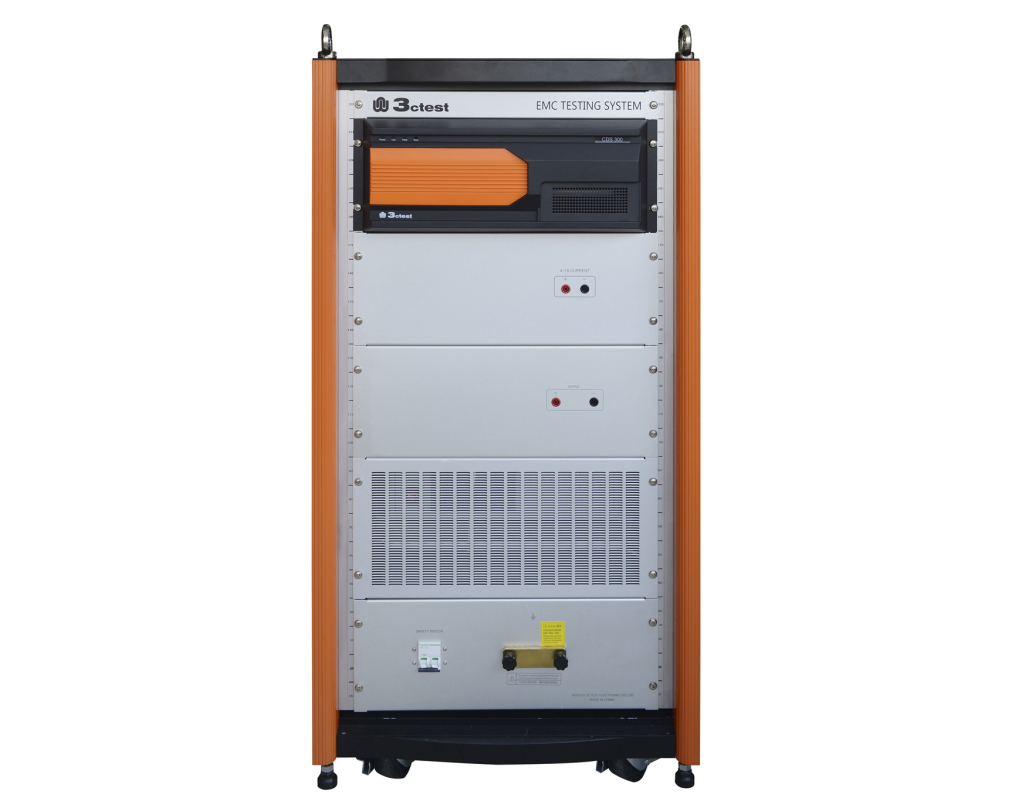

3ctest CDS 300
3ctest CDS 300
Подробнее
Описание
Имитатор синфазных помех CDS 300 может управляться программным обеспечением CoreLab для проведения различных функциональных испытаний в диапазоне частот от 0 Гц (постоянный ток) до 165 кГц, напряжением до 300 В. Он может проводить испытания в непрерывном режиме и кратковременный режим при частоте сети постоянного тока, 162/3, 50 Гц и 60 Гц в соответствии с IEC/EN 61000-4-16 и проведение ступенчатых испытаний от 10 Гц до 165 Гц. Кроме того, он удовлетворяет требованиям к испытаниям, указанным в IEC 61000-4-19, IEC/EN 60255-22-7 и JJF 1245.4-2019.
Вместе с различными дополнительными аксессуарами каждый тест можно проводить в соответствии с различными стандартными требованиями.
Особенности:
- Универсальный дизайн
- Диапазон частот DC~165 кГц
- Испытательное напряжение до 30 В в диапазоне частот от 10 Гц до 165 кГц
- Испытательное напряжение до 300 В при промышленной частоте постоянного тока, 162/3 Гц, 50 Гц, 60 Гц
- Шаг частоты: линейный, логарифмический или фиксированный
- ПО CoreLab упрощает работу
Стандарты:
- IEC 60255-22-7
- GB/T 14598.19
- IEC 61000 - 4 -19
- IEC 61000- 4-16
- EN 61000-4-16
- EN 61000-4-19
- EN 60255-22-7
- JJF 1245.4-2019
Характеристики
| Technical Parameters in continuous mode | ||
| Power Frequency | DC, 162/3 Hz, 50 Hz, 60 Hz | |
| Open Circuit Voltage | 1 V ~ 30 V | |
| Signal Level | （0.1-30）V (r.m.s.) or DC | |
| Test Level 1 | 1 V, continuous | |
| Test Level 2 | 3 V, continuous | |
| Test Level 3 | 10 V, continuous | |
| Test Level 4 | 30 V, continuous | |
| Output Impedance | 50 W±10% | |
| Total Harmonic Distortion | <10%(sinusoidal) | |
| DC Ripple | <5% | |
| Technical Parameters in short-term mode | ||
| Power Frequency | DC, 162/3 Hz, 50 Hz, 60 Hz | |
| Open Circuit Voltage | 10 V ~330 V | |
| Signal Level | （1~330）V (r.m.s.) or DC | |
| Test Level 1 | 10 V, continuous for 1 s | |
| Test Level 2 | 30 V, continuous for 1 s | |
| Test Level 3 | 100 V, continuous for 1 s | |
| Test Level 4 | 300 V, continuous for 1 s | |
| Output Impedance | 50 W±10% | |
| Total Harmonic Distortion | <10%(sinusoidal) | |
| Phase Sync | 0°±5% | |
| DC Ripple | < 5% | |
| Fall/Rise Time | 1 μs-5 μs | |
| Technical Parameters in 15 kHz-165 kHz | ||
| Power Frequency | 10 Hz-165 kHz | |
| Signal Level | （0.1-30）V (r.m.s.) | |
| Test Level 1 | 1 V-0.1 V-1 V | |
| Test Level 2 | 3 V-0.3 V-3 V | |
| Test Level 3 | 10 V-1 V-10 V | |
| Test Level 4 | 30 V-3 V-30 V | |
| Output Impedance | 50 W±10% | |
| Total Harmonic Distortion | <1%(sinusoidal) | |
| Technical Parameters in Differential Mode Voltage Disturbances | ||
| Frequency Range | 2 kHz~150 kHz | |
| Waveform | Sinusoidal, Total Harmonic Distortion (THD) <5% | |
| Open Circuit Voltage | 0.1 V ~20 V | |
| Load Impedance | 10 Ω, ±30% | |
| Technical Parameters in Differential Mode Current Disturbances | ||
| Frequency Range | 2 kHz~150 kHz | |
| Max. Current | 5 A | |
| Load Impedance | 1 Ω, ±0.3 Ω | |
| BNC output | 10:1（0.1 V/A） | |
| General Parameters | ||
| Power Supply | AC 110/220 V, ±10%,45 Hz~65 Hz | |
| Ambient Temperature | 15 ℃ ~ 35 ℃ | |
| Dimension | 22U | |
| Weight | Approx. 100 kg | |
Описание
| Accessories | |
| User Manual, Testing line, Fuse, ground line, RF cable, network cable, power line | |
| Options | |
| Coupling Networks CN416M2/M3-32 |
EUT voltage: single-phase 2-line or 3-line, 32 A, 250 V AC/DC Test voltage: DC-300V Frequency: DC（162/3 Hz, 50 Hz, 60 Hz）2 kHz~150 kHz |
| Coupling Networks CN416M4N-32 |
EUT voltage: three-phase 4-line, 32 A, L-PE 250 V AC/DC Test voltage: DC-300 V Frequency: DC（162/3 Hz, 50 Hz, 60 Hz） 2 kHz~150 kHz |
| Coupling Networks CN416M5-32 |
EUT voltage: three-phase 5-line, 32 A, L-PE 250 V AC/DC Test voltage: DC-300 V Frequency: DC（162/3 Hz, 50 Hz, 60 Hz）2 kHz~150 kHz |
| Coupling/ decoupling Networks CDN416T2 |
Frequency range: 2 kHz ~150 kHz, lines: 2, Max. current: 0.5 A, Max. voltage: AC 150 V DC 200 V，joint: terminal block |
| Coupling/ decoupling Networks CDN416T4 |
Frequency range: 2 kHz ~ 150 kHz, Number of lines: 4 Max. current: 0.5 A, Max. voltage: AC 150 V DC 200 V, joint: terminal block |
| Coupling/ decoupling Networks CDN416T8 |
Frequency range: 2 kHz ~ 150 kHz, Number of lines: 8, Max. current: 0.5 A，Max. voltage: AC 150 V DC 200 V，joint: terminal block |
| Isolation transformer | Used in conducting test as per IEC/EN 61000-4-16 for coupling and decoupling function. Users need to consult detailed model number according to the power consumption of 1-phase or 3-phase power. |
| CoreLab PC Control Software | Support Windows 7 and above; easy to use; clean and beautiful UI; with powerful operating function and standard test library, customized automatic testing configuration can be realized; generating test reports flexibly. |
| Coupling/decoupling Networks CDN419M3-32 |
EUT voltage: single-phase 3-line, 32 A, 250 V AC/DC Frequency: 2 kHz~150 kHz |
| Coupling/decoupling Networks CDN419M4N-32 |
EUT voltage: three-phase 4-line, 32 A, line-to-ground, 250 V AC/DC Frequency: 2 kHz~150 kHz |
| Differential-mode Current Test Module WCT 20 |
Frequency:2 kHz ~ 150 kHz Max. Current: 5 A Max. Voltage: ＜22 V Impedance: 1 Ω±0.3 Ω |
| Differential-mode Voltage Test Module R419-10 | 10 Ω |
| Balanced / unbalanced impedance converter Balun50/10 |
Characteristic impedance: 50 Ω / 10 Ω; Frequency: 2 kHz~150 kHz; Max input voltage (Vpp): 400 V; |
| Coupling Networks CN14598-19 |
EUT voltage: Max. 250 V AC EUT current: Max. 32 A |
| Differential-mode Voltage Test Module RJJF-100 | 100 Ω |
