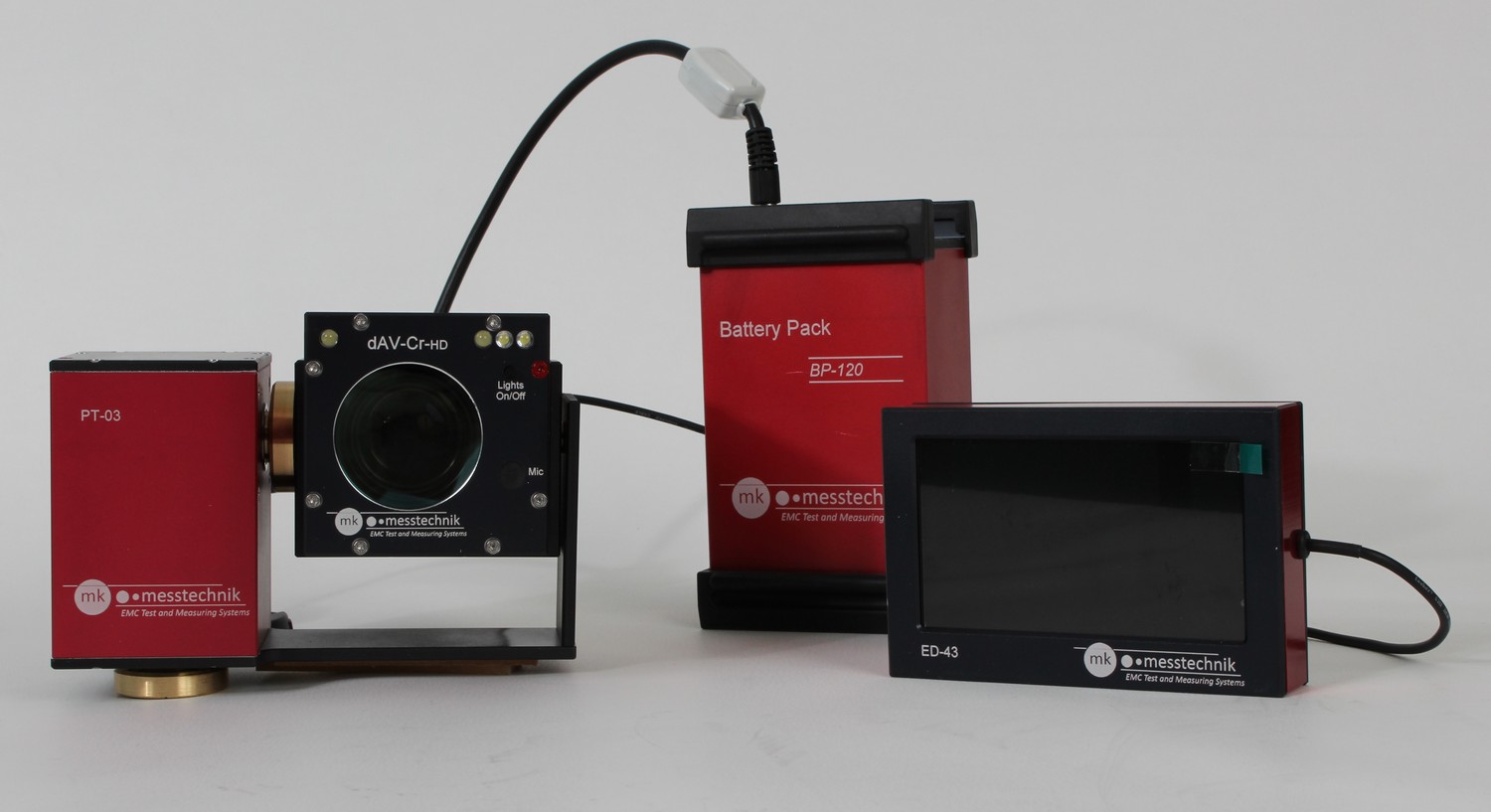

Камера dAV-Cr-HD
Подробнее
Описание
Камера dAV-Cr-HD может использоваться для оптического и акустического мониторинга устройств, тестируемых во время измерений EMC. Она имеет встроенный мономикрофон и может быть установлена через внешний ЖК-дисплей и восемь кнопок на корпусе или через пульт дистанционного управления из диспетчерской. Благодаря HD-разрешению можно осуществлять высококачественное наблюдение DUT. Благодаря оптической коробке передач и экранированному корпусу камера хорошо оснащена для испытаний EMI и EME.
Система камер dAV-Cr-HD (r = пульт дистанционного управления) по умолчанию оснащена опцией дистанционного управления. Поэтому все настройки и функции можно управлять через приемник dAV-Rr (dAV-R с опцией -r).
Характеристики
| General data | image sensor: 1/2,8”, Full-HD resolution (1920x1080) |
| zoom: 20x optical, 12x digital | |
| 55,4° (wide end) to 2,9° (tele end) angle of view | |
| 0,5 lux minimum illumination | |
| Optical transmission | digital, remote and signal on one fiber (FSMA multimode, 62,5/125µm) |
| Microphone | integrated, mono |
| Power supply | external, battery pack (2 included) or shielded power supply (110V-230V) for wall mount application |
| Case dimensions | ~135mm x 70mm x 80mm incl. connectors and switches, aluminum case |
| Weight | approx. 650g |
| Mounting | 1/4” tripod socket at case bottom, other threads available |
| Misc. | remote control of all camera functions and optional pan- / tilt unit set-up display for easy adjustment of camera LED lights for short range illumination different types of receivers (dAV-Rr-HD) with options available (up to 6 channels in 19” 2HU, 3HU switch matrix with up to 16 channels) robust against EMS up to 200V/m and 18GHz |
| Available options |

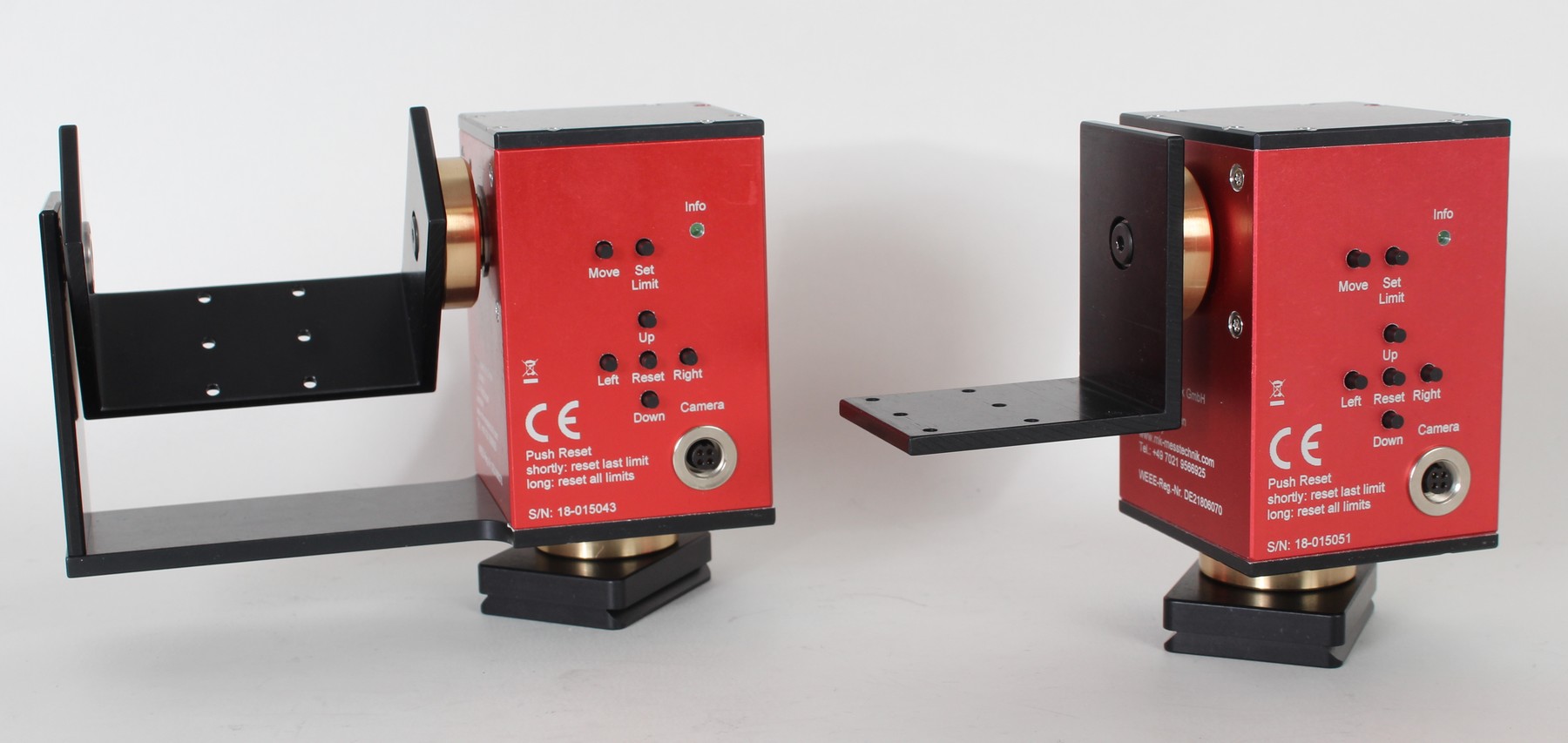

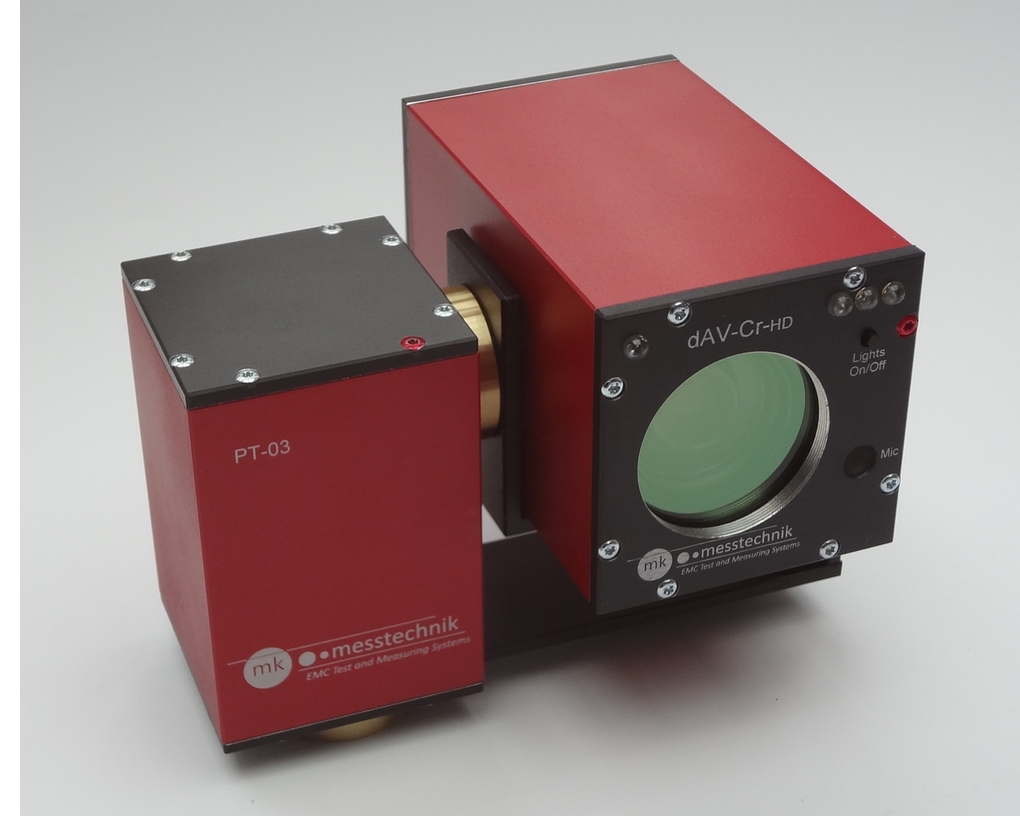

pan- / tilt unit (PT-02 or PT-03) 30x zoom (for large ALC and wall mount application) High RF shielding >200V/m up to 40GHz (option -HiRF) |
Документы
mk-messtechnik dAV-C Overview
484.4 Кб
Описание
| Наименование | Описание |
| Camera control software ccs | For the remote control via software, with GUI (cominterface nexessary). In order to use this software, the camera receiver is connected to a PC via USB (built into all receivers) or ethernet (optional) |
| Remote control via software | With Ethernet-GUI (option -ethernet remote) |
| On Screen Display | OSD, display of DUT-data in video stream, cominterface and drivers for your HF software necessary |
| 30x zoom for HD-Kameras | e.g. for large EMC chambers |
| Wide angle and close-up lens | lens |
| ST optical connectors | connectors |
| External remote control for dAV-Rrc-Joy and dAV-Rrc-Joy-matrix | External remote control for dAV-Rrc-Joy and dAV-Rrc-Joy-matrix for all functions of the camera and the multichannel receiver. Up to 8 and 16 cameras can be addressed directly by pushbuttons, the connected pan/tilt units can be controlled with the joystick. Twist the joystick to zoom with the camera (tele/wide), push forward and backward for moving the pan/tilt in the y-axis, turn left or right for the x-axis. The dAV-Rrc-Joy is supplied by the remote connector of the receiver, no additional power supply is necessary. |
| Option -HiRF | With the option -HiRF, camera and pan/tilt unit are fit for very high field strengths and frequencies. The devices are equipped with additional screws and special cables for a high immunity: >> 600V/m up to 40GHz. |
| Power supply | External battery pack BP120-5f AND/OR Shielded external power supply SPS120 for wall mount setups (230V and 110 V available) |
