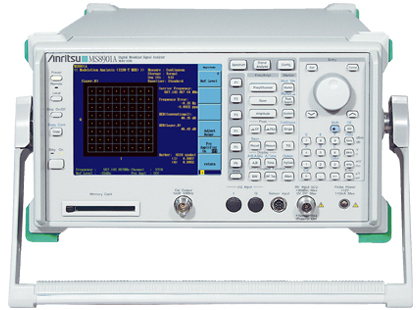

Тестер радиопередатчиков Anritsu MS8609A с диапазоном частот от 9 кГц до 13,2 ГГц
Замена: Anritsu MS2690A , MS2691A , MS2692A
Замена: Anritsu MS2830A
Замена: Anritsu MS2690A , MS2691A , MS2692A
Замена: Anritsu MS2830A
Подробнее
Описание
MS8609A - это тестер радиопередатчиков, оснащенный встроенным анализатором спектра, анализатором модуляции и измерителем мощности. С помощью всего лишь одного прибора вы сможете выполнить все задачи связанные с разработкой, производством и обслуживанием базовых и подвижных станций.
Диапазон частот MS8609A от 9 кГц до 13,2 ГГц, входной уровень по напряжению до +20 дБм.
Развертка полосы пропускания анализатора спектра до 20 МГц, означает что прибор имеет возможность измерять широкополосные сигналы. Анализатор модуляции осуществляет векторный анализ через высокоскоростной DSP (цифровой процессор сигналов). Измеритель мощности обеспечивает высокую точность измерений на уровне ±0,4 дБ. Возможность установки трех пакетов ПО одновременно (для анализа W-CDMA, GSM/EDGE, HSDPA, WLAN/802.11, CDMA, 1xEVDO).
Каждый прибор по желанию может быть оснащен интерфейсами GPIB, RS-232C и 10BASE-T Ethernet для удаленного подключения.
Возможности:
- диапазон частот: MS8609A - от 9 кГц до 13,2 ГГц;
- небольшая, прочная конструкция весом 16 кг;
- максимальный уровень входного сигнала +20 дБм MS8609A;
- встроенный анализатор спектра;
- разрешение полосы пропускания от 300 Гц до 20 МГц (>3,0 ГГц);
- широкий динамический диапазон (68 дБ для 5 МГц, 75 дБ для 10 МГц);
- ширина полосы пропускания приёмника от 1 Гц до 100 Гц (опция).
Характеристики
| Характеристика | Значение | |
| Frequency range | 9 kHz to 13.2 GHz | |
| Max. input level | +20 dBm (100 mW), continuous average power, DC input: 0 Vdc | |
| Input impedance |
Power meter 50 Ω, VSWR: ≤1.3 (30 MHz to 3 GHz) Except power meter 50 Ω, VSWR: ≤1.5 (input attenuator: ≥4 dB, ≤3 GHz)/ ≤2.3 (input attenuator: ≥10 dB, >3 GHz) |
|
| Input connector | N-type | |
| Reference oscillator |
Frequency: 10 MHz Starting characteristics: ≤5 x 10–8 (after 10 minute warm-up, compared to frequency after 24 hour warm-up) Aging rate: ≤2 x 10–8/day, ≤1 x 10–7/ year (compared to frequency after 24 hour warm-up) Temperature characteristics: ±5 x 10–8 (0˚ to 50˚C, compared to frequency at 25˚C) |
|
| Power meter | Frequency range: 30 MHz to 3 GHz, Level range: –20 to +20 dBm, Measurement accuracy (after zero calibration): ±10% | |
| Spectrum analyzer | Frequency |
Frequency setting Setting range: 9 kHz to 13.2 GHz, Pre-selector range: 3.15 to 13.2 GHz (Band 1 and 2) Frequency accuracy Accuracy: ± (display frequency x reference frequency accuracy + span x span accuracy + resolution bandwidth × 0.15 + 10 × N Hz) ∗N: Mixer harmonic order Normal marker: Same as display frequency accuracy Delta marker: Same as span accuracy Frequency span setting range: 0 Hz, 5 kHz to 13.2 GHz Span accuracy: ±1.0% (at single band sweep, number of data points: 1001) RBW (resolution bandwidth) Setting range: 300 Hz to 3 MHz (1-3 sequence), 5 MHz, 10 MHz, 20 MHz (Band 0) Accuracy: ±20% (300 Hz to 10 MHz), ±40% (20 MHz) Selectivity (60 dB: 3 dB): ≤15:1 VBW (video bandwidth): 1 Hz to 3 MHz (1-3 sequence), off Sideband noise: ≤–108 dBc/Hz (1 GHz, 10 kHz offset), ≤–120 dBc/Hz (1 GHz, 100 kHz offset) |
| Amplitude |
Maximum input level Continuous average power: +20 dBm, DC voltage: 0 V Average noise level (RBW: 300 Hz, VBW: 1 Hz): [Without Option 08] ≤–124 dBm + 1.5 x f [GHz] dB (1 MHz to 2.5 GHz, Band 0) ≤–120 dBm + 1.5 x f [GHz] dB (2.5 to 3.2 GHz, Band 0) ≤–116 dBm (3.15 to 7.8 GHz, Band 1) ≤–107 dBm (7.7 to 13.2 GHz, Band 2) [With Option 08] ≤–122 dBm + 1.8 x f [GHz] dB (1 MHz to 2.5 GHz, Band 0) ≤–120 dBm + 1.8 x f [GHz] dB (2.5 to 3.2 GHz, Band 0) ≤–116 dBm (3.15 to 7.8 GHz, Band 1) ≤–107 dBm (7.7 to 13.2 GHz, Band 2) Residual response: ≤–100 dBm (1 MHz to 3.2 GHz, Band 0), ≤–90 dBm (3.15 to 7.8 GHz, Band 1) Reference level Setting range: –100 to +30 dBm Accuracy: ±0.75 dB (+0.1 to 20 dBm), ±0.5 dB (–49.9 to 0 dBm), ±0.75 dB (–69.9 to –50 dBm), ±1.5 dB (–80 to –70 dBm) ∗After calibration, frequency: 50 MHz, span: 1 MHz (Input attenuator, RBW, VBW and sweep time are set to AUTO.) RBW Switching uncertainty: ±0.3 dB (300 Hz to 5 MHz), ±0.5 dB (10, 20 MHz) ∗After calibration, with RBW 3 kHz referenced Input attenuator: 0 to 62 dB (2 dB steps) Switching uncertainty: ±0.3 dB (10 to 50 dB), ±0.5 dB (52 to 62 dB) ∗After calibration, with 50 MHz, RF ATT 10 dB referenced Frequency response: ±0.6 dB (9 kHz to 3.2 GHz, Band 0), ±1.5 dB (3.15 to 7.8 GHz, Band 1∗1), ±2.0 dB (7.7 to 13.2 GHz, Band 2∗1) Log linearity: ±0.4 dB (0 to –20 dB, RBW: ≤1 kHz), ±1.0 dB (0 to –90 dB, RBW: ≤1 kHz) 2nd harmonic distortion: ≤–60 dBc (10 to 200 MHz), ≤–75 dBc (200 to 850 MHz, Band 0), ≤–70 dBc (0.85 to 1.6 GHz, Band 0), ≤–90 dBc (1.6 to 6.6 GHz, Band 1 and 2) Two-tone 3rd order distortion: ≤–70 dBc (10 to 100 MHz), ≤–85 dBc (0.1 to 3.2 GHz), ≤–80 dBc (3.15 to 7.8 GHz), ≤–75 dBc (7.7 to 13.2 GHz) ∗Frequency difference of two signals: ≥50 kHz, mixer input: –30 dBm 1 dB gain compression: ≥0 dBm (≥100 MHz), ≥+3 dBm (≥500 MHz, Band 0), ≥–3 dBm (≥3150 MHz, Band 1 and 2) |
|
| Spectrum analyzer | Sweep |
Setting range: 10 ms to 1000 s (frequency axis sweep), 1 µs to 1000 s (time axis sweep) Trigger switch: Free-run, triggered Trigger source: Wide IF video, Line, External (TTL level), External (±10 V) Trigger delay Pre-trigger range: –time span to 0 s Resolution: time span/500 or 100 ns, whichever larger Post trigger: 0 µs to 65.5 ms Resolution: 100 ns (sweep time: ≤4.9 ms), 1 µs (sweep time: ≥5 ms) Gate sweep mode Gate delay range: 0 to 65.5 ms (resolution: 1 µs), Gate length range: 2 µs to 65.5 ms (resolution: 1 µs) |
| Functions |
Number of data points: 501, 1001 Detection modes: Normal, Positive peak, Negative peak, Sample, Average, RMS (Option 04) Display functions: Trace A, Trace B, Trace A/B, Trace A/BG, Trace A/Time Storage functions: Normal, View, Max hold, Min hold, Average, Linear average, Cumulative, Overwrite Markers Signal search: Auto tune, Peak → CF, Peak → Ref, Scroll Zone markers: Normal, Delta Marker function: Marker → CF, Marker → Ref, Marker → CF step size, Δ marker → Span, Zone → Span Peak search: Peak, Next peak, Min dip, Next dip Multi-marker: 10 max. Measurements Noise power: dBm/Hz, dBm/ch, dBµ√Hz C/N: dBc/Hz, dBc/ch Frequency counter Resolution: 1 Hz, 10 Hz, 100 Hz, 1 kHz Measurement accuracy: ± (display frequency x reference frequency accuracy + 2 x N Hz + 1 LSB) ∗At S/N ≥20 dB and RBW ≤3 MHz, N: Mixer harmonic order Occupied bandwidth: Power N% method, X-dB down method Adjacent channel power Reference measurement: Total power, reference level, in-band method Display methods: Channel specified display (3 channels × 2), graphic display Average power of burst signal: Average power within specified time range of time domain waveform Template comparison measurement (time sweep): Upper limit × 2, lower limit × 2 Mask measurement (frequency sweep): Upper limit × 2, lower limit × 2 |
|
| Others |
Display: Color TFT-LCD, VGA 6.5 inch Hard copy: Hard copy of screen via parallel interface (ESC/P compatible printer) Memory card interface: ATA flash card (3.3/5 V) GPIB: Can be controlled from external controller (except power switch) when specified as device Interface functions: SH1, AH1, T6, L4, SR1, RL1, PP0, DC1, DT1, C0, E2 Parallel interface: Centronics printer I/F, D-sub 25-pin connector (female) Video output: Analog RGB output, D-sub 15-pin connector (female) |
|
| Dimensions and mass |
320 (W) × 177 (H) × 411 (D) mm (except handle, feet, front cover and fan cover), ≤16 kg (nominal) |
|
| Power | 100 to 120/200 to 240 Vac (–15/+10%, max. voltage: 250 V, automatic voltage selection), 47.5 to 63 Hz, ≤400 VA | |
| Operating temperature and humidity | 0˚ to +50˚C, ≤85% (no condensation) | |
| EMC | EN61326: 1997/A2: 2001 (Class A), EN61000-3-2: 2000 (Class A), EN61326: 1997/A2: 2001 (Annex A) | |
| LVD | EN61010-1: 2001 (Pollution Degree 2) | |
